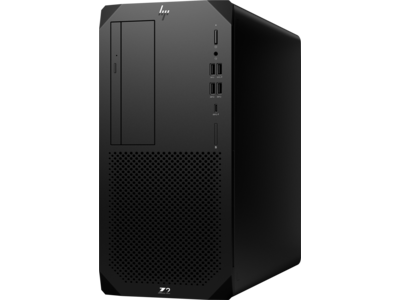

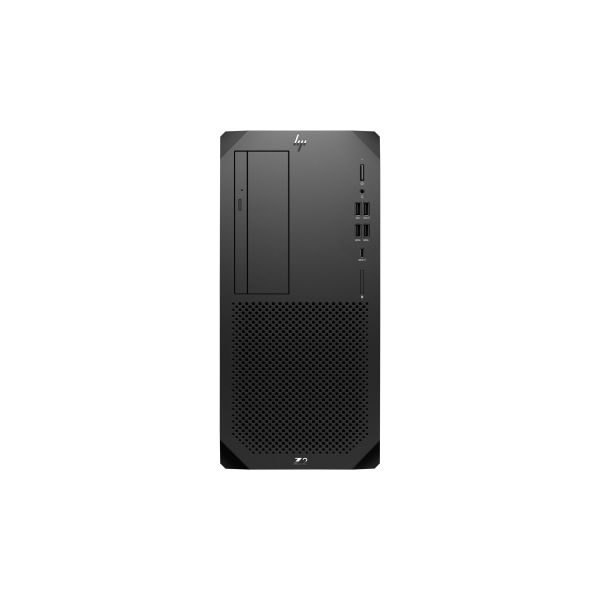

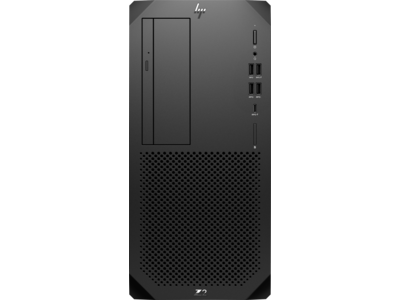

HP Workstation Z2 G9
The Z2 Tower is engineered to seamlessly run multi-threaded apps for fast rendering, simulation, and now real-time ray tracing. And when your demands change, you have expandability to upgrade. Experience a whole new level of performance for your professional workflow. The Z2 Tower is engineered to seamlessly run multi-threaded apps for fast rendering, simulation, and now real-time ray tracing. And when your demands change, you have impressive expandability to upgrade.
- Your new benchmark for entry workstation power: Designed for zero throttling so you can render, simulate, and real-time ray trace without overheating or lags.
- Built to expand. Power to grow: With room to expand and tool-less access, you can easily upgrade and add components as your needs evolve.
- ISV Certified: Work with confidence knowing your PC is certified with leading software applications to ensure peak performance | 1
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | HP Workstation Z2 G9 - AI Workstation - tower 4U - 1 x Core i9 i9-14900K / up to 6 GHz - RAM 64 GB - SSD 2 TB - HP Z Turbo Drive, NVMe, TLC - T1000 - Gigabit Ethernet - Win 11 Pro - monitor: none - keyboard: US - black - with HP Wolf Pro Security Edition (1 year) |
| Manufacturer | HP, Inc. |
| UNSPSC | 43211507 |
| Main Specifications | |
| A/V Interface Type | PCI Express 3.0 x16 |
| Chassis / Form Factor | Tower |
| Dimensions & Weight / Depth | 38.5 cm |
| Dimensions & Weight / Height | 35.6 cm |
| Dimensions & Weight / Weight | 6.2 kg |
| Dimensions & Weight / Width | 16.9 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 2 TB |
| Hard Drive / Interface | PCI Express 4.0 |
| Hard Drive / Interface Type | PCI Express 4.0 |
| Header / Brand | HP |
| Header / Country Kits | United States |
| Header / Localization | English |
| Mainboard / Chipset Type | Intel W680 |
| Mainboard / Processor Socket | LGA1700 Socket |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | Windows 11 Pro |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 3.2 GHz |
| Processor / Generation | 14 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 24-core |
| Processor / Processor Number | I9-14900K |
| Processor / Type | Core i9 |
| RAM / Data Integrity Check | ECC |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Memory Speed | 2400 MHz |
| RAM / Technology | DDR5 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 2 TB |
| System / Type | Workstation |
| Video Memory / Technology | GDDR6 SDRAM |
| Video Output / Graphics Processor | NVIDIA T1000 / Intel UHD Graphics 770 |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Cache Memory | |
| Cache Per Processor | 36 MB |
| Installed Size | L3 cache - 36 MB |
| Dimensions & Weight | |
| Depth | 38.5 cm |
| Height | 35.6 cm |
| Weight | 6.2 kg |
| Width | 16.9 cm |
| Dimensions & Weight (JTFpping) | |
| JTFpping Depth | 49 cm |
| JTFpping Height | 51.8 cm |
| JTFpping Width | 29.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 85% RH (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
| Bays |
|
| Interfaces |
|
| Slots |
|
| General | |
| AI Level | AI Workstation |
| Bundled with | HP Wolf Pro Security Edition (1 year) |
| Color | Black |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Localization | Language: English / region: United States |
| Product Form Factor | Tower - 4U |
| Sensors | HP Tamper Lock |
| Type | Workstation |
| Graphics Controller | |
| Bandwidth | 160 GBps |
| Graphics Processor | NVIDIA T1000 / Intel UHD Graphics 770 |
| Interface Type | PCIe 3.0 x16 |
| Multi-GPU Configuration | 1 single GPU card / integrated GPU |
| Video Interfaces | DisplayPort |
| Video Memory | 4 GB GDDR6 SDRAM |
| Hard Drive | |
| Capacity | 1 x 2 TB |
| Features | HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC) |
| Interface Type | PCI Express 4.0 |
| Type | SSD - M.2 |
| Input Device | |
| Type | Mouse, keyboard |
| Keyboard | |
| Keyboard Name | HP 320K |
| Localization & Layout | US |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Compliant Standards | RoHS, FIPS 140-2, WEEE, Energy-Related Products (ErP) Lot 6, CECP, SEPA, low halogen, ISV Certified |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop, chassis intrusion sensor |
| Monitor | |
| Monitor Type | None. |
| Mouse | |
| Mouse Name | HP 320M |
| Networking | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1as, IEEE 802.3az |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet Controller | Intel I219-LM |
| Features | Wake on LAN (WoL), ACPI support, auto-uplink (auto MDI/MDI-X), Intel Active Management Technology (AMT), PXE 2.1 support |
| Operating System / Software | |
| OS Provided | Windows 11 Pro English |
| Software | HP Support Assistant, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP BIOS Configuration Utility (free download), HP Driver Packs, HP Image Assistant, HP PC Hardware Diagnostics, HP System Software Manager (free download), HP Sure Click, HP Manageability Integration Kit, HP Sure Admin, HP Client Security Manager Gen6, HP BIOSphere Gen6, HP ZCentral Remote Boost, HP Sure Recover Gen4, HP Management Integration Kit for Microsoft System Center Configuration Manager Gen 4, HP Performance Advisor 3.0, HP Sure Sense Gen2, HP Sure Run Gen5, HP Sure Start Gen7 |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Device Type | Power supply |
| Efficiency | 92% |
| Power Factor Correction | Yes (active) |
| Power Provided | 700 watt |
| Voltage Required | AC 90-269 V (50/60 Hz) |
| Processor / Chipset | |
| Chipset Type | Intel W680 |
| Clock Speed | 3.2 GHz (P-core) / 2.4 GHz (E-core) |
| CPU | Intel Core i9 (14th Gen) i9-14900K |
| CPU Qty | 1 |
| CPU Socket | LGA1700 Socket |
| CPU Upgradability | Upgradable |
| L2 cache | 32 MB |
| Max CPU Qty | 1 |
| Max Turbo Speed | 6 GHz (P-core) / 4.4 GHz (E-core) |
| Number of Cores | 24-core |
| Processor Main Features | Intel Turbo Boost Technology |
| RAM | |
| Configuration Features | 2 x 32 GB |
| Effective Memory Speed | 2400 MHz |
| Form Factor | DIMM 288-pin |
| Installed Size | 64 GB (installed) / 128 GB (max) |
| Rated Memory Speed | 2400 MHz |
| Slots | 4 (total) / 2 (empty) |
| Technology | DDR5 SDRAM - ECC |
| Storage Controller | |
| Channel Qty | 4 |
| Controller Interface Type | SATA 6Gb/s / PCIe 4.0 x4 (NVMe) |
| RAID Level | RAID 0, RAID 1 |
| Type | 1 x SATA/NVMe |
| Sustainability Information | |
| Carbon Footprint | 610 kg carbon emissions |
| EOL (kg CO2e) | 3 |
| Logistics (kg CO2e) | 2 |
| Manufacturing (kg CO2e) | 242 |
| Total Carbon w/o Use Phase (kg CO2e) | 248 |
| Use (kg CO2e) | 362 |
