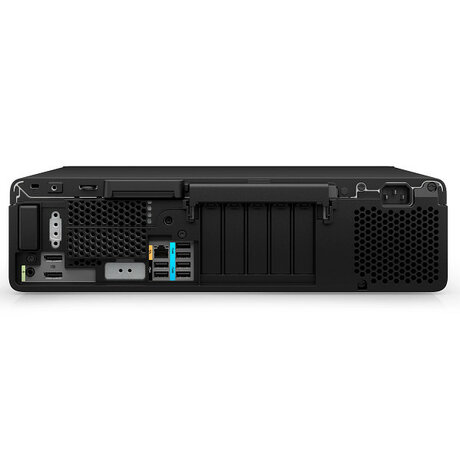

HP Workstation Z2 G9
Get all the power of a full size tower at a fraction of the size. Re-engineered to fit full-height, full-length graphics while leaving room for upgrades and expansion, the Z2 SFF delivers high performance for your intensive workflow-from 3D design to real time ray tracing-now and in the future.
- Full height, full length performance: Design, simulate and real time ray trace on a Z SFF -- FHFL pro graphics and Intel | ® | Core | ™ | processors.
- Configurable for today. Expandable for tomorrow.: Accelerate your current workflow with options across processor, graphics, memory, storage, and I/O ports.
- ISV Certified: Work with confidence knowing your PC is certified with leading software applications to ensure peak performance. | 1
- Security is your top priority: The HP Wolf Pro Security Edition provides preconfigured enterprise-level PC protection for small and medium sized businesses.
- Smaller, Functional Design: The stunning new design features front and rear ledges, so you can easily move your system from location to location.
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | HP Workstation Z2 G9 - AI Workstation - SFF 1 x Core i9 i9-14900 / up to 5.8 GHz - RAM 32 GB - SSD 1 TB - HP Z Turbo Drive, NVMe, TLC - UHD Graphics 770 - Gigabit Ethernet - Win 11 Pro - monitor: none - keyboard: US - black - Smart Buy - with HP 1 year Wolf Pro Security Edition Service - with HP Wolf Pro Security Edition (1 year) |
| Manufacturer | HP, Inc. |
| UNSPSC | 43211507 |
| Main Specifications | |
| Chassis / Form Factor | Small form factor |
| Dimensions & Weight / Depth | 30.8 cm |
| Dimensions & Weight / Height | 10 cm |
| Dimensions & Weight / Weight | 5 kg |
| Dimensions & Weight / Width | 38.4 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 1 TB |
| Hard Drive / Interface | PCI Express 4.0 |
| Hard Drive / Interface Type | PCI Express 4.0 |
| Header / Brand | HP |
| Header / Country Kits | United States |
| Header / Localization | English |
| Mainboard / Chipset Type | Intel W680 |
| Mainboard / Processor Socket | LGA1700 Socket |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | Windows 11 Pro |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 2 GHz |
| Processor / Generation | 14 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 24-core |
| Processor / Processor Number | I9-14900 |
| Processor / Type | Core i9 |
| RAM / Data Integrity Check | Non-ECC |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Memory Speed | 4800 MHz |
| RAM / Technology | DDR5 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 1 TB |
| System / Type | Workstation |
| Video Output / Graphics Processor | Intel UHD Graphics 770 |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Cache Memory | |
| Cache Per Processor | 36 MB |
| Installed Size | L3 cache - 36 MB |
| Dimensions & Weight | |
| Depth | 30.8 cm |
| Height | 10 cm |
| Weight | 5 kg |
| Width | 38.4 cm |
| Dimensions & Weight (JTFpping) | |
| JTFpping Depth | 49 cm |
| JTFpping Height | 51.4 cm |
| JTFpping Weight | 5.9 kg |
| JTFpping Width | 19.9 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 85% RH (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
| Bays |
|
| Interfaces |
|
| Slots |
|
| General | |
| AI Level | AI Workstation |
| Built-in Devices | Speaker |
| Bundled Services | HP 1 year Wolf Pro Security Edition Service |
| Bundled with | HP Wolf Pro Security Edition (1 year) |
| Color | Black |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Localization | Language: English / region: United States |
| Product Form Factor | SFF |
| Type | Workstation |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics 770 Unified Memory Architecture (UMA) |
| Video Interfaces | DisplayPort |
| Hard Drive | |
| Capacity | 1 x 1 TB |
| Features | HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC) |
| Interface Type | PCI Express 4.0 |
| Type | SSD - M.2 2280 |
| Input Device | |
| Type | Mouse, keyboard |
| Keyboard | |
| Interface | USB |
| Keyboard Name | HP 320K |
| Localization & Layout | US |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Compliant Standards | RoHS, FIPS 140-2, WEEE, CECP, low halogen, ISV Certified |
| Manufacturer Selling Program | HP Smart Buy |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop |
| Monitor | |
| Monitor Type | None. |
| Mouse | |
| Mouse Name | HP 320M |
| Networking | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1as, IEEE 802.3az |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet Controller | Intel I219-LM |
| Features | Wake on LAN (WoL), ACPI support, auto-uplink (auto MDI/MDI-X), PXE 2.1 support |
| Operating System / Software | |
| OS Provided | Windows 11 Pro English |
| Software | HP Support Assistant, HP PC Hardware Diagnostics UEFI, HP Driver Packs, HP Image Assistant, HP PC Hardware Diagnostics, HP ZCentral Remote Boost, HP Management Integration Kit for Microsoft System Center Configuration Manager Gen 4, HP Performance Advisor 3.0 |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Device Type | Power supply |
| Efficiency | 90% |
| Power Factor Correction | Yes (active) |
| Power Provided | 450 watt |
| Processor / Chipset | |
| Chipset Type | Intel W680 |
| Clock Speed | 2 GHz (P-core) / 1.5 GHz (E-core) |
| CPU | Intel Core i9 (14th Gen) i9-14900 |
| CPU Qty | 1 |
| CPU Socket | LGA1700 Socket |
| CPU Upgradability | Upgradable |
| L2 cache | 32 MB |
| Max CPU Qty | 1 |
| Max Turbo Speed | 5.8 GHz (P-core) / 4.3 GHz (E-core) |
| Number of Cores | 24-core |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache, Intel Turbo Boost Max 3.0, Intel Thermal Velocity Boost |
| RAM | |
| Configuration Features | 1 x 32 GB |
| Effective Memory Speed | 4800 MHz |
| Features | Unbuffered |
| Form Factor | DIMM 288-pin |
| Installed Size | 32 GB (installed) / 128 GB (max) |
| Rated Memory Speed | 4800 MHz |
| Slots | 4 (total) / 3 (empty) |
| Technology | DDR5 SDRAM - non-ECC |
| Storage Controller | |
| Channel Qty | 4 |
| Controller Interface Type | SATA 6Gb/s / PCIe 4.0 x4 (NVMe) |
| RAID Level | RAID 0, RAID 1 |
| Type | 1 x SATA/NVMe |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
