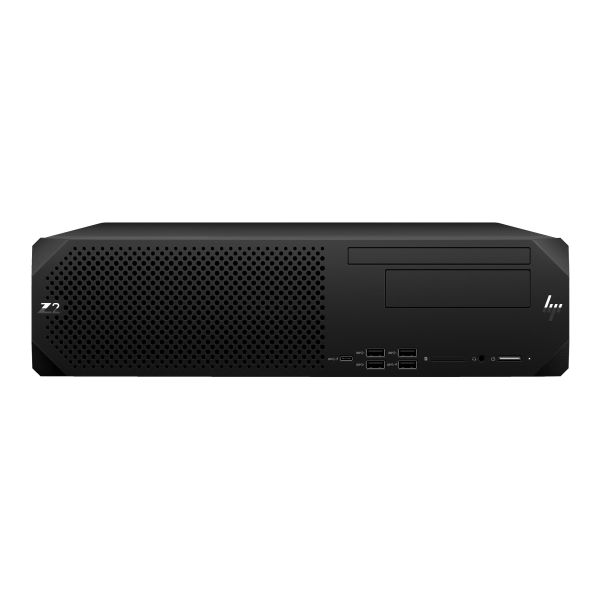

HP Workstation Z2 G9
Get all the power of a full size tower at a fraction of the size. Re-engineered to fit full-height, full-length graphics while leaving room for upgrades and expansion, the Z2 SFF delivers high performance for your intensive workflow-from 3D design to real time ray tracing-now and in the future.
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | HP Workstation Z2 G9 - AI Workstation - SFF 1 x Core i5 12500 / up to 4.6 GHz - RAM 16 GB - SSD 256 GB - HP Turbo Drive G2, HDD 500 GB - UHD Graphics 770 - Gigabit Ethernet - Win 11 Pro - monitor: none - keyboard: US - black |
| Manufacturer | HP, Inc. |
| UNSPSC | 43211507 |
| Main Specifications | |
| Chassis / Form Factor | Small form factor |
| Dimensions & Weight / Depth | 30.8 cm |
| Dimensions & Weight / Height | 10 cm |
| Dimensions & Weight / Weight | 5 kg |
| Dimensions & Weight / Width | 38.4 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 256 GB |
| Header / Brand | HP |
| Header / Country Kits | United States |
| Header / Localization | English |
| Mainboard / Chipset Type | Intel W680 |
| Mainboard / Processor Socket | LGA1700 Socket |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | Windows 11 Pro |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 3 GHz |
| Processor / Generation | 12 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 6-core |
| Processor / Processor Number | I5-12500 |
| Processor / Type | Core i5 |
| RAM / Data Integrity Check | Non-ECC |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Memory Speed | 4800 MHz |
| RAM / Technology | DDR5 SDRAM |
| System / Hard Drive Capacity | 756 GB |
| System / Type | Workstation |
| Video Output / Graphics Processor | Intel UHD Graphics 770 |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Cache Memory | |
| Cache Per Processor | 18 MB |
| Installed Size | 18 MB |
| Dimensions & Weight | |
| Depth | 30.8 cm |
| Height | 10 cm |
| Weight | 5 kg |
| Width | 38.4 cm |
| Dimensions & Weight (JTFpping) | |
| JTFpping Depth | 49 cm |
| JTFpping Height | 51.4 cm |
| JTFpping Weight | 5.9 kg |
| JTFpping Width | 19.9 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 85% RH (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
| Bays |
|
| Interfaces |
|
| Slots |
|
| General | |
| AI Level | AI Workstation |
| Color | Black |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Localization | Language: English / region: United States |
| Product Form Factor | SFF |
| Type | Workstation |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics 770 |
| Video Interfaces | DisplayPort |
| Hard Drive | |
| Capacity | 1 x 256 GB |
| Features | HP Turbo Drive G2 |
| Interface Type | PCI Express |
| Type | SSD - M.2 2280 |
| Hard Drive (2nd) | |
| Capacity | 500 GB |
| Interface Class | Serial ATA |
| Spindle Speed | 7200 rpm |
| Type | HDD |
| Input Device | |
| Type | Mouse, keyboard |
| Keyboard | |
| Interface | USB |
| Keyboard Name | HP 320K |
| Localization & Layout | US |
| Miscellaneous | |
| Compliant Standards | RoHS, FIPS 140-2, WEEE, Common Criteria EAL4+, low halogen |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Monitor | |
| Monitor Type | None. |
| Mouse | |
| Mouse Name | HP 320M |
| Networking | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1as, IEEE 802.3az |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet Controller | Intel I219-LM |
| Features | Wake on LAN (WoL), ACPI support, auto-uplink (auto MDI/MDI-X), PXE 2.1 support |
| Operating System / Software | |
| OS Provided | Windows 11 Pro English |
| Software | HP Support Assistant, HP PC Hardware Diagnostics UEFI, HP Driver Packs, HP Image Assistant, HP PC Hardware Diagnostics, HP ZCentral Remote Boost, HP Management Integration Kit for Microsoft System Center Configuration Manager Gen 4, HP Performance Advisor 3.0 |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Device Type | Power supply |
| Efficiency | 90% |
| Power Factor Correction | Yes |
| Power Provided | 450 watt |
| Processor / Chipset | |
| Chipset Type | Intel W680 |
| Clock Speed | 3 GHz |
| CPU | Intel Core i5 (12th Gen) 12500 |
| CPU Qty | 1 |
| CPU Socket | LGA1700 Socket |
| CPU Upgradability | Upgradable |
| Max CPU Qty | 1 |
| Max Turbo Speed | 4.6 GHz |
| Number of Cores | 6-core |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2 |
| RAM | |
| Configuration Features | 1 x 16 GB |
| Effective Memory Speed | 4800 MHz |
| Features | Unbuffered |
| Form Factor | DIMM 288-pin |
| Installed Size | 16 GB (installed) / 128 GB (max) |
| Rated Memory Speed | 4800 MHz |
| Slots | 4 (total) / 3 (empty) |
| Technology | DDR5 SDRAM - non-ECC |
| Storage Controller | |
| Channel Qty | 4 |
| Controller Interface Type | SATA 6Gb/s / PCIe 4.0 x4 (NVMe) |
| RAID Level | RAID 0, RAID 1 |
| Type | 1 x SATA/NVMe |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
