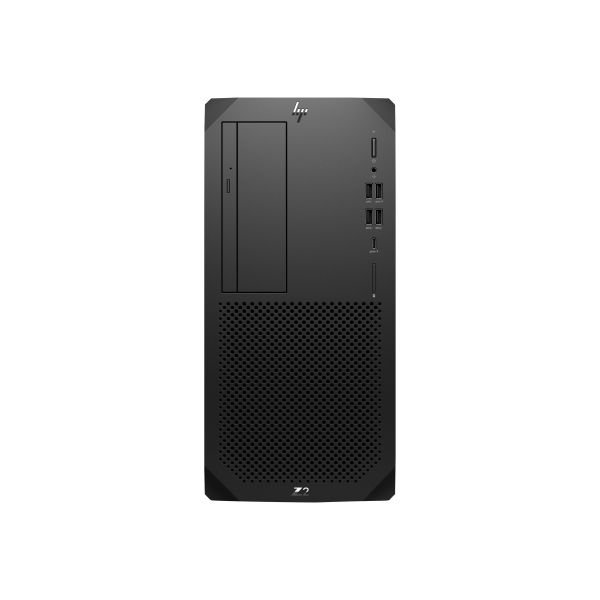

HP Workstation Z2 G9

Be the first to review this product

Availability: Out of stock

SKU

7C0Y3EC#ABA

UPC Code

197192012239

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

Experience a new level of performance for your professional workflow. The Z2 Tower seamlessly runs multi-threaded apps for fast rendering, simulation, and real-time ray tracing. And when demands change, you have impressive expandability to upgrade.

Specifications

General Information
Category	Desktop computers
Description	HP Workstation Z2 G9 - Tower 4U - 1 x Core i5 12600K / up to 4.9 GHz - RAM 32 GB - SSD 1 TB - TLC - RTX A2000 - Gigabit Ethernet - Win 11 Pro - monitor: none - keyboard: US - black
Manufacturer	HP, Inc.
UNSPSC	43211507
Main Specifications
A/V Interface Type	PCI Express 4.0 x16
Chassis / Form Factor	Tower
Dimensions & Weight / Depth	38.5 cm
Dimensions & Weight / Height	35.6 cm
Dimensions & Weight / Weight	7.2 kg
Dimensions & Weight / Width	16.9 cm
Display / Type	None.
Hard Drive / Capacity	1 TB
Hard Drive / Interface	PCI Express 4.0 x4
Hard Drive / Interface Type	PCI Express 4.0 x4
Header / Brand	HP
Header / Country Kits	United States
Header / Localization	English
Mainboard / Chipset Type	Intel W680
Mainboard / Processor Socket	LGA1700 Socket
Miscellaneous / Product Color	Black
Networking / Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Optical Storage / Drive Type	No optical drive
Optical Storage / Type	None
OS Provided / Type	Windows 11 Pro
Packaged Quantity	1
Processor / Clock Speed	3.7 GHz
Processor / Generation	12
Processor / Manufacturer	Intel
Processor / Number of Cores	10-core
Processor / Processor Number	I5-12600K
Processor / Type	Core i5
RAM / Form Factor	DIMM 288-pin
RAM / Memory Speed	4800 MHz
RAM / Technology	DDR5 SDRAM
Service & Support / Type	3-year warranty
System / Hard Drive Capacity	1 TB
System / Type	Workstation
Video Memory / Technology	GDDR6 SDRAM
Video Output / Graphics Processor	NVIDIA RTX A2000 / Intel UHD Graphics 770
Audio Output
Compliant Standards	High Definition Audio
Cache Memory
Cache Per Processor	20 MB
Installed Size	L3 cache - 20 MB
Dimensions & Weight
Depth	38.5 cm
Height	35.6 cm
Weight	7.2 kg
Width	16.9 cm
Dimensions & Weight (JTFpping)
JTFpping Depth	49 cm
JTFpping Height	51.8 cm
JTFpping Width	29.5 cm
Environmental Parameters
Humidity Range Operating	10 - 85% RH (non-condensing)
Max Operating Temperature	35 °C
Min Operating Temperature	5 °C
Expansion / Connectivity
Bays	1 (total) / 1 (free) x external 5.25" 1 (total) / 1 (free) x external 5.25" Slim Line 2 (total) / 2 (free) x internal 3.5" 1 (total) / 1 (free) x internal 2.5"
Interfaces	1 x headphones/microphone (1 in front) (CTIA and OMTP headset support) 6 x USB 3.2 Gen 2 (4 front, 2 rear) (one of them is charging) 1 x audio line-in 1 x audio line-out 2 x DisplayPort 1.4 1 x LAN (Gigabit Ethernet) 1 x USB 3.2 Gen 1 4 x Mini DisplayPort 1.4
Slots	1 (total) / 0 (free) x PCIe 5.0 x16 1 (total) / 1 (free) x PCIe 3.0 x4 (x1 mode) 1 (total) / 1 (free) x PCIe 3.0 x16 (x4 mode) 1 (total) / 1 (free) x PCIe 3.0 x4 3 (total) / 2 (free) x M.2 Card - 2280 (PCIe 4.0 x4 mode) 1 (total) / 1 (free) x M.2 Card - 2230 (PCIe 3.0 x1 mode and Intel CNVi wireless module)
General
Color	Black
Embedded Security	Trusted Platform Module (TPM 2.0) Security Chip
Localization	Language: English / region: United States
Product Form Factor	Tower - 4U
Sensors	HP Tamper Lock
Type	Workstation
Graphics Controller
Bandwidth	288 GBps
Graphics Processor	NVIDIA RTX A2000 / Intel UHD Graphics 770
Interface Type	PCIe 4.0 x16
Max Monitors Supported	4
Multi-GPU Configuration	1 single GPU card / integrated GPU
Video Interfaces	DisplayPort
Video Memory	12 GB GDDR6 SDRAM
Hard Drive
Capacity	1 x 1 TB
Features	Triple-level cell (TLC)
Interface Type	PCI Express 4.0 x4
Type	SSD - M.2 2280
Input Device
Type	Mouse, keyboard
Keyboard
Interface	USB
Keyboard Name	HP 320K
Localization & Layout	US
Manufacturer Warranty
Service & Support	Limited warranty - parts and labor - 3 years - on-site
Miscellaneous
Cables Included	Mini DisplayPort-DisplayPort adapter (2 pcs.)
Compliant Standards	RoHS, FIPS 140-2, WEEE, Energy-Related Products (ErP) Lot 6, CECP, SEPA, low halogen
Security Slot Type	Kensington security slot
Theft/Intrusion Protection	Security lock slot (cable lock sold separately), padlock loop, chassis intrusion sensor
Monitor
Monitor Type	None.
Mouse
Mouse Name	HP 320M
Networking
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1as, IEEE 802.3az
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller	Intel I219-LM
Features	Wake on LAN (WoL), ACPI support, auto-uplink (auto MDI/MDI-X), PXE 2.1 support, Intel Active Management Technology (AMT) 15
Operating System / Software
OS Provided	Windows 11 Pro English
Software	HP Support Assistant, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP BIOS Configuration Utility (free download), HP Driver Packs, HP Image Assistant, HP PC Hardware Diagnostics, HP System Software Manager (free download), HP Sure Click, HP Manageability Integration Kit, HP Sure Admin, HP Client Security Manager Gen6, HP BIOSphere Gen6, HP ZCentral Remote Boost, HP Sure Recover Gen4, HP Management Integration Kit for Microsoft System Center Configuration Manager Gen 4, HP Performance Advisor 3.0, HP Sure Sense Gen2, HP Sure Run Gen5, HP Sure Start Gen7
Optical Storage
Type	No optical drive
Power
Device Type	Power supply
Efficiency	90%
Power Factor Correction	Yes (active)
Power Provided	450 watt
Voltage Required	AC 90-269 V (50/60 Hz)
Processor / Chipset
Chipset Type	Intel W680
Clock Speed	3.7 GHz (P-core) / 2.8 GHz (E-core)
CPU	Intel Core i5 (12th Gen) 12600K
CPU Qty	1
CPU Socket	LGA1700 Socket
CPU Upgradability	Upgradable
L2 cache	9.5 MB
Max CPU Qty	1
Max Turbo Speed	4.9 GHz (P-core) / 3.6 GHz (E-core)
Number of Cores	10-core
Processor Main Features	Intel Turbo Boost Technology
RAM
Configuration Features	2 x 16 GB
Effective Memory Speed	4800 MHz
Features	Dual channel memory architecture
Form Factor	DIMM 288-pin
Installed Size	32 GB (installed) / 128 GB (max)
Rated Memory Speed	4800 MHz
Slots	4 (total) / 2 (empty)
Technology	DDR5 SDRAM
Sustainability Information
ENERGY STAR Certified	Yes
EPEAT Compliant	EPEAT Gold
