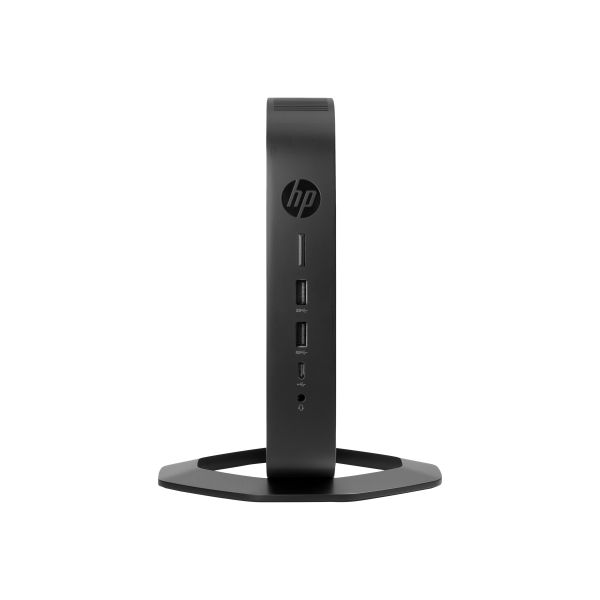

HP t640 - Thin client
| General Information | |
|---|---|
| Category | Thin client or diskless workstations |
| Description | HP t640 - Thin client - SFF 1 x Ryzen Embedded R1505G / up to 3.3 GHz - RAM 8 GB - flash - eMMC 32 GB - Radeon Vega 3 - Gigabit Ethernet - Win 10 IoT Enterprise 2019 LTSB for Thin Clients 64-bit - monitor: none - keyboard: US - TAA Compliant |
| Manufacturer | HP, Inc. |
| UNSPSC | 43211506 |
| Main Specifications | |
| Chassis / Form Factor | Small form factor |
| Dimensions & Weight / Depth | 19.6 cm |
| Dimensions & Weight / Height | 19.6 cm |
| Dimensions & Weight / Weight | 994.5 g |
| Dimensions & Weight / Width | 3.5 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 32 GB |
| Header / Brand | HP |
| Header / Country Kits | United States |
| Header / Localization | English |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | Windows 10 IoT Enterprise 2019 LTSB for Thin Clients 64-bit Edition |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 2.4 GHz |
| Processor / Manufacturer | AMD |
| Processor / Number of Cores | Dual-Core |
| Processor / Processor Number | R1505G |
| Processor / Type | Ryzen Embedded |
| RAM / Data Integrity Check | Non-ECC |
| RAM / Form Factor | SO-DIMM 260-pin |
| RAM / Memory Speed | 2400 MHz |
| RAM / Technology | DDR4 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 32 GB |
| System / Type | Thin client |
| Video Output / Graphics Processor | AMD Radeon Vega 3 |
| Audio Output | |
| Speakers Included | 1 x mixed channel |
| Cache Memory | |
| Cache Per Processor | 4 MB |
| Installed Size | L3 cache - 4 MB |
| Dimensions & Weight | |
| Depth | 19.6 cm |
| Height | 19.6 cm |
| Weight | 994.5 g |
| Width | 3.5 cm |
| Dimensions & Weight (JTFpping) | |
| JTFpping Weight | 2.878 kg |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| Slots | 1 (total) / 0 (free) x M.2 Card (for internal storage) |
| General | |
| Built-in Devices | Speaker |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Localization | Language: English / region: United States |
| Product Form Factor | SFF |
| Type | Thin client |
| Graphics Controller | |
| Graphics Processor | AMD Radeon Vega 3 |
| Max Monitors Supported | 3 |
| Video Interfaces | DisplayPort, USB-C |
| Hard Drive | |
| Capacity | 1 x 32 GB |
| Type | Flash - eMMC |
| Input Device | |
| Type | Mouse, keyboard |
| Keyboard | |
| Interface | USB |
| Keyboard Name | HP Business Slim Keyboard |
| Localization & Layout | US |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, UL, BSMI, GS, CB, CCC, ICES Class B, WEEE, EN 60601-1-2, KCC Class B, AS/NZS, ERP, RoHS2, VCCI Class B, CISPR Class B, SEPA, low halogen, CNS 13438 Class B, HP GSE, EN |
| Included Accessories | Stand |
| Security Slot Type | Kensington security slot |
| TAA Compliant | Yes |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| VESA Mounting Interface | 100 x 100 mm |
| Monitor | |
| Monitor Type | None. |
| Mouse | |
| Interface | USB |
| Technology | Optical |
| Networking | |
| Compliant Standards | IEEE 802.1x, DASH |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet Controller | Realtek RTL8111EPH-CG |
| Operating System / Software | |
| OS Provided | Windows 10 IoT Enterprise 2019 LTSB for Thin Clients 64-bit Edition English |
| Software | Microsoft Internet Explorer, Citrix ICA, Microsoft RDP, Microsoft Firewall, HP Remote Graphics Software, HP Device Manager, LogOn Manager, VMware Horizon View, Microsoft RemoteFX, Unified Write Filter, HP ThinUpdate, HP Easy Shell, Microsoft SCCM/EDM-agent, Citrix Workspace Suite, HP USB Port Manager, HP Write Manager |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Device Type | Power adapter |
| Power Device Name | HP Smart AC Adapter |
| Power Provided | 45 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Processor / Chipset | |
| Clock Speed | 2.4 GHz |
| CPU | AMD Ryzen Embedded R1505G |
| CPU Qty | 1 |
| CPU Upgradability | Not upgradable |
| L2 cache | 1 MB |
| Max CPU Qty | 1 |
| Max Turbo Speed | 3.3 GHz |
| Number of Cores | Dual-Core |
| RAM | |
| Configuration Features | 2 x 4 GB |
| Effective Memory Speed | 2400 MHz |
| Features | Dual channel memory architecture |
| Form Factor | SO-DIMM 260-pin |
| Installed Size | 8 GB (installed) / 32 GB (max) |
| Rated Memory Speed | 2400 MHz |
| Slots | 2 (total) / 0 (empty) |
| Technology | DDR4 SDRAM - non-ECC |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| EPEAT Compliant | EPEAT Silver |
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$149.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
secure transaction
Quick Details
- SFF 1 x Ryzen Embedded R1505G / up to 3.3 GHz
- RAM 8 GB
- flash
- eMMC 32 GB
- Radeon Vega 3
