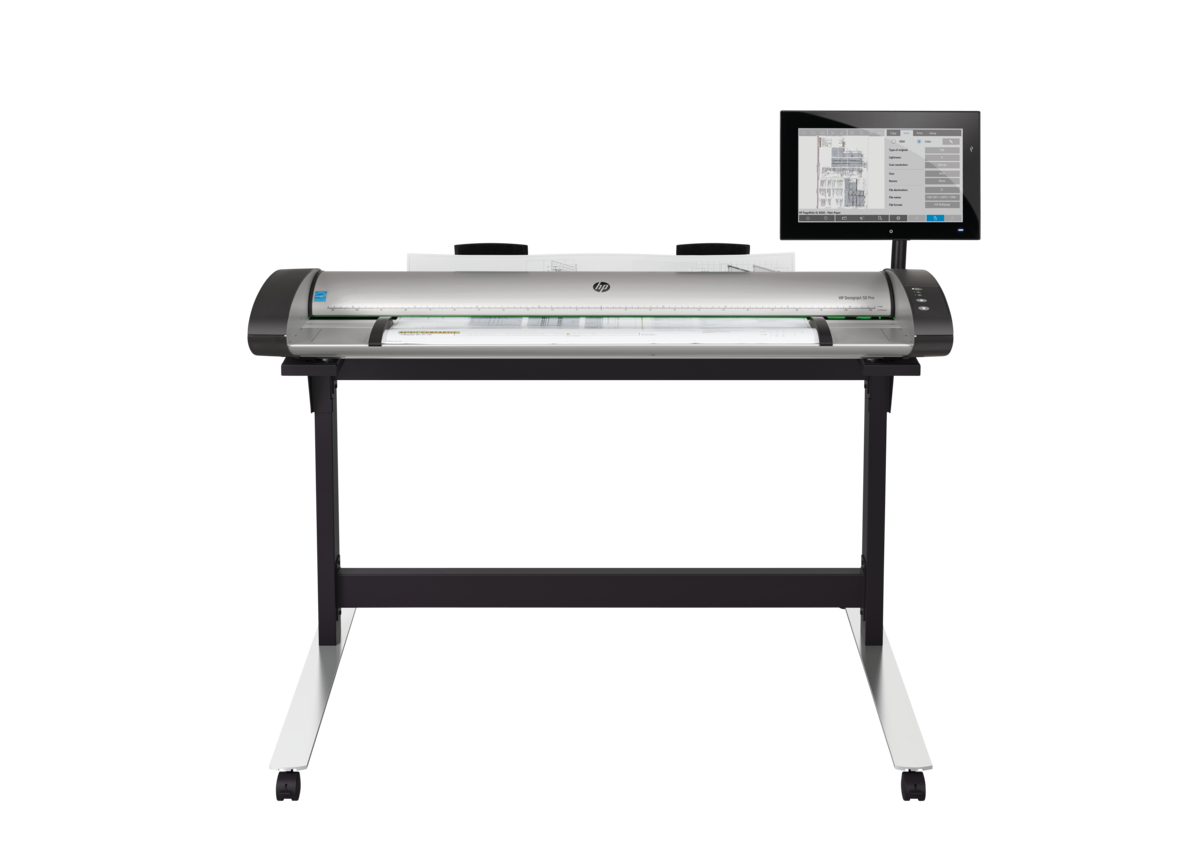

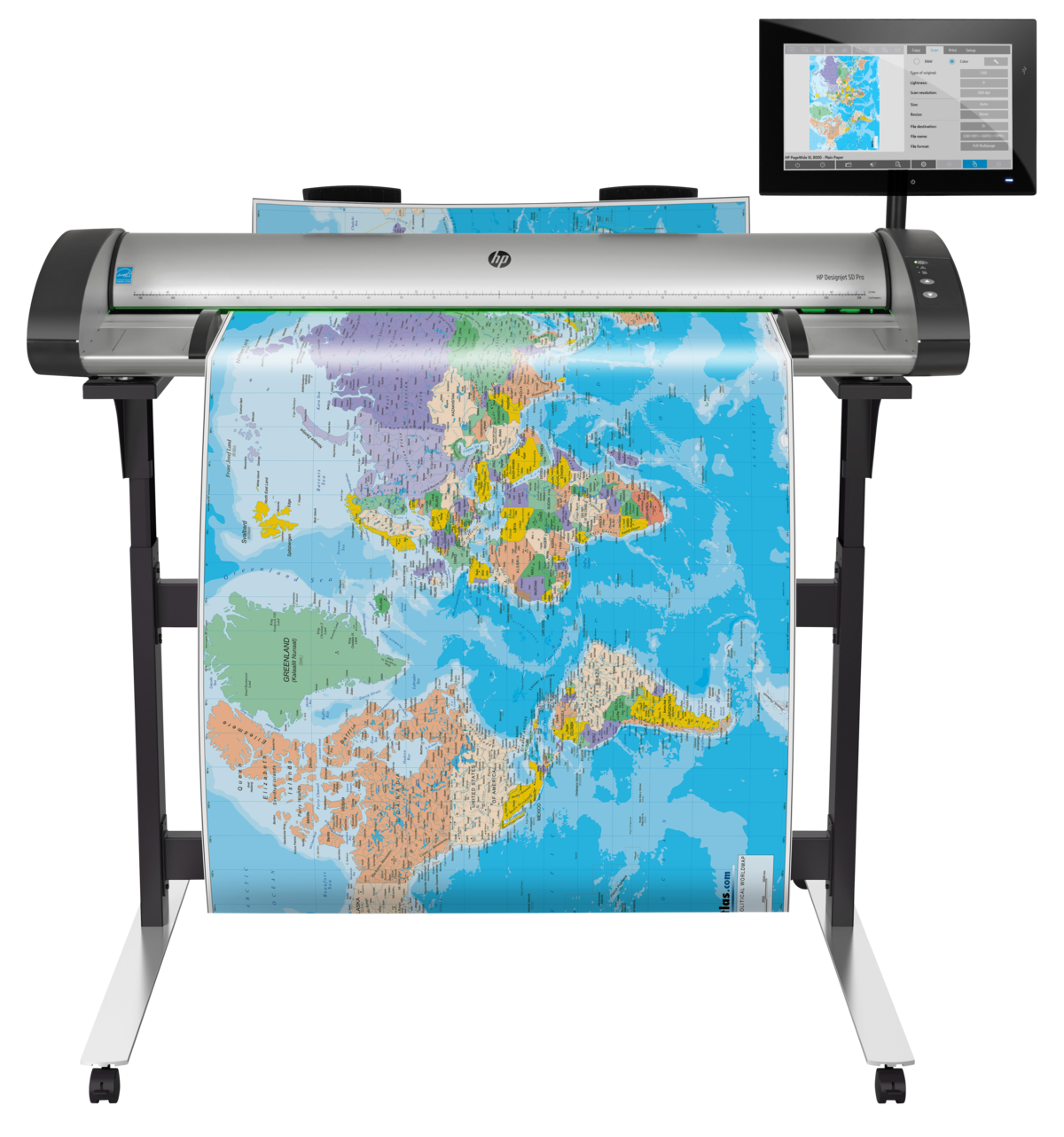

HP SD Pro 2 - Roll scanner
- Scanner type: CIS scanning technology
- Scan resolution, optical: 1200 dpi
- Bit depth: 48-bit/16-bit
- Scan size flatbed (maximum): 44 in
- ACCELERATE—Speed up production and drive results: Accomplish more with incredible speeds—scan 9 inches/sec in color, 18 inches/sec in grayscale. 1
- EXPAND—Do more with advanced scanning technology: Reproduce AEC/CAD drawings, blueprints, maps with crisp lines and fine detail using CIS scanning technology.
- OPTIMIZE—Integrate and secure your workflow: Enjoy seamless integration with HP PageWide XL and HP DesignJet printers—rely on HP to support the solution.
- Automatic document feeder: Allows multiple pages to be copied or scanned at one time
- Ethernet (printer): Add this device to your office Ethernet network to share with your workgroup.
| General Information | |
|---|---|
| Category | Scanners |
| Description | HP SD Pro 2 - Roll scanner - Contact Image Sensor (CIS) - max scan width: 44" - 1200 dpi x 1200 dpi - USB 3.1 Gen 1, Gigabit LAN, USB 2.0 |
| Manufacturer | HP, Inc. |
| UNSPSC | 43211711 |
| Main Specifications | |
| Dimensions & Weight / Depth | 93 cm |
| Dimensions & Weight / Height | 166 cm |
| Dimensions & Weight / Weight | 60 kg |
| Dimensions & Weight / Width | 153 cm |
| Header / Brand | HP |
| Header / Country Kits |
|
| Header / Localization |
|
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Scanner / Interface Type |
|
| Scanner / Max Supported Document Size | Roll (111.8 cm) |
| Scanner / Type | Roll scanner |
| Service & Support / Type | 1-year warranty |
| Dimensions & Weight | |
| Depth | 93 cm |
| Height | 166 cm |
| Weight | 60 kg |
| Width | 153 cm |
| Dimensions & Weight (JTFpping) | |
| JTFpping Depth | 68 cm |
| JTFpping Height | 71 cm |
| JTFpping Weight | 85 kg |
| JTFpping Width | 150 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% RH |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 5 °C |
| Sound Emission | 62 dBA |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
| Expansion / Connectivity | |
| Interfaces Details |
|
| General | |
| Additional Functions | Email, scan to print, scan to network folder, scan to smart devices, scan to USB, scan to FTP, scan to file, scan to HDD |
| Interface Type | USB 3.1 Gen 1, Gigabit LAN, USB 2.0 |
| Localization | English, French, Spanish, Portuguese / United States, Canada, Latin America |
| Max Scan Width | 44" |
| Max Supported Document Size | Roll (111.8 cm) |
| Type | Roll scanner - stationary |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 1 year |
| Media Handling | |
| Max Document Size | 1118 mm |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | ITEA, EMC, FCC, ICES, EAC, MSIP, VCCI, KC, ACMA, RSM, CCC, WEEE, RoHS, REACH, EN 60950-1, LVD, PSB, IRAM, NYCE, UL |
| Included Accessories | Stand, setup poster |
| Power | |
| Power Consumption Operational (Standby) | 47 Watt |
| Power Consumption Sleep | 1.8 Watt |
| Power Consumption Stand by | 32 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Scanner | |
| Color Depth | 24-bit (16.7 million colors) |
| Input Type | Color |
| Optical Resolution | 1200 dpi x 1200 dpi |
| Scan File Formats | PDF, TIFF, JPEG, DWF, JPEG 2000 |
| Scanner Features | 15.6" touch screen display, 256 GB SSD |
| Scanner Speed Details |
|
| Scanning Sensor Type | Contact Image Sensor (CIS) |
| Software / System Requirements | |
| Software Included | Drivers & utilities |
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
secure transaction
Quick Details
- Contact Image Sensor (CIS)
- max scan width: 44"
- 1200 dpi x 1200 dpi
- USB 3.1 Gen 1, Gigabit LAN, USB 2.0
