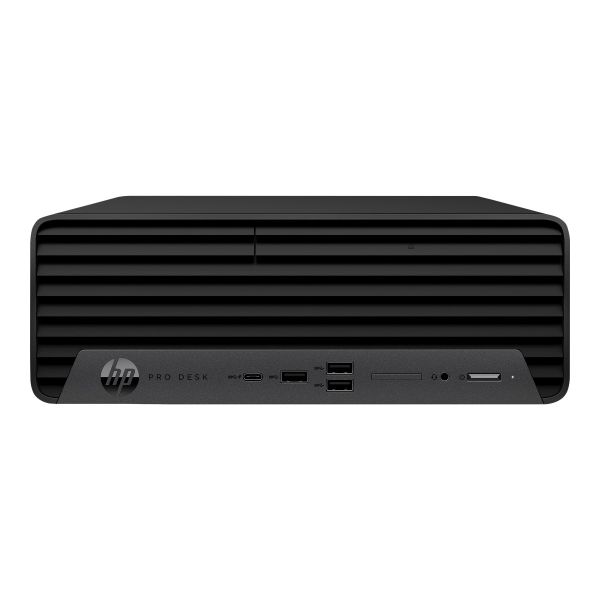

HP Pro 400 G9 - SFF Pentium Gold G7400

Be the first to review this product

Availability: Out of stock

SKU

A5LX7UA#ABA

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The HP Pro 400 G9 offers reliable performance and solid functionality for personal computing needs. With a compact small form factor, this desktop is designed to fit seamlessly into any workspace while providing the necessary power for everyday tasks. The built-in Realtek ALC3252 audio codec ensures high definition sound output, making it suitable for both work and entertainment purposes. Equipped with a 256 GB NVMe SSD, this model delivers fast data access and storage speeds, enhancing overall productivity. Supporting upgradable RAM with a maximum memory speed of 3200 MHz, the HP Pro 400 G9 allows for improved multitasking capabilities. Networking is efficient with 802.3 standards compliance, and additional features like Wake on LAN simplify remote management. The combination of Intel Pentium Gold processor, dual-core architecture, and advanced security features, including a Trusted Platform Module, makes this system a dependable choice for users looking for a powerful personal computer.

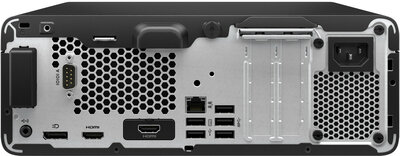

Expansion bays and slots: The HP Pro SFF 400 has an m.2 slot for WLAN and one for storage, one PCIe x16 slot, and one PCIe x1 slot.
Connect up to 3 displays: Increase productivity and tackle a range of workflows with video ports supporting up to three displays. | 1
Protected by HP Wolf Security: HP Wolf Security for Business creates a hardware-enforced, always-on, resilient defense. | 2

Specifications

General Information
Category	Desktop computers
Description	HP Pro 400 G9 - SFF Pentium Gold G7400 - RAM 8 GB - SSD 256 GB - NVMe, TLC - T400 - Gigabit Ethernet - FreeDOS - monitor: none
Manufacturer	HP, Inc.
UNSPSC	43211507
Main Specifications
A/V Interface Type	PCI Express x16
Chassis / Form Factor	Small form factor
Dimensions & Weight / Depth	30.8 cm
Dimensions & Weight / Height	9.5 cm
Dimensions & Weight / Weight	4.2 kg
Dimensions & Weight / Width	27 cm
Display / Type	None.
Hard Drive / Capacity	256 GB
Hard Drive / Interface	PCI Express 4.0
Hard Drive / Interface Type	PCI Express 4.0
Header / Brand	HP
Header / Country Kits	United States
Header / Localization	English
Mainboard / Chipset Type	Intel Q670
Miscellaneous / Product Color	Black
Networking / Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Optical Storage / Drive Type	No optical drive
Optical Storage / Type	None
OS Provided / Type	FreeDOS
Packaged Quantity	1
Processor / Clock Speed	3.7 GHz
Processor / Manufacturer	Intel
Processor / Number of Cores	Dual-Core
Processor / Processor Number	G7400
Processor / Type	Pentium Gold
RAM / Data Integrity Check	Non-ECC
RAM / Form Factor	DIMM 288-pin
RAM / Memory Speed	3200 MHz
RAM / Technology	DDR4 SDRAM
Service & Support / Type	1-year warranty
System / Hard Drive Capacity	256 GB
System / Type	Personal computer
Video Memory / Technology	GDDR6 SDRAM
Video Output / Graphics Processor	NVIDIA T400 / Intel UHD Graphics 710
Video Output / HDCP compatible	Yes
Audio Output
Compliant Standards	High Definition Audio
Max Sampling Rate	192 kHz
Sound Output Mode	Stereo
Cache Memory
Cache Per Processor	6 MB
Installed Size	L3 cache - 6 MB
Dimensions & Weight
Depth	30.8 cm
Height	9.5 cm
Weight	4.2 kg
Width	27 cm
Dimensions & Weight (JTFpping)
JTFpping Depth	49.9 cm
JTFpping Height	20.5 cm
JTFpping Weight	7.25 kg
JTFpping Width	39.4 cm
Environmental Parameters
Humidity Range Operating	10 - 90% RH (non-condensing)
Max Operating Temperature	35 °C
Min Operating Temperature	10 °C
Expansion / Connectivity
Bays	1 (total) / 1 (free) x external 5.25" Slim Line 1 (total) / 1 (free) x internal 3.5"
Interfaces	1 x headphones/microphone (1 in front) (CTIA and OMTP headset support) 3 x USB 3.2 Gen 2 (3 in front) 1 x USB-C 3.2 Gen 2 (1 in front) 1 x audio line-out/line-in 1 x DisplayPort 1.4a 1 x HDMI 2 x USB 2.0 (wake functionality) 3 x USB 3.2 Gen 1 1 x LAN (Gigabit Ethernet) 3 x Mini DisplayPort
Slots	1 (total) / 0 (free) x PCIe 4.0 x16 1 (total) / 1 (free) x PCIe 4.0 x1 1 (total) / 1 (free) x M.2 Card - 2230 (PCIe x1 mode (for wireless module)) 1 (total) / 0 (free) x M.2 Card - 2280 (PCIe x4 mode (for internal storage))
General
Built-in Devices	Speaker
Embedded Security	Trusted Platform Module (TPM 2.0) Security Chip
Localization	Language: English / region: United States
Product Form Factor	SFF
Sensors	HP Tamper Lock
Type	Personal computer
Graphics Controller
Graphics Processor	NVIDIA T400 / Intel UHD Graphics 710
HDCP Compatible	Yes
Interface Type	PCIe x16
Multi-GPU Configuration	1 single GPU card / integrated GPU
Video Interfaces	HDMI, DisplayPort
Video Memory	4 GB GDDR6 SDRAM
Hard Drive
Capacity	1 x 256 GB
Features	NVM Express (NVMe), triple-level cell (TLC)
Interface Type	PCI Express 4.0
Type	SSD - M.2 2280
Manufacturer Warranty
Service & Support	Limited warranty - parts and labor - 1 year - on-site
Miscellaneous
Compliant Standards	FCC Class B certified, ICES-003, CCC, FIPS 140-2 Level 2, RoHS, WEEE, KCC Class B, Common Criteria EAL4+, VCCI Class B, low halogen, CAN/CSA-C22.2 No. 62368-1, UL 62368-1, IEEE 1680.1-2018
Security Slot Type	Kensington security slot
Theft/Intrusion Protection	Security lock slot (cable lock sold separately)
Monitor
Monitor Type	None.
Networking
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Features	Wake on LAN (WoL), ACPI support, auto-uplink (auto MDI/MDI-X), PXE 2.1 support
Remote Management Protocol	SNMP 2
Operating System / Software
OS Provided	FreeDOS
Optical Storage
Type	No optical drive
Power
Device Type	Power supply
Efficiency	92%
Power Factor Correction	Yes (active)
Power Provided	240 watt
Voltage Required	AC 90-264 V (50/60 Hz)
Processor / Chipset
Chipset Type	Intel Q670
Clock Speed	3.7 GHz
CPU	Intel Pentium Gold G7400
CPU Qty	1
CPU Upgradability	Upgradable
L2 cache	2.5 MB
Max CPU Qty	1
Number of Cores	Dual-Core
Processor Main Features	Hyper-Threading Technology, Intel Smart Cache
RAM
Configuration Features	1 x 8 GB
Effective Memory Speed	3200 MHz
Features	Unbuffered
Form Factor	DIMM 288-pin
Installed Size	8 GB (installed) / 64 GB (max)
Rated Memory Speed	3200 MHz
Slots	2 (total) / 1 (empty)
Technology	DDR4 SDRAM - non-ECC
Storage Controller
Channel Qty	3
Type	1 x SATA
Sustainability Information
TCO Certified	TCO Certified Desktops 9
