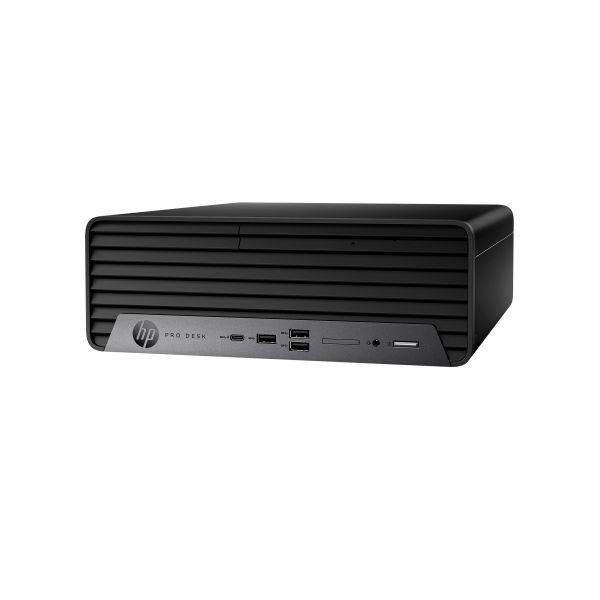

HP Pro 400 G9 - SFF Core i7 13700 / up to 5.2 GHz

Be the first to review this product

Availability: Out of stock

SKU

9U0K0UA#ABA

UPC Code

198122164486

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

HP Pro 400 Series desktops provide businesses with durable, reliable, commercial-grade performance, strong security, and configurability required for day-to-day mainstream enterprise and SMB productivity. The HP Pro SFF 400 Desktop provides users in hybrid work environments with the commercial-grade configuration options and connectivity in a space-saving design. This PC is powered by the latest Intel processor and protected with always-on security you can trust.

Expansion bays and slots: The HP Pro SFF 400 has an m.2 slot for WLAN and one for storage, one PCIe x16 slot, and one PCIe x1 slot.
Connect up to 3 displays: Increase productivity and tackle a range of workflows with video ports supporting up to three displays. | 1
Protected by HP Wolf Security: HP Wolf Security for Business creates a hardware-enforced, always-on, resilient defense. | 2

Specifications

General Information
Category	Desktop computers
Description	HP Pro 400 G9 - SFF Core i7 13700 / up to 5.2 GHz - vPro - RAM 32 GB - SSD 512 GB - NVMe, TLC - UHD Graphics 770 - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 - Win 11 Pro - monitor: none - keyboard: US
Manufacturer	HP, Inc.
UNSPSC	43211507
Main Specifications
Chassis / Form Factor	Small form factor
Dimensions & Weight / Depth	30.8 cm
Dimensions & Weight / Height	9.5 cm
Dimensions & Weight / Weight	4.2 kg
Dimensions & Weight / Width	27 cm
Display / Type	None.
Hard Drive / Capacity	512 GB
Header / Brand	HP
Header / Country Kits	United States
Header / Localization	English
Mainboard / Chipset Type	Intel Q670
Miscellaneous / Product Color	Black
Networking / Data Link Protocol	Bluetooth 5.3 Ethernet Fast Ethernet Gigabit Ethernet IEEE 802.11a IEEE 802.11ac IEEE 802.11ax (Wi-Fi 6E) IEEE 802.11b IEEE 802.11g IEEE 802.11n
Networking / Wireless LAN Supported	Yes
Networking / Wireless Protocol	802.11a/b/g/n/ac/ax (Wi-Fi 6E) Bluetooth 5.3
Optical Storage / Drive Type	No optical drive
Optical Storage / Type	None
OS Provided / Type	Windows 11 Pro
Packaged Quantity	1
Processor / Clock Speed	2.1 GHz
Processor / Generation	13
Processor / Manufacturer	Intel
Processor / Number of Cores	16-core
Processor / Processor Number	I7-13700
Processor / Type	Core i7
RAM / Data Integrity Check	Non-ECC
RAM / Form Factor	DIMM 288-pin
RAM / Memory Speed	3200 MHz
RAM / Technology	DDR4 SDRAM
Service & Support / Type	1-year warranty
System / Hard Drive Capacity	512 GB
System / Platform Technology	Intel vPro Platform
System / Type	Personal computer
Video Output / Graphics Processor	Intel UHD Graphics 770
Video Output / HDCP compatible	Yes
Audio Output
Compliant Standards	High Definition Audio
Max Sampling Rate	192 kHz
Sound Output Mode	Stereo
Cache Memory
Cache Per Processor	30 MB
Installed Size	L3 cache - 30 MB
Dimensions & Weight
Depth	30.8 cm
Height	9.5 cm
Weight	4.2 kg
Width	27 cm
Dimensions & Weight (JTFpping)
JTFpping Depth	49.9 cm
JTFpping Height	20.5 cm
JTFpping Weight	7.25 kg
JTFpping Width	39.4 cm
Environmental Parameters
Humidity Range Operating	10 - 90% RH (non-condensing)
Max Operating Temperature	35 °C
Min Operating Temperature	10 °C
Expansion / Connectivity
Bays	1 (total) / 1 (free) x external 5.25" Slim Line 1 (total) / 1 (free) x internal 3.5"
Interfaces	1 x headphones/microphone (1 in front) (CTIA and OMTP headset support) 3 x USB 3.2 Gen 2 (3 in front) 1 x USB-C 3.2 Gen 2 (1 in front) 1 x audio line-out/line-in 1 x DisplayPort 1.4a 1 x HDMI 2 x USB 2.0 (wake functionality) 3 x USB 3.2 Gen 1 1 x LAN (Gigabit Ethernet) 1 x VGA
Slots	1 (total) / 1 (free) x PCIe 4.0 x16 1 (total) / 1 (free) x PCIe 4.0 x1 1 (total) / 0 (free) x M.2 Card - 2230 (PCIe x1 mode (for wireless module)) 1 (total) / 0 (free) x M.2 Card - 2280 (PCIe x4 mode (for internal storage))
General
Built-in Devices	Speaker
Embedded Security	Trusted Platform Module (TPM 2.0) Security Chip
Localization	Language: English / region: United States
Platform Technology	Intel vPro Platform
Product Form Factor	SFF
Sensors	HP Tamper Lock
Type	Personal computer
Graphics Controller
Graphics Processor	Intel UHD Graphics 770 Dynamic Video Memory Technology
HDCP Compatible	Yes
Video Interfaces	VGA, HDMI, DisplayPort
Hard Drive
Capacity	1 x 512 GB
Features	NVM Express (NVMe), triple-level cell (TLC)
Interface Type	PCI Express
Type	SSD - M.2 2280
Input Device
Type	Mouse, keyboard
Keyboard
Interface	USB
Keyboard Name	HP 125
Localization & Layout	US
Manufacturer Warranty
Service & Support	Limited warranty - parts and labor - 1 year - on-site
Miscellaneous
Compliant Standards	FCC Class B certified, ICES-003, CCC, FIPS 140-2 Level 2, RoHS, WEEE, KCC Class B, Common Criteria EAL4+, VCCI Class B, low halogen, CAN/CSA-C22.2 No. 62368-1, UL 62368-1, IEEE 1680.1-2018
Security Slot Type	Kensington security slot
Theft/Intrusion Protection	Security lock slot (cable lock sold separately), padlock loop
Monitor
Monitor Type	None.
Mouse
Mouse Name	HP 125
Networking
Compliant Standards	IEEE 802.11d, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.11h, IEEE 802.11e, IEEE 802.11k, IEEE 802.11r, IEEE 802.11v
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3
Features	Wake on LAN (WoL), ACPI support, auto-uplink (auto MDI/MDI-X), PXE 2.1 support, dual stream (2x2)
Interface (Bus) Type	PCI Express Mini Card (M.2)
Remote Management Protocol	SNMP 2
Wireless LAN Supported	Yes
Wireless NIC	Intel Wi-Fi 6E AX 211
Operating System / Software
OS Provided	Windows 11 Pro English
Software	HP Support Assistant, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP Client Catalog (free download), HP Setup Integrated OOBE, HP Notifications, HP Connection Optimizer, HP Sure Click, HP Privacy Settings, HP Cloud Recovery, HP Sure Sense, HP Sure Admin, HP QuickDrop, HP Client Management Script Library (free download), HP BIOSphere Gen6, myHP, Touchpoint Customizer for Commercial, HP Desktop Support Utilities, HP Tamper Lock, HP Image Assistant Gen5 (free download), HP Easy Clean, HP Smart Support, HP Manageability Integration Kit (free download), HP Patch Assistant (free download), HP Sure Start Gen7
Optical Storage
Type	No optical drive
Power
Device Type	Power supply
Efficiency	92%
Power Factor Correction	Yes (active)
Power Provided	240 watt
Voltage Required	AC 90-264 V (50/60 Hz)
Processor / Chipset
Chipset Type	Intel Q670
Clock Speed	2.1 GHz (P-core) / 1.5 GHz (E-core)
CPU	Intel Core i7 (13th Gen) 13700
CPU Qty	1
CPU Upgradability	Upgradable
L2 cache	24 MB
Max CPU Qty	1
Max Turbo Speed	5.2 GHz (P-core) / 4.1 GHz (E-core)
Number of Cores	16-core
Processor Main Features	Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache, Intel Turbo Boost Max 3.0
RAM
Configuration Features	2 x 16 GB
Effective Memory Speed	3200 MHz
Features	Unbuffered
Form Factor	DIMM 288-pin
Installed Size	32 GB (installed) / 64 GB (max)
Rated Memory Speed	3200 MHz
Slots	2 (total) / 0 (empty)
Technology	DDR4 SDRAM - non-ECC
Storage Controller
Channel Qty	3
Type	1 x SATA
Sustainability Information
ENERGY STAR Certified	Yes
TCO Certified	TCO Certified Desktops 9
