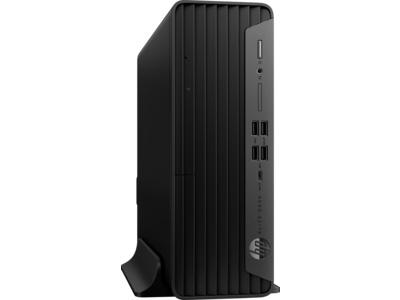

HP Elite 800 G9 - SFF Core i7 i7-14700 / up to 5.4 GHz
HP EliteDesk Series desktops provide businesses with powerful, expandable, highly secure, and reliable PCs designed for power users. The HP Elite 800 SFF Desktop PC delivers uncompromising performance, expandability, and reliability in a space-saving design. Equipped with the latest Intel processor, speedy storage, and memory, this is the right PC for big jobs performed in smaller workspaces.
- Expansion for the future: Future proof your fleet with multiple drives and configurable ports that provide expandability.
- Powerful Intel: ® | processor | Blaze through your to-do list with the latest Intel | ® | processor | 1 | , speedy storage, and agile memory.
- Protected by HP Wolf Security: HP Wolf Security for Business creates a hardware-enforced, always-on, resilient defense. | 2
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | HP Elite 800 G9 - SFF Core i7 i7-14700 / up to 5.4 GHz - RAM 32 GB - SSD 512 GB - NVMe, TLC - UHD Graphics 770 - Gigabit Ethernet - Win 11 Pro - monitor: none - keyboard: US - Smart Buy - with HP 1 year Wolf Pro Security Edition Service - with HP Wolf Pro Security Edition (1 year) |
| Manufacturer | HP, Inc. |
| UNSPSC | 43211507 |
| Main Specifications | |
| Chassis / Form Factor | Small form factor |
| Dimensions & Weight / Depth | 30.8 cm |
| Dimensions & Weight / Height | 10 cm |
| Dimensions & Weight / Weight | 5.4 kg |
| Dimensions & Weight / Width | 33.8 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 512 GB |
| Hard Drive / Interface | PCI Express 4.0 |
| Hard Drive / Interface Type | PCI Express 4.0 |
| Header / Brand | HP |
| Header / Country Kits | United States |
| Header / Localization | English |
| Mainboard / Chipset Type | Intel Q670 |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | Windows 11 Pro |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 2.1 GHz |
| Processor / Generation | 14 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 20-core |
| Processor / Processor Number | I7-14700 |
| Processor / Type | Core i7 |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Memory Speed | 4800 MHz |
| RAM / Technology | DDR5 SDRAM |
| Service & Support / Type | 1-year warranty |
| System / Hard Drive Capacity | 512 GB |
| System / Type | Personal computer |
| Video Output / Graphics Processor | Intel UHD Graphics 770 |
| Video Output / HDCP compatible | Yes |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Max Sampling Rate | 192 kHz |
| Sound Output Mode | Stereo |
| Speakers Included | 1 x mixed channel |
| Cache Memory | |
| Cache Per Processor | 33 MB |
| Installed Size | L3 cache - 33 MB |
| Dimensions & Weight | |
| Depth | 30.8 cm |
| Height | 10 cm |
| Weight | 5.4 kg |
| Width | 33.8 cm |
| Dimensions & Weight (JTFpping) | |
| JTFpping Depth | 49.9 cm |
| JTFpping Height | 23 cm |
| JTFpping Weight | 7.92 kg |
| JTFpping Width | 39.9 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Bays |
|
| Interfaces |
|
| Slots |
|
| General | |
| Built-in Devices | Speaker |
| Bundled Services | HP 1 year Wolf Pro Security Edition Service |
| Bundled with | HP Wolf Pro Security Edition (1 year) |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Localization | Language: English / region: United States |
| Product Form Factor | SFF |
| Type | Personal computer |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics 770 Dynamic Video Memory Technology |
| HDCP Compatible | Yes |
| Video Interfaces | HDMI, DisplayPort |
| Hard Drive | |
| Capacity | 1 x 512 GB |
| Features | NVM Express (NVMe), triple-level cell (TLC) |
| Interface Type | PCI Express 4.0 |
| Type | SSD - M.2 2280 |
| Input Device | |
| Type | Mouse, keyboard |
| Keyboard | |
| Interface | USB |
| Keyboard Name | HP 320K |
| Localization & Layout | US |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 1 year - on-site |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, ICES-003, CCC, FIPS 140-2 Level 2, RoHS, UL 60950-1, CSA C22.2 No. 60950-1-07, WEEE, KCC Class B, Common Criteria EAL4+, CECP, VCCI Class B, SEPA, low halogen, UL 62368-1, CAN/CSA-C22.2 No. 62368-1-14, IEEE 1680.1 |
| Manufacturer Selling Program | HP Smart Buy |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop |
| Monitor | |
| Monitor Type | None. |
| Mouse | |
| Mouse Name | HP 125 |
| Networking | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet Controller | Intel I219-LM |
| Features | Wake on LAN (WoL), ACPI support, PXE 2.1 support |
| Remote Management Protocol | SNMP 2 |
| Operating System / Software | |
| OS Provided | Windows 11 Pro English |
| Software | HP Support Assistant, HP PC Hardware Diagnostics UEFI, Microsoft 365 (Trial), HP Secure Erase, HP Setup Integrated OOBE, HP Notifications, HP Connection Optimizer, HP Sure Click, HP Privacy Settings, HP Cloud Recovery, HP Sure Sense, HP Sure Admin, HP QuickDrop, HP BIOSphere Gen6, HP DriveLock, myHP, HP Desktop Support Utilities, HP Client Security Manager Gen7, HP Touchpoint Customizer, HP Easy Clean, HP Connect for Microsoft Endpoint Manager, HP SureRun Gen5, HP Sure Recover Gen5, HP Wolf Security for Business, HP Sure Start Gen7 |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| 80 PLUS Certification | 80 PLUS Platinum |
| Device Type | Power supply |
| Efficiency | 92% |
| Power Factor Correction | Yes (active) |
| Power Provided | 260 watt |
| Voltage Required | AC 90-264 V (50/60 Hz) |
| Processor / Chipset | |
| Chipset Type | Intel Q670 |
| Clock Speed | 2.1 GHz (P-core) / 1.5 GHz (E-core) |
| CPU | Intel Core i7 (14th Gen) i7-14700 |
| CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| L2 cache | 28 MB |
| Max CPU Qty | 1 |
| Max Turbo Speed | 5.4 GHz (P-core) / 4.2 GHz (E-core) |
| Number of Cores | 20-core |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache, Intel Turbo Boost Max 3.0 |
| RAM | |
| Configuration Features | 1 x 32 GB |
| Effective Memory Speed | 4800 MHz |
| Features | Unbuffered |
| Form Factor | DIMM 288-pin |
| Installed Size | 32 GB (installed) / 128 GB (max) |
| Rated Memory Speed | 4800 MHz |
| Slots | 4 (total) / 3 (empty) |
| Technology | DDR5 SDRAM |
| Storage Controller | |
| Channel Qty | 4 |
| Controller Interface Type | SATA-600 / NVMe |
| Type | 1 x SATA/NVMe |
| Sustainability Information | |
| Carbon Footprint | 280 kg carbon emissions |
| ENERGY STAR Certified | Yes |
| EOL (kg CO2e) | 2 |
| Logistics (kg CO2e) | 2 |
| Manufacturing (kg CO2e) | 149 |
| TCO Certified | TCO Certified Desktops 9 |
| Total Carbon w/o Use Phase (kg CO2e) | 280 |
| Use (kg CO2e) | 126 |
