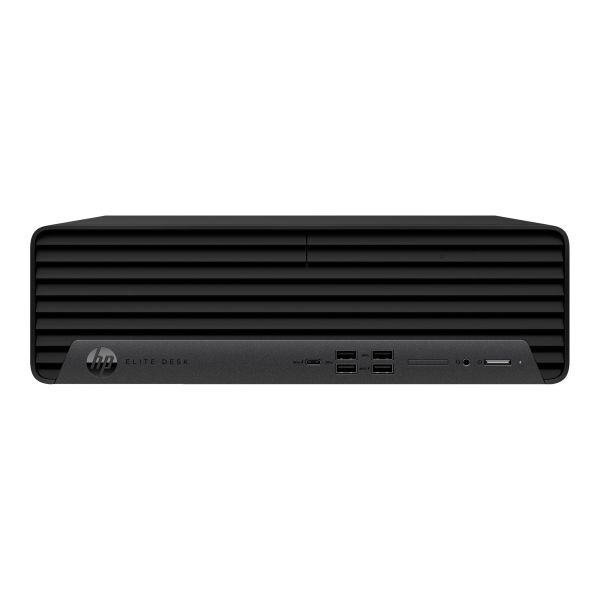

HP Elite 800 G9 - SFF Core i7 12700 / up to 4.9 GHz

Be the first to review this product

Availability: Out of stock

SKU

A3FV8EC#ABA

UPC Code

198415119919

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The HP Elite 800 G9 is designed for performance and reliable functionality. Equipped with an Intel Core i7 processor and supported by DDR5 SDRAM technology, this personal computer ensures smooth multitasking and efficient execution of applications. The inclusion of NVM Express (NVMe) hard drive delivers quick data access and enhanced storage capabilities, making it a valuable asset for any workspace. Networking is made effortless with support for Ethernet, Fast Ethernet, and Gigabit Ethernet protocols. Whether managing devices remotely with SNMP 2 or utilizing Wake on LAN (WoL) features, the HP Elite 800 G9 stands ready to meet modern connectivity needs. Additionally, the embedded Trusted Platform Module (TPM 2.0) security chip provides essential protection against data breaches.

Specifications

General Information
Category	Desktop computers
Description	HP Elite 800 G9 - SFF Core i7 12700 / up to 4.9 GHz - RAM 32 GB - SSD 512 GB - NVMe, TLC - UHD Graphics 770 - Gigabit Ethernet - Win 11 Pro - monitor: none - keyboard: US
Manufacturer	HP, Inc.
UNSPSC	43211507
Main Specifications
Chassis / Form Factor	Small form factor
Dimensions & Weight / Depth	30.8 cm
Dimensions & Weight / Height	10 cm
Dimensions & Weight / Weight	5.4 kg
Dimensions & Weight / Width	33.8 cm
Display / Type	None.
Hard Drive / Capacity	512 GB
Hard Drive / Interface	PCI Express 4.0
Hard Drive / Interface Type	PCI Express 4.0
Header / Brand	HP
Header / Country Kits	United States
Header / Localization	English
Mainboard / Chipset Type	Intel Q670
Miscellaneous / Product Color	Black
Networking / Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Optical Storage / Drive Type	No optical drive
Optical Storage / Type	None
OS Provided / Type	Windows 11 Pro
Packaged Quantity	1
Processor / Clock Speed	2.1 GHz
Processor / Generation	12
Processor / Manufacturer	Intel
Processor / Number of Cores	12-core
Processor / Processor Number	I7-12700
Processor / Type	Core i7
RAM / Form Factor	DIMM 288-pin
RAM / Memory Speed	2400 MHz
RAM / Technology	DDR5 SDRAM
System / Hard Drive Capacity	512 GB
System / Type	Personal computer
Video Output / Graphics Processor	Intel UHD Graphics 770
Video Output / HDCP compatible	Yes
Audio Output
Compliant Standards	High Definition Audio
Max Sampling Rate	192 kHz
Sound Output Mode	Stereo
Cache Memory
Cache Per Processor	25 MB
Installed Size	L3 cache - 25 MB
Dimensions & Weight
Depth	30.8 cm
Height	10 cm
Weight	5.4 kg
Width	33.8 cm
Dimensions & Weight (JTFpping)
JTFpping Depth	49.9 cm
JTFpping Height	23 cm
JTFpping Weight	7.92 kg
JTFpping Width	39.9 cm
Environmental Parameters
Humidity Range Operating	10 - 90% RH (non-condensing)
Max Operating Temperature	35 °C
Min Operating Temperature	10 °C
Expansion / Connectivity
Bays	2 (total) / 2 (free) x internal 3.5" 1 (total) / 1 (free) x external 5.25" Slim Line
Interfaces	1 x USB-C 3.2 Gen 2x2 (1 in front) (charging) 4 x USB 3.2 Gen 2 (4 in front) (one of them is charging) 1 x headphones/microphone (1 front) (CTIA and OMTP headset support) 1 x audio line-out/line-in 2 x DisplayPort 1.4a 3 x USB 2.0 (3 rear) (two of them with wake functionality) 3 x USB 3.2 Gen 1 (3 rear) 1 x LAN (Gigabit Ethernet) - RJ-45 2 x HDMI
Slots	1 (total) / 1 (free) x M.2 Card - 2230 (for wireless module) 2 (total) / 1 (free) x M.2 Card - 2280 (for internal storage) 2 (total) / 2 (free) x PCIe 3.0 x1 1 (total) / 1 (free) x PCIe 3.0 x16 (x4 mode) 1 (total) / 1 (free) x PCIe 4.0 x16
General
Embedded Security	Trusted Platform Module (TPM 2.0) Security Chip
Localization	Language: English / region: United States
Product Form Factor	SFF
Sensors	HP Tamper Lock
Type	Personal computer
Graphics Controller
Graphics Processor	Intel UHD Graphics 770 Dynamic Video Memory Technology
HDCP Compatible	Yes
Video Interfaces	HDMI, DisplayPort
Hard Drive
Capacity	1 x 512 GB
Features	NVM Express (NVMe), triple-level cell (TLC)
Interface Type	PCI Express 4.0
Type	SSD - M.2 2280
Input Device
Type	Keyboard, no mouse
Keyboard
Keyboard Name	HP 320K
Localization & Layout	US
Miscellaneous
Compliant Standards	FCC Class B certified, ICES-003, CCC, FIPS 140-2 Level 2, RoHS, UL 60950-1, CSA C22.2 No. 60950-1-07, WEEE, KCC Class B, Common Criteria EAL4+, CECP, VCCI Class B, SEPA, low halogen, UL 62368-1, CAN/CSA-C22.2 No. 62368-1-14, IEEE 1680.1
Security Slot Type	Kensington security slot
Theft/Intrusion Protection	Security lock slot (cable lock sold separately), padlock loop, chassis intrusion sensor
Monitor
Monitor Type	None.
Networking
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller	Intel I219-LM
Features	Wake on LAN (WoL), ACPI support, auto-uplink (auto MDI/MDI-X), MU-MIMO Support, PXE 2.1 support
Remote Management Protocol	SNMP 2
Operating System / Software
OS Provided	Windows 11 Pro English
Software	HP Support Assistant, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP Client Catalog (free download), HP Setup Integrated OOBE, HP Notifications, HP Connection Optimizer, HP Sure Click, HP Privacy Settings, HP Cloud Recovery, HP Sure Sense, HP Sure Admin, HP QuickDrop, HP Client Management Script Library (free download), HP BIOSphere Gen6, HP Desktop Support Utilities, HP Image Assistant Gen5 (free download), HP Smart Support, HP Manageability Integration Kit (free download), HP Connect for Microsoft Endpoint Manager, HP Patch Assistant (free download), HP Sure Recover Gen5, HP Sure Run Gen5, HP Services Scan, HP Sure Start Gen7, HP Driver Packs (free download)
Optical Storage
Type	No optical drive
Power
Device Type	Power supply
Voltage Required	AC 90-264 V (50/60 Hz)
Processor / Chipset
Chipset Type	Intel Q670
Clock Speed	2.1 GHz (P-core) / 1.6 GHz (E-core)
CPU	Intel Core i7 (12th Gen) 12700
CPU Qty	1
CPU Upgradability	Upgradable
L2 cache	12 MB
Max CPU Qty	1
Max Turbo Speed	4.9 GHz (P-core) / 3.6 GHz (E-core)
Number of Cores	12-core
Processor Main Features	Intel Turbo Boost Technology
RAM
Configuration Features	2 x 16 GB
Effective Memory Speed	2400 MHz
Form Factor	DIMM 288-pin
Installed Size	32 GB (installed) / 128 GB (max)
Rated Memory Speed	2400 MHz
Slots	4 (total) / 2 (empty)
Technology	DDR5 SDRAM
Storage Controller
Channel Qty	4
Controller Interface Type	SATA-600 / NVMe
Type	1 x SATA/NVMe
Sustainability Information
TCO Certified	TCO Certified Desktops 9
