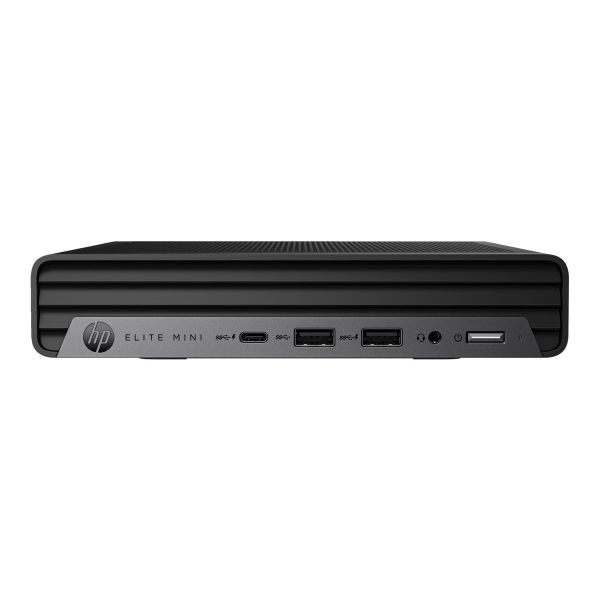

HP Elite 600 G9 - Mini Core i5 13500T / up to 4.6 GHz

Be the first to review this product

Availability: Out of stock

SKU

A24A9UC#ABA

UPC Code

198122917495

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The HP Elite Mini 600 Desktop PC supports your business's hybrid workstyle with right technology, security, and a wide selection of configurable ports. The HP Elite Mini 600 Desktop PC delivers the performance needed to for your enterprise workload, while still being small enough to allow you to take it with you between the home and the office. Equipped with a powerful Intel Processor, DDR5 memory, and smart deployment options, this is the right PC for desktop users needing flexibility in where they work.

Specifications

General Information
Category	Desktop computers
Description	HP Elite 600 G9 - Mini Core i5 13500T / up to 4.6 GHz - RAM 16 GB - SSD 256 GB - NVMe, TLC - UHD Graphics 770 - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 - Win 11 Pro - monitor: none
Manufacturer	HP, Inc.
UNSPSC	43211507
Main Specifications
Chassis / Form Factor	Ultra small form factor
Dimensions & Weight / Depth	17.5 cm
Dimensions & Weight / Height	3.4 cm
Dimensions & Weight / Weight	1.42 kg
Dimensions & Weight / Width	17.7 cm
Display / Type	None.
Hard Drive / Capacity	256 GB
Header / Brand	HP
Header / Country Kits	United States
Header / Localization	English
Mainboard / Chipset Type	Intel Q670
Miscellaneous / Product Color	Black
Networking / Data Link Protocol	Bluetooth 5.3 Ethernet Fast Ethernet Gigabit Ethernet IEEE 802.11a IEEE 802.11ac IEEE 802.11ax (Wi-Fi 6E) IEEE 802.11b IEEE 802.11g IEEE 802.11n
Networking / Wireless LAN Supported	Yes
Networking / Wireless Protocol	802.11a/b/g/n/ac/ax (Wi-Fi 6E) Bluetooth 5.3
Optical Storage / Drive Type	No optical drive
Optical Storage / Type	None
OS Provided / Type	Windows 11 Pro
Packaged Quantity	1
Processor / Generation	13
Processor / Manufacturer	Intel
Processor / Number of Cores	14-core
Processor / Processor Number	I5-13500T
Processor / Type	Core i5
RAM / Form Factor	SO-DIMM 262-pin
RAM / Memory Speed	2400 MHz
RAM / Technology	DDR5 SDRAM
System / Hard Drive Capacity	256 GB
System / Type	Personal computer
Video Output / Graphics Processor	Intel UHD Graphics 770
Video Output / HDCP compatible	Yes
Audio Output
Compliant Standards	High Definition Audio
Max Sampling Rate	192 kHz
Sound Output Mode	Stereo
Cache Memory
Cache Per Processor	24 MB
Installed Size	L3 cache - 24 MB
Dimensions & Weight
Depth	17.5 cm
Height	3.4 cm
Weight	1.42 kg
Width	17.7 cm
Dimensions & Weight (JTFpping)
JTFpping Depth	13.2 cm
JTFpping Height	23.5 cm
JTFpping Weight	2.95 kg
JTFpping Width	49.8 cm
Environmental Parameters
Humidity Range Operating	10 - 90% RH
Max Operating Temperature	35 °C
Min Operating Temperature	10 °C
Expansion / Connectivity
Bays	1 (total) / 1 (free) x internal 2.5"
Interfaces	1 x USB-C 3.2 Gen 2x2 (charging) 5 x USB 3.2 Gen 2 (2 front, 3 rear) (two of them with wake functionality, one of them is charging) 1 x headphones/microphone (CTIA and OMTP headset support) 2 x DisplayPort 1.4a 1 x HDMI 1 x LAN (Gigabit Ethernet) 1 x VGA
Slots	1 (total) / 0 (free) x M.2 Card - 2230 (for wireless module) 2 (total) / 1 (free) x M.2 Card - 2280 (for internal storage)
General
Built-in Devices	Speaker
Embedded Security	Trusted Platform Module (TPM 2.0) Security Chip
Localization	Language: English / region: United States
Product Form Factor	Mini
Sensors	HP Tamper Lock
Type	Personal computer
Graphics Controller
Graphics Processor	Intel UHD Graphics 770 Dynamic Video Memory Technology
HDCP Compatible	Yes
Video Interfaces	VGA, HDMI, DisplayPort
Hard Drive
Capacity	1 x 256 GB
Features	NVM Express (NVMe), triple-level cell (TLC)
Interface Type	PCI Express
Type	SSD - M.2
Miscellaneous
Compliant Standards	FCC Class B certified, ICES-003, CCC, FIPS 140-2 Level 2, RoHS, UL 60950-1, CSA C22.2 No. 60950-1-07, WEEE, KCC Class B, Common Criteria EAL4+, CECP, VCCI Class B, CP65, SEPA, low halogen, UL 62368-1, CAN/CSA-C22.2 No. 62368-1-14, IEEE 1680.1
Security Slot Type	Kensington security slot
Theft/Intrusion Protection	Security lock slot (cable lock sold separately), retractable padlock loop
Monitor
Monitor Type	None.
Networking
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.11d, IEEE 802.1x, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.11h, IEEE 802.11e, IEEE 802.11k, IEEE 802.3az, IEEE 802.11r, IEEE 802.11v
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3
Ethernet Controller	Intel I219-LM
Features	Wake on LAN (WoL), auto-uplink (auto MDI/MDI-X), MU-MIMO Support, PXE 2.1 support, dual stream (2x2)
Remote Management Protocol	SNMP 2
Wireless LAN Supported	Yes
Wireless NIC	Intel Wi-Fi 6E AX 211
Operating System / Software
OS Provided	Windows 11 Pro English
Software	HP Support Assistant, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP Client Catalog (free download), HP Setup Integrated OOBE, HP Notifications, HP Connection Optimizer, HP Privacy Settings, HP Cloud Recovery, HP QuickDrop, HP Client Management Script Library (free download), HP BIOSphere Gen6, myHP, Touchpoint Customizer for Commercial, HP Desktop Support Utilities, HP Image Assistant Gen5 (free download), HP Easy Clean, HP Smart Support (free download), HP Manageability Integration Kit (free download), HP Patch Assistant (free download)
Optical Storage
Type	No optical drive
Power
Device Type	Power adapter
Efficiency	89% (230VAC), 88% (115VAC)
Power Factor Correction	Yes (active)
Power Provided	90 watt
Voltage Required	AC 100-240 V (50/60 Hz)
Processor / Chipset
Chipset Type	Intel Q670
CPU	Intel Core i5 (13th Gen) 13500T
CPU Qty	1
CPU Upgradability	Upgradable
Max CPU Qty	1
Max Turbo Speed	4.6 GHz
Number of Cores	14-core
Processor Main Features	Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache
RAM
Configuration Features	1 x 16 GB
Effective Memory Speed	2400 MHz
Form Factor	SO-DIMM 262-pin
Installed Size	16 GB (installed) / 64 GB (max)
Rated Memory Speed	2400 MHz
Slots	2 (total) / 1 (empty)
Technology	DDR5 SDRAM
Storage Controller
Controller Interface Type	SATA-600 / NVMe
Type	1 x SATA/NVMe
Sustainability Information
ENERGY STAR Certified	Yes
TCO Certified	TCO Certified Desktops 9
