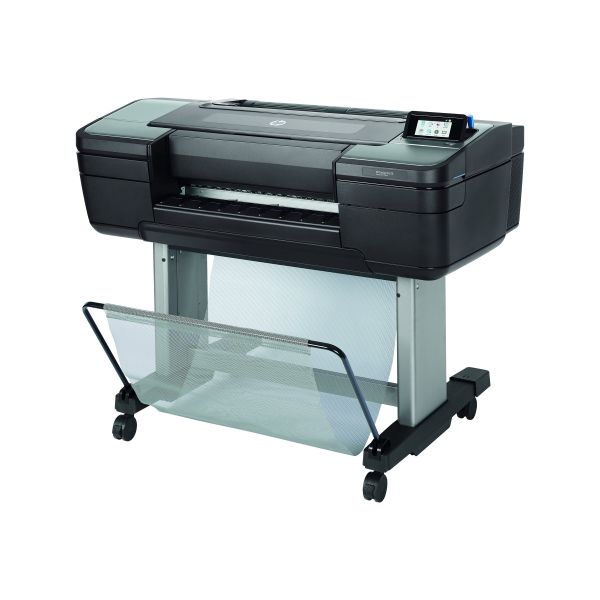

HP DesignJet Z6 PostScript
- Model size: 24 in
- Memory: 128 GB (virtual) 1
- Hard Drive: 500 GB self-encrypting
- Print speed maximum: Fast: 720 ft/hr on plain media; Normal: 164 ft/hr on coated media; Best: 85 ft/hr on glossy media 2
- Resolution: Up to 2400 x 1200 optimized dpi
- PRECISE—Clearly distinguish subtle details: Produce prints with clear details and high-contrast color with high-definition HP printheads—no need for light inks with dual drop technology. Get smooth gradients with HP Pixel Control. HP Vivid Photo Inks provide water-/fade-resistant prints. 3
- FAST—Work without delays: Handle complex files with powerful processing architecture and the Adobe PDF Print Engine. 4 Print up to 20% faster 5 with 2400 nozzle-per-inch HP printheads. Cut maps to different sizes in fewer steps with an integrated vertical trimmer. 6
- SECURE—Protect your work and your information: Built-in security features—like HP Secure Boot, Allowlisting, authentication solutions, and HP JetAdvantage Security manager—help safeguard your printers and your data and preserve confidentiality.
| General Information | |
|---|---|
| Category | Inkjet printers |
| Description | HP DesignJet Z6 PostScript - 24" large-format printer - color - ink-jet - Roll (61 cm) - 2400 x 1200 dpi - up to 1.4 min/page (mono) / up to 1.4 min/page (color) - capacity: 1 roll - Gigabit LAN, USB host - cutter |
| Manufacturer | HP, Inc. |
| UNSPSC | 43212104 |
| Main Specifications | |
| Dimensions & Weight / Depth | 69.5 cm |
| Dimensions & Weight / Height | 99.8 cm |
| Dimensions & Weight / Weight | 66 kg |
| Dimensions & Weight / Width | 129.3 cm |
| Document & Media Handling / Large Format Printer Size | 24" |
| Header / Brand | HP |
| Header / Country Kits |
|
| Header / Localization |
|
| Miscellaneous / Product Color | Black |
| Networking / Type | Print server |
| Office Machine / Functions | Printer |
| Office Machine / Printing Output Type | Color |
| Office Machine / Printing Technology | Ink-jet |
| Office Machine / Type | Printer |
| Packaged Quantity | 1 |
| PC Connectivity / PC Connection |
|
| Power Device / Type | Power supply |
| Printer / Connectivity Technology | Wired |
| Printer / PostScript Support | Standard |
| Printer / Total Media Capacity | 1 roll |
| Printer / Type | Large-format printer |
| Scanner / Type | None |
| Service & Support / Type | 1-year warranty |
| Dimensions & Weight | |
| Depth | 69.5 cm |
| Height | 99.8 cm |
| Weight | 66 kg |
| Width | 129.3 cm |
| Dimensions & Weight (JTFpping) | |
| Depth (JTFpping) | 76.6 cm |
| Height (JTFpping) | 71.8 cm |
| Weight (JTFpping) | 97 kg |
| Width (JTFpping) | 144 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 5 °C |
| Sound Emission (Idle) | 33 dBA |
| Sound Emission (Operating) | 42 dBA |
| Environmental Standards | |
| ENERGY STAR | Yes |
| EPEAT Compliant | EPEAT Silver |
| Expansion / Connectivity | |
| Connections |
|
| General | |
| Localization | English, French, Portuguese, Spanish / Canada, Latin America, United States |
| Printer Type | 24" large-format printer - ink-jet - color |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Media Handling | |
| Max Media Size | Roll (61 cm) |
| Max Media Size (Custom) | 610 mm x 1676 mm |
| Max Printing Width | 610 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (61 cm) weight: 80 g/m² - 500 g/m² |
| Media Sizes | ANSI A (Letter) (216 x 279 mm), A4 (210 x 297 mm), A3 (297 x 420 mm), A2 (420 x 594 mm), A1 (594 x 841 mm), ANSI B (Ledger) (279 x 432 mm), ANSI C (432 x 559 mm), ANSI D (559 x 864 mm), 610 x 1676 mm, 210 x 279 mm, Roll (61 cm) |
| Media Thickness Range | Up to 0.8 mm |
| Media Type | Photo paper, fine art paper, bond paper, film, backlit paper, glossy paper, poster/banner paper, matte paper |
| Media Weight | 80 g/m² - 500 g/m² |
| Min Media Size (Custom) | 210 mm x 279 mm |
| Total Media Capacity | 1 roll |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, CSA, CCC, PSB, IRAM, RoHS, EN 60950-1, ICES Class B, CCC Class B, WEEE, REACH, KCC Class B, LVD, ERP, EMC Class B, VCCI Class B, EAC, BIS, SABS Class B, ACMA, RSM |
| Consumables Included |
|
| Included Accessories | Spindle, media bin, stand |
| Networking | |
| Networking | Print server |
| Power | |
| Frequency Required | 50/60 Hz |
| Power Consumption Operational | 100 Watt |
| Power Consumption Sleep | 0.3 Watt |
| Power Consumption Stand by | 32 Watt |
| Power Device | Power supply - internal |
| Printer | |
| Connectivity Technology | Wired |
| Cutter | Yes |
| Ink Cartridge Configuration | 6 cartridges (1 each: cyan, magenta, yellow, gray, photo black, matte black) |
| Ink Palette Supported (Colors) | 6-ink - cyan, magenta, yellow, matte black, photo black, chromatic red |
| Ink Type | HP Vivid Photo Inks |
| Inkjet Technology | HP Thermal Inkjet |
| Interface | Gigabit LAN, USB host |
| Language Simulation | PostScript 3, HP RTL, CALS G4, HP GL/2, TIFF, PDF 1.7, JPEG |
| Max Resolution (B&W) | 2400 x 1200 dpi |
| Max Resolution (Color) | 2400 x 1200 dpi |
| Nozzle Configuration | 2112 nozzles |
| PostScript Support | Standard |
| Print Speed |
|
| Printer Features | Print from mobile device, print from e-mail |
| Software / System Requirements | |
| Software Included | Drivers & Utilities, HP Web JetAdmin, HP Click, HP JetAdvantage Security Manager, HP Partner Link, HP MPS, HP DesignJet Utility, HP Color Center |
| Storage | |
| Hard Drive | 500 GB |
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$249.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
secure transaction
Quick Details
- 24" large-format printer
- color
- ink-jet
- Roll (61 cm)
- 2400 x 1200 dpi
