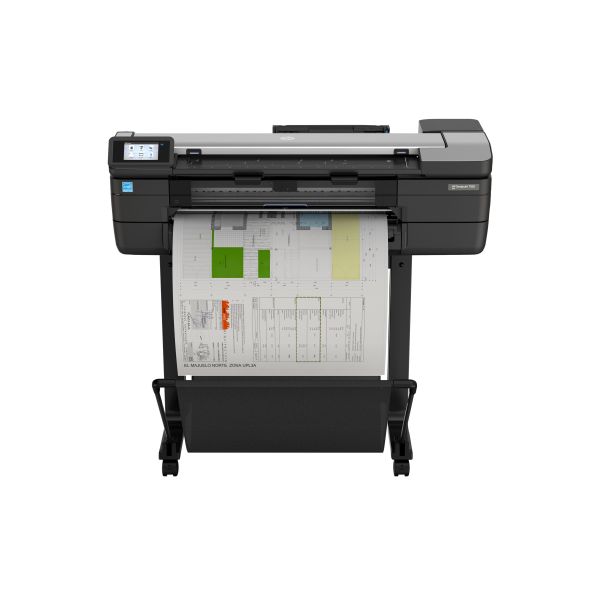

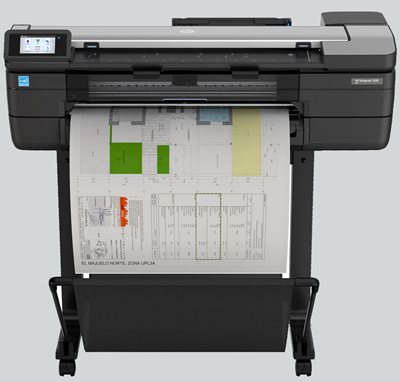

HP DesignJet T830 - 24" multifunction printer
- Fast, agile, intuitive print/scan/copy The most compact 24-in and 36-in large-format MFP 1 —with a sleek integrated design—is an ideal fit for the office and construction job site, and simplifies printing with HP Click printing software. Print from a smartphone or tablet with HP Mobile Printing. 2:
- HP DesignJet quality and reliability This reinforced, all-in-one printer with smart scanning handles all your document management from office to construction site. Get HP DesignJet print quality in half-size documents with the A4/A3 input tray. A redesigned stand reduces C02e. 3:
- Immediately share meeting results Enhance communication with peers/partners. With an intuitive single touchscreen, you can scan, copy, and share drawings from the HP DesignJet T830 MFP immediately. Scan/email from the front panel. Use HP Smart app 4 to email contacts or post to cloud from your smartphone, tablet.:
- HP Click Optimize media usage and costs and, with one-click 5 , print the most common file formats from a PC or Mac to the HP DesignJet T830 MFP. Ideal for CAD documents.:
- HP Smart app Print your jobs and manage your plotter from virtually anywhere, anytime with the HP Smart app.:
- HP Bright Office Inks Designed to support the way you work, HP Bright Office Inks render outstanding quality together with bright, finely distinguishable colors. Meet last-minute deadlines with inks that deliver high-quality results and perform to your expectations.:
| General Information | |
|---|---|
| Category | Multifunction machines |
| Description | HP DesignJet T830 - 24" multifunction printer - color - ink-jet - 610 x 2770 mm (original) - Roll (61 cm) (media) - up to 0.42 min/page (printing) - Gigabit LAN, Wi-Fi(n) |
| Manufacturer | HP, Inc. |
| UNSPSC | 44101503 |
| Main Specifications | |
| Dimensions & Weight / Depth | 62.9 cm |
| Dimensions & Weight / Height | 115.5 cm |
| Dimensions & Weight / Weight | 62.5 kg |
| Dimensions & Weight / Width | 140.3 cm |
| Document & Media Handling / Large Format Printer Size | 24" |
| Header / Brand | HP |
| Header / Country Kits |
|
| Header / Localization |
|
| Miscellaneous / Product Color |
|
| Office Machine / Functions |
|
| Office Machine / Printing Output Type | Color |
| Office Machine / Printing Technology | Ink-jet |
| Office Machine / Type | Printer / copier / scanner |
| Packaged Quantity | 1 |
| PC Connectivity / PC Connection |
|
| PC Connectivity / PC Connection Availability | Yes |
| Service & Support / Type | 1-year warranty |
| Connections | |
| Interfaces | 1 x Gigabit LAN - RJ-45 |
| Operating System Support | Apple Mac OS, Windows 8 |
| Software Included | Drivers & utilities |
| Copying | |
| Max Copying Resolution | Up to 600 dpi (mono) / up to 600 dpi (color) |
| Max Document Enlargement | 400% |
| Max Document Reduction | 25% |
| Maximum Copies | 99 |
| Dimensions & Weight | |
| Depth | 62.9 cm |
| Height | 115.5 cm |
| Weight | 62.5 kg |
| Width | 140.3 cm |
| Dimensions & Weight (JTFpping) | |
| JTFpping Depth | 57.5 cm |
| JTFpping Height | 64.6 cm |
| JTFpping Weight | 137 kg |
| JTFpping Width | 157.8 cm |
| Document & Media Handling | |
| Document & Media Handling Details | Input tray - 1 roll - Roll (61 cm) |
| Max Media Size | Other |
| Max Original Size | 610 x 2770 mm |
| Min Media Size | 210 x 279 mm |
| Min Original Size | 127 x 127 mm |
| Speed Details |
|
| Supported Media Sizes | ANSI A (Letter) (216 x 279 mm), A4 (210 x 297 mm), A3 (297 x 420 mm), A2 (420 x 594 mm), A1 (594 x 841 mm), A0 (841 x 1189 mm), ANSI B (Ledger) (279 x 432 mm), 330 x 482 mm, ANSI C (432 x 559 mm), ANSI E (864 x 1118 mm), ANSI D (559 x 864 mm), Roll (91.4 cm x 45.7 m), 210 x 279 mm, 914 x 1897 mm |
| Supported Media Type | Recycled paper, photo paper, coated paper, bond paper, film, vellum paper, heavy-weight paper, glossy photo paper, satin photo paper, semi-gloss photo paper |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 5 °C |
| Sound Emission | 48 dBA (operating) |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
| EPEAT Compliant | EPEAT Silver |
| General | |
| AirPrint Enabled | Yes |
| Connection Availability | Yes |
| Device Type | 24" multifunction printer |
| Interface | Gigabit LAN, Wi-Fi(n) |
| Localization | English, French, Portuguese, Spanish / Canada, Latin America, United States |
| Office Machine Features | Scan to e-mail, scan to network, scan to Cloud, automatic cutter |
| Printing Technology | Ink-jet - color |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Memory | |
| Standard Memory | 1 GB |
| Miscellaneous | |
| Compliant Standards | CSA, VCCI, GOST, CCC, EMC, PSB, FCC, IRAM, RoHS, EN 60950-1, KCC, WEEE, ICES, REACH, LVD, IPv6 Ready |
| Consumables Included |
|
| Included Accessories | Stand, spindles |
| Power | |
| Power Consumption Operational | 35 watt |
| Power Consumption Sleep | 3.5 watt |
| Voltage Required | AC 120/230 V (50/60Hz) |
| Printing | |
| Color | 4-ink |

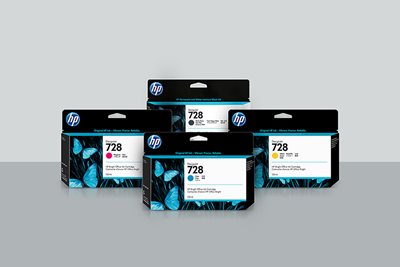

| Ink Cartridge Configuration | 4 cartridges (1 each: cyan, magenta, yellow, pigment black) |
| Ink Palette Supported (Colors) | Cyan, magenta, yellow, pigment black |
| Inkjet Technology | HP Thermal Inkjet |
| Max Printing Resolution | Up to 2400 x 1200 dpi (mono) / up to 2400 x 1200 dpi (color) |
| Max Printing Speed | Up to 0.42 min/page (mono) / up to 0.42 min/page (color) |
| Minimum Ink Droplet Size | 6 pl |
| Nozzle Configuration | 1376 nozzles |
| Printer Drivers / Emulations | TIFF, HPGL/2, HP-RTL, PCL 3 GUI, CALS G4, URF |
| Scanning | |
| Color Depth | 24-bit |
| Grayscale Depth | 8-bit |
| Optical Resolution | 600 x 600 dpi |
| Scan Element | CIS |
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
secure transaction
Quick Details
- color
- ink-jet
- 610 x 2770 mm (original)
- Roll (61 cm) (media)
- up to 0.42 min/page (printing)
