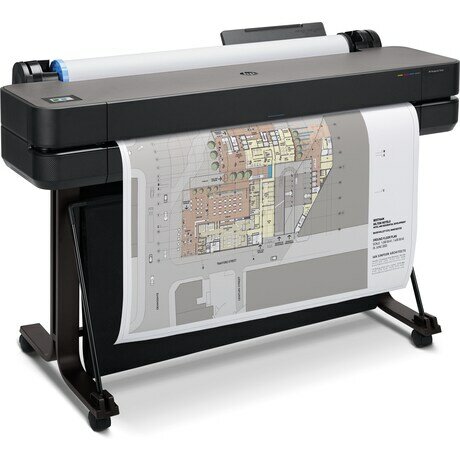

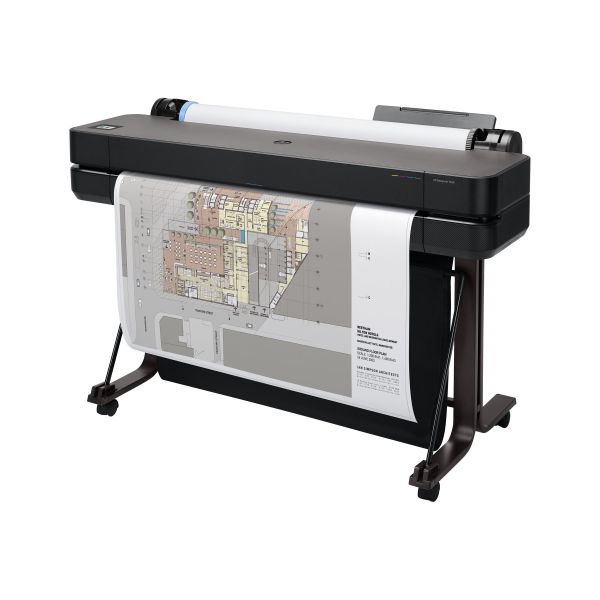

HP DesignJet T630 - 2025 Edition
The world's smallest wide-format printer with a built-in stand, is designed to fit your office, budget, and the way you work. Print multi-size projects with ease. Print your A1 plot as fast as 30 seconds. 1 GB memory. Dynamic security enabled printer Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.
- INTUITIVE—Easy, effortless printing: Print multi-size A3/B and A1/D or A0/E projects automatically, without manually switching the media source.
- RESPONSIBLY DESIGNED—Reduce energy and plastic use: Save 65% energy | 1 | with the printer on/off auto scheduler and enjoy efficient ink maintenance routines | 2 | .
- OPTIMIZED—Fits the way you work: Avoid waiting by the printer with high-speed printing as fast as 30 seconds per A1/D plot.
| General Information | |
|---|---|
| Category | Inkjet printers |
| Description | HP DesignJet T630 - 2025 Edition - 36" large-format printer - color - ink-jet - Roll A1 (61.0 cm x 45.7 m), A1, ANSI D - 2400 x 1200 dpi - up to 0.5 min/page (mono) / up to 0.5 min/page (color) - USB 2.0, Gigabit LAN, Wi-Fi(n) - cutter |
| Manufacturer | HP, Inc. |
| UNSPSC | 43212104 |
| Main Specifications | |
| Dimensions & Weight / Depth | 60.5 cm |
| Dimensions & Weight / Height | 93.2 cm |
| Dimensions & Weight / Weight | 34.7 kg |
| Dimensions & Weight / Width |
|
| Document & Media Handling / Large Format Printer Size | 36" |
| Header / Brand | HP |
| Header / Country Kits |
|
| Header / Localization |
|
| Miscellaneous / Product Color |
|
| Networking / Type | Print server |
| Office Machine / Functions | Printer |
| Office Machine / Printing Output Type | Color |
| Office Machine / Printing Technology | Ink-jet |
| Office Machine / Type | Printer |
| Packaged Quantity | 1 |
| PC Connectivity / PC Connection |
|
| Power Device / Type | Power supply |
| Printer / Connectivity Technology |
|
| Printer / Type | Large-format printer |
| Scanner / Type | None |
| Service & Support / Type | 1-year warranty |
| Dimensions & Weight | |
| Depth | 60.5 cm |
| Height | 93.2 cm |
| Weight | 34.7 kg |
| Width | 132 cm |
| Dimensions & Weight (JTFpping) | |
| Depth (JTFpping) | 57.5 cm |
| Height (JTFpping) | 59 cm |
| Weight (JTFpping) | 56 kg |
| Width (JTFpping) | 147 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% RH |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 5 °C |
| Sound Emission (Idle) | 16 dBA |
| Sound Emission (Operating) | 42 dBA |
| Environmental Standards | |
| ENERGY STAR | Yes |
| EPEAT Compliant | EPEAT Gold |
| Expansion / Connectivity | |
| Connections |
|
| General | |
| Localization | English, French, Spanish, Portuguese / United States, Canada, Latin America |
| Printer Type | 36" large-format printer - ink-jet - color |
| Manufacturer Warranty | |
| Service & Support | Limited hardware warranty - 1 year |
| Media Handling | |
| Max Media Size | Roll A1 (61.0 cm x 45.7 m), A1 (594 x 841 mm), ANSI D (559 x 864 mm) |
| Max Media Size (Custom) | 914 mm x 45.7 m |
| Media Sizes | A4 (210 x 297 mm), A3 (297 x 420 mm), A2 (420 x 594 mm), A1 (594 x 841 mm), A0 (841 x 1189 mm), ANSI A (Letter) (216 x 279 mm), ANSI B (Ledger) (279 x 432 mm), ANSI C (432 x 559 mm), ANSI D (559 x 864 mm), ANSI E (864 x 1118 mm) |
| Media Thickness Range | Up to 0.3 mm |
| Media Type | Bond paper, photographic paper, technical paper, self-adhesive paper |
| Media Weight | 60 g/m² - 280 g/m² |
| Min Media Size (Custom) | 210 mm x 279 mm |
| Miscellaneous | |
| Compliant Standards | DEEE, EU RoHS, RoHS UEEA, REACH, ERP, FCC Class B certified, ICES Class B, EMC Class B, RED, ACMA Class B, RSM Class B, CCC Class B, VCCI Class B, KCC Class B, UL ECOLOGO certified inks, EU Low Voltage Directive, EN 60950-1, EN 62368-1, EAC, UA, PSB, CCC, IRAM, BIS, NYCE |
| Consumables Included |
|
| Included Accessories | Stand, automatic sheet feeder, spindle, setup poster |
| Networking | |
| Networking | Print server |
| Security Protocols & Features | SNMP 1, SNMP 2, 802.1x |
| Power | |
| Frequency Required | 50/60 Hz |
| Power Consumption Operational | 35 Watt |
| Power Consumption Sleep | 2.1 Watt |
| Power Device | Power supply - internal |
| Voltage Required | AC 100-240 V |
| Printer | |
| AirPrint Enabled | Yes |
| Connectivity Technology | Wireless |
| Cutter | Yes |
| Ink Cartridge Configuration | 4 cartridges (1 each: cyan, magenta, yellow, pigment black) |
| Ink Palette Supported (Colors) | 4-ink - cyan, magenta, yellow, pigment black |
| Inkjet Technology | HP Thermal Inkjet |
| Interface | USB 2.0, Gigabit LAN, Wi-Fi(n) |
| Language Simulation | HP RTL, CALS G4, HP GL/2, URF, JPEG |
| Max Resolution (B&W) | 2400 x 1200 dpi |
| Max Resolution (Color) | 2400 x 1200 dpi |
| Minimum Ink Droplet Size | 12 pl (black), 5.5 pl (color) |
| Nozzle Configuration | 1376 nozzles |
| Print Speed |
|
| Printer Features | 6.2 kg max roll weight |
| RAM | |
| RAM Installed (Max) | 1 GB / 1 GB (max) |
| Software / System Requirements | |
| Software Included | HP Click |
