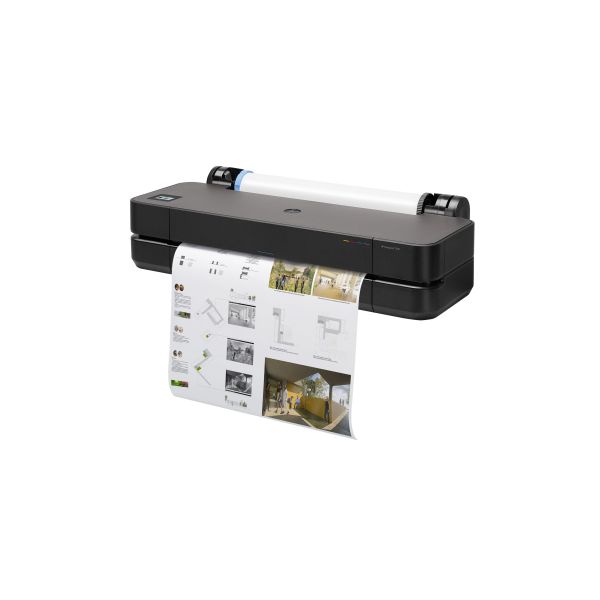

HP DesignJet T230 - 2025 Edition
- Model size: 24 in
- Memory: 512 MB
- Hard Drive: None
- Print speed maximum: 35 sec/page on D, 68 D prints per hour 1
- Resolution: Up to 2400 x 1200 optimized dpi
- RESPONSIBLY DESIGNED—Reduce energy and plastic use: Save space with the world's smallest plotters. 2 A more sustainable design reduces CO2e up to 7.3 tons/year by units sold by using up to 30% recycled plastic. 4 Use up to 95% less ink for routine maintenance to get extra A1/D pages/month. 5
- OPTIMIZED—Fits the way you work: Avoid waiting with high-speed printing as fast as 35 sec per A1/D plot. Save time from job prep to final print. Print, and manage your plotter, from virtually anywhere, anytime with the HP Smart app. Get quality results with HP Bright Office Inks.
| General Information | |
|---|---|
| Category | Inkjet printers |
| Description | HP DesignJet T230 - 2025 Edition - 24" large-format printer - color - ink-jet - A1, ANSI D - 2400 x 1200 dpi - up to 0.58 min/page (mono) / up to 0.58 min/page (color) - Gigabit LAN, USB 2.0, Wi-Fi |
| Manufacturer | HP, Inc. |
| UNSPSC | 43212104 |
| Main Specifications | |
| Dimensions & Weight / Depth | 44 cm |
| Dimensions & Weight / Height | 28.5 cm |
| Dimensions & Weight / Weight | 21.5 kg |
| Dimensions & Weight / Width | 101.3 cm |
| Document & Media Handling / Large Format Printer Size | 24" |
| Header / Brand | HP |
| Header / Country Kits |
|
| Header / Localization |
|
| Miscellaneous / Product Color |
|
| Networking / Type | Print server |
| Office Machine / Functions | Printer |
| Office Machine / Printing Output Type | Color |
| Office Machine / Printing Technology | Ink-jet |
| Office Machine / Type | Printer |
| Packaged Quantity | 1 |
| PC Connectivity / PC Connection |
|
| Power Device / Type | Power supply |
| Printer / Connectivity Technology |
|
| Printer / Type | Large-format printer |
| Scanner / Type | None |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 44 cm |
| Height | 28.5 cm |
| Weight | 21.5 kg |
| Width | 101.3 cm |
| Dimensions & Weight (JTFpping) | |
| Depth (JTFpping) | 57.5 cm |
| Height (JTFpping) | 40.5 cm |
| Weight (JTFpping) | 27 kg |
| Width (JTFpping) | 115.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% RH |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 5 °C |
| Sound Emission (Idle) | 16 dBA |
| Sound Emission (Operating) | 42 dBA |
| Environmental Standards | |
| ENERGY STAR | Yes |
| EPEAT Compliant | EPEAT Gold |
| Expansion / Connectivity | |
| Connections |
|
| General | |
| Localization | English, French, Spanish, Portuguese / United States, Canada, Latin America |
| Printer Type | 24" large-format printer - ink-jet - color |
| Manufacturer Warranty | |
| Service & Support | Limited hardware warranty - 2 years |
| Media Handling | |
| Max Media Size | A1 (594 x 841 mm), ANSI D (559 x 864 mm) |
| Max Media Size (Custom) | 610 mm |
| Media Sizes | A4 (210 x 297 mm), A3 (297 x 420 mm), A2 (420 x 594 mm), A1 (594 x 841 mm), ANSI A (Letter) (216 x 279 mm), ANSI B (Ledger) (279 x 432 mm), ANSI C (432 x 559 mm), ANSI D (559 x 864 mm) |
| Media Thickness Range | Up to 0.3 mm |
| Media Type | Bond paper, film, technical paper, plain paper, photo paper, glossy paper, self-adhesive paper, semi-gloss paper |
| Media Weight | 60 g/m² - 280 g/m² |
| Min Media Size (Custom) | 210 mm x 279 mm |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, ICES Class B, EMC Class B, RED, ACMA Class B, RSM Class B, CCC Class B, VCCI Class B, KCC Class B, EU RoHS, REACH, WEEE, ERP, UL ECOLOGO certified inks, EU Low Voltage Directive, EN 60950-1, EN 62368-1, EAC, Ukraine, PSB, CCC, IRAM, BIS, NYCE, TLS v1.2 |
| Included Accessories | Spindle, setup poster |
| Networking | |
| Networking | Print server |
| Security Protocols & Features | SNMP 1, SNMP 2, 802.1x |
| Power | |
| Frequency Required | 50/60 Hz |
| Power Consumption Operational | 35 Watt |
| Power Consumption Sleep | 2.1 Watt |
| Power Consumption Stand by | 0.2 Watt |
| Power Device | Power supply - internal |
| Voltage Required | AC 100-240 V |
| Printer | |
| AirPrint Enabled | Yes |
| Connectivity Technology | Wireless |
| Ink Cartridge Configuration | 4 cartridges (1 each: cyan, magenta, yellow, pigment black) |
| Ink Palette Supported (Colors) | 4-ink - cyan, magenta, yellow, pigment black |
| Inkjet Technology | HP Thermal Inkjet |
| Interface | Gigabit LAN, USB 2.0, Wi-Fi |
| Language Simulation | JPEG, URF |
| Max Resolution (B&W) | 2400 x 1200 dpi |
| Max Resolution (Color) | 2400 x 1200 dpi |
| Minimum Ink Droplet Size | 12 pl (black), 5.5 pl (color) |
| Nozzle Configuration | 1376 nozzles |
| Print Speed |
|
| Printer Features | Print from mobile device, 4.1 kg max roll weight, remote print |
| RAM | |
| RAM Installed (Max) | 512 MB / 512 MB (max) |
| Software / System Requirements | |
| Software Included | HP Click |
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$149.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
secure transaction
Quick Details
- 24" large-format printer
- color
- ink-jet
- A1, ANSI D
- 2400 x 1200 dpi
