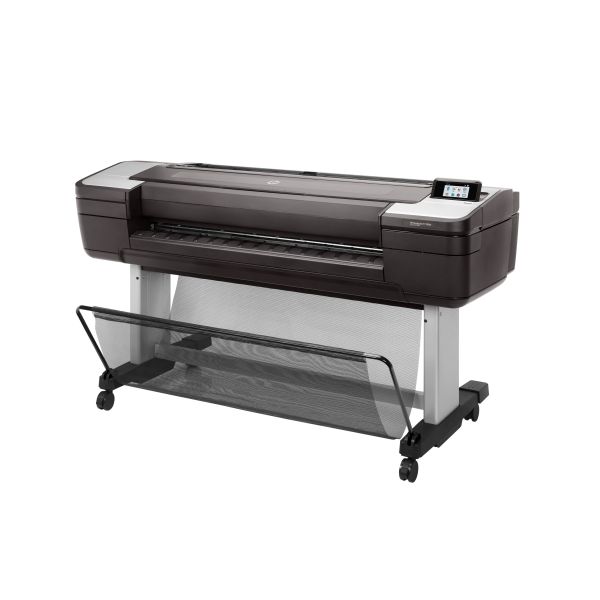

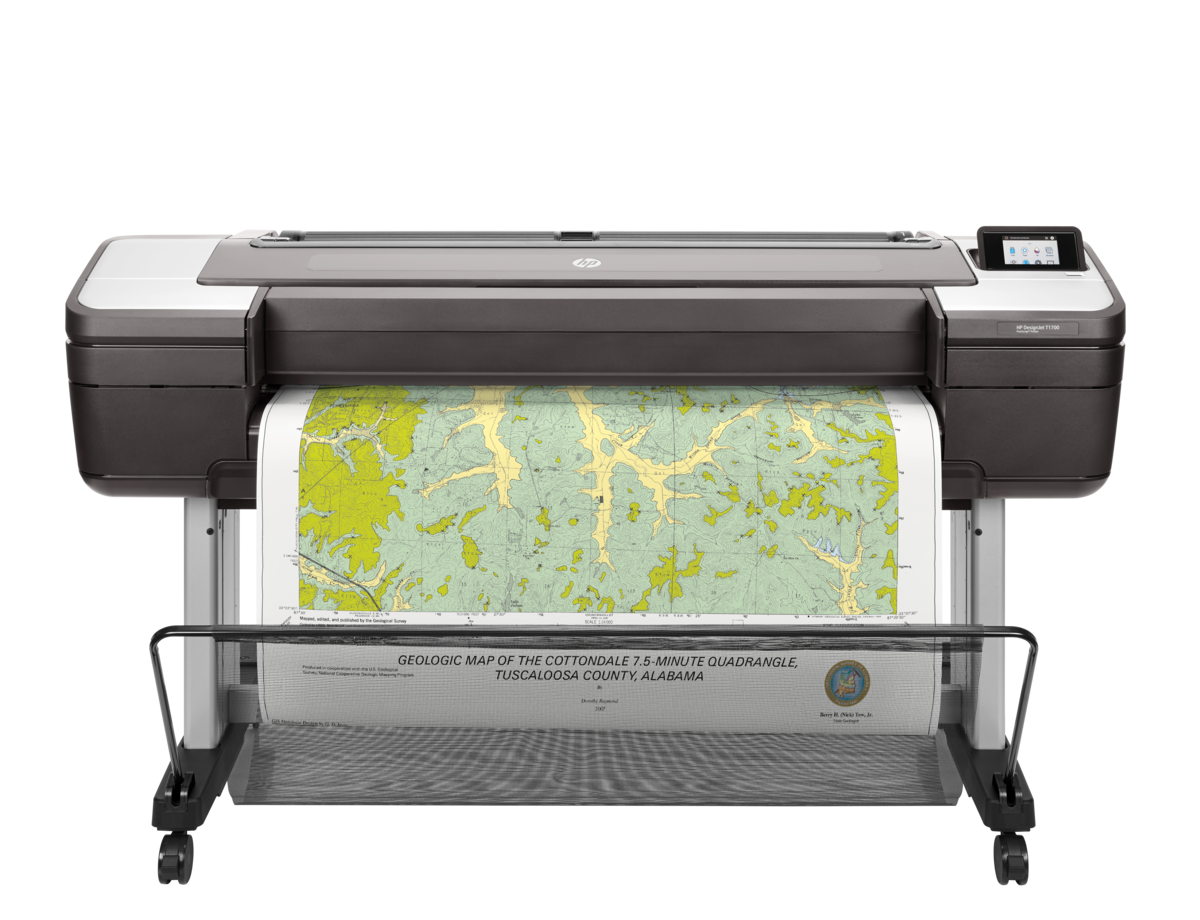

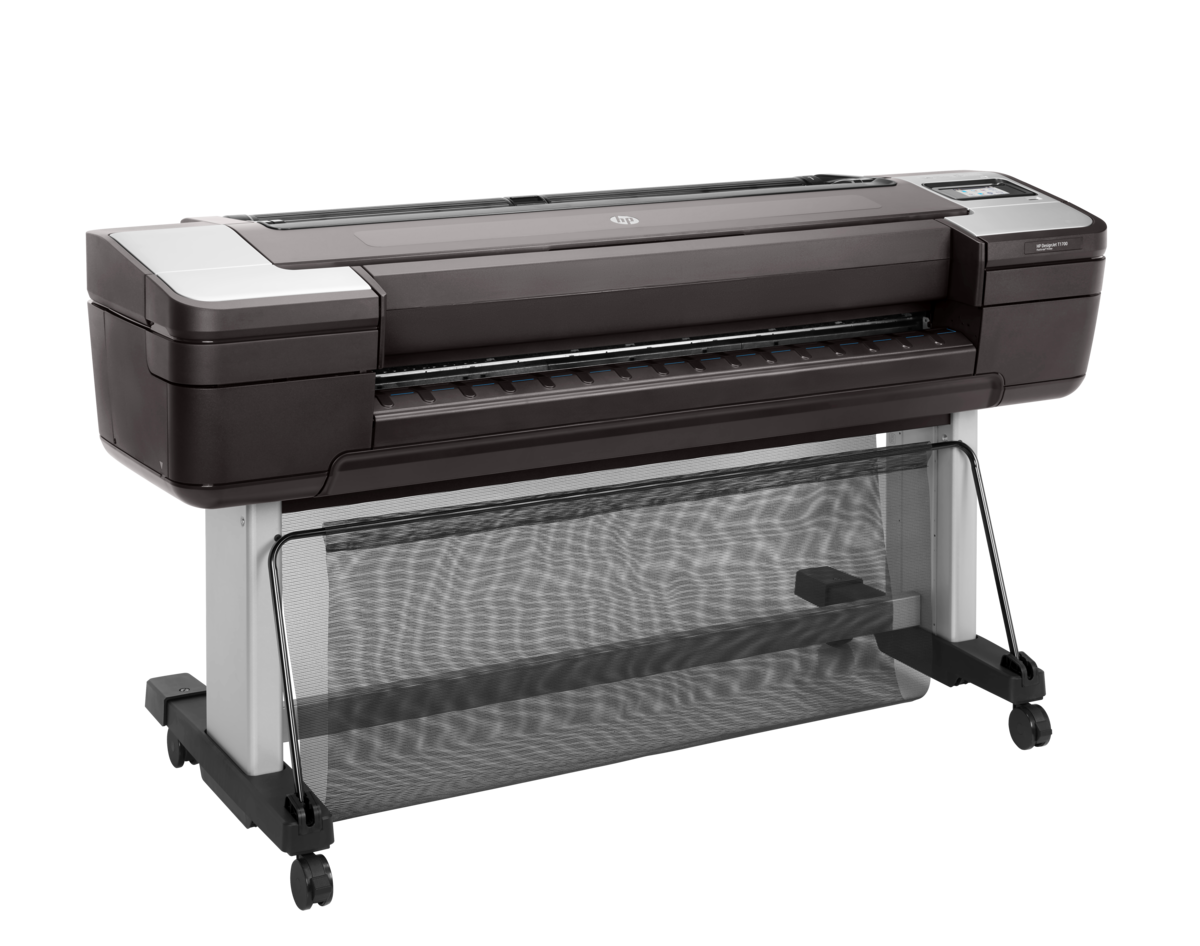

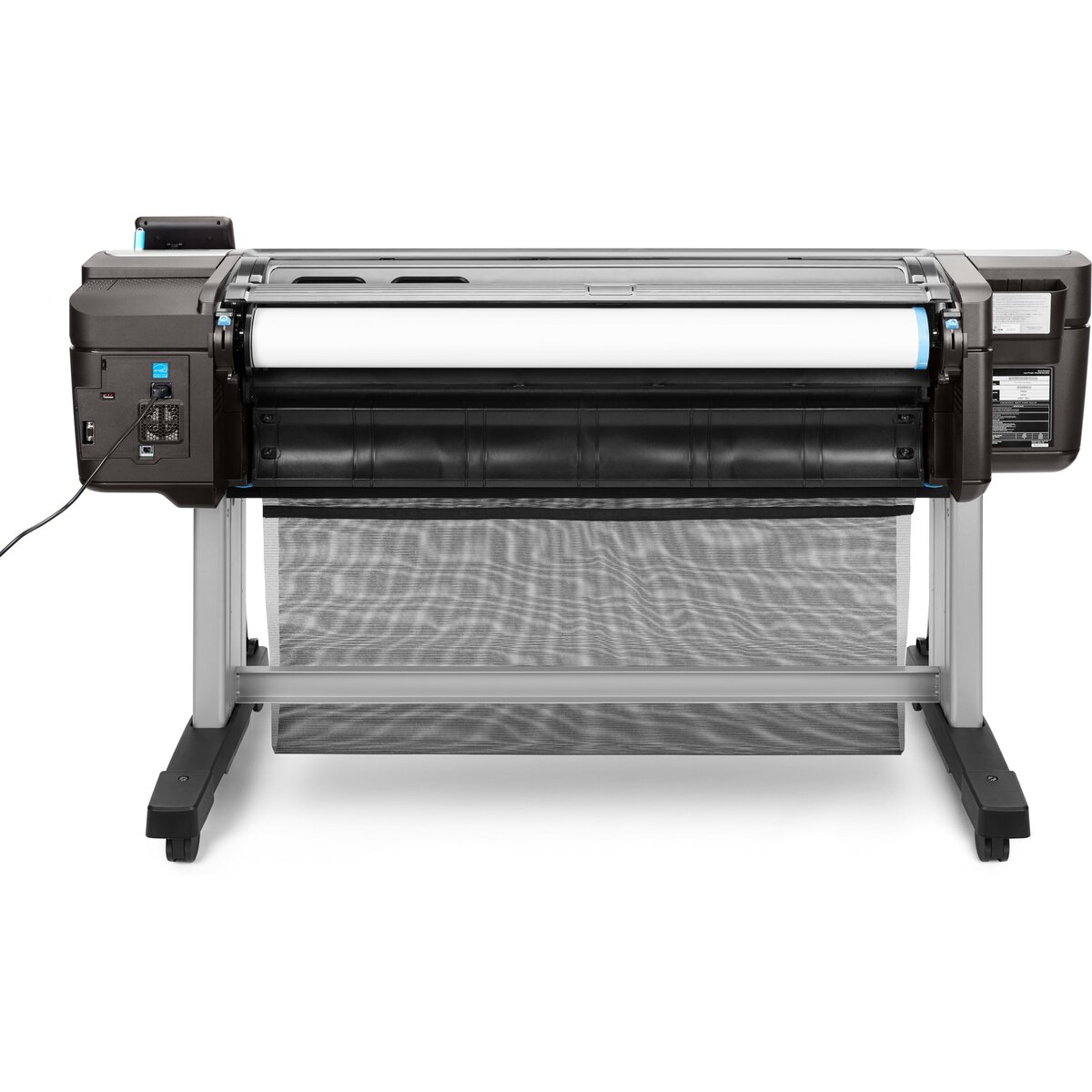

HP DesignJet T1700 - 44" large-format printer
- Model size: 44 in
- Memory: 128 GB (virtual) 1
- Hard Drive: 500 GB self-encrypting
- Print speed maximum: 116 D/hr, 26 sec/D 2
- Resolution: Up to 2400 x 1200 optimized dpi
- SECURE – World-class printer protection with HP Wolf Pro Security: Protect your printer and your data from external or unintended access with advanced security features. Simplify device and fleet management, including security management. Control and optimize printing costs with accounting solutions.
- EFFICIENT—No more PC freezing up: Stay productive—with the Adobe PDF driver 3 , you can handle even the most complex CAD/GIS files without freezing up your PC. Easily print project sets and PDF documents with HP Click printing software.
- ACCURATE—Make better decisions with precise colors: For complex CAD/GIS files, precise colors enable better decisions. Six HP Bright Office Inks provide bright color, bold image quality, color/gray/photo black for soft colors, dark tones. Reproduce layers of data with the Adobe PDF Print Engine. 3
| General Information | |
|---|---|
| Category | Inkjet printers |
| Description | HP DesignJet T1700 - 44" large-format printer - color - ink-jet - 1118 x 1676 mm - 2400 x 1200 dpi - up to 0.55 min/page - Gigabit LAN, USB host - cutter |
| Manufacturer | HP, Inc. |
| UNSPSC | 43212104 |
| Main Specifications | |
| Dimensions & Weight / Depth | 69.5 cm |
| Dimensions & Weight / Height | 99.8 cm |
| Dimensions & Weight / Weight | 72 kg |
| Dimensions & Weight / Width | 180.2 cm |
| Document & Media Handling / Large Format Printer Size | 44" |
| Header / Brand | HP |
| Header / Country Kits |
|
| Header / Localization |
|
| Miscellaneous / Product Color |
|
| Networking / Type | Print server |
| Office Machine / Functions | Printer |
| Office Machine / Printing Output Type | Color |
| Office Machine / Printing Technology | Ink-jet |
| Office Machine / Type | Printer |
| Packaged Quantity | 1 |
| PC Connectivity / PC Connection |
|
| Power Device / Type | Power supply |
| Printer / Connectivity Technology |
|
| Printer / Type | Large-format printer |
| Service & Support / Type | 1-year warranty |
| Dimensions & Weight | |
| Depth | 69.5 cm |
| Height | 99.8 cm |
| Weight | 72 kg |
| Width | 180.2 cm |
| Dimensions & Weight (JTFpping) | |
| Depth (JTFpping) | 77 cm |
| Height (JTFpping) | 71 cm |
| Weight (JTFpping) | 126 kg |
| Width (JTFpping) | 195.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 5 °C |
| Sound Emission (Idle) | 15 dBA |
| Sound Emission (Operating) | 45 dBA |
| Environmental Standards | |
| ENERGY STAR | Yes |
| EPEAT Compliant | EPEAT Bronze |
| Expansion / Connectivity | |
| Connections |
|
| General | |
| Localization | English, French, Portuguese, Spanish / Canada, Latin America, United States |
| Printer Type | 44" large-format printer - ink-jet - color |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Media Handling | |
| Max Media Size | 1118 x 1676 mm |
| Max Media Size (Custom) | 1118 mm x 1676 mm |
| Media Feeders | 1 x manual - 1 roll - 1118 x 1676 mm weight: 60 g/m² - 328 g/m² |
| Media Sizes | A4 (210 x 297 mm), A3 (297 x 420 mm), A2 (420 x 594 mm), A1 (594 x 841 mm), A0 (841 x 1189 mm), 210 x 279 mm, 1118 x 1676 mm |
| Media Thickness Range | Up to 0.8 mm |
| Media Type | Plain paper, vinyl, bond paper, film, backlit paper, translucent bond paper, photographic paper, glossy paper, matte paper, semi-gloss paper |
| Media Weight | 60 g/m² - 328 g/m² |
| Min Media Size (Custom) | 210 mm x 279 mm |
| Miscellaneous | |
| Compliant Standards | CSA, VCCI, SABS, CCC, EMC, PSB, FCC, IRAM, RoHS, EN 60950-1, KCC, WEEE, ICES, REACH, LVD, EAC, BIS, ACMA, RSM |
| Features | Self-Encrypting Drive (SED) support, Adobe PDF Print Engine |
| Networking | |
| Networking | Print server |
| Remote Management Protocol | HTTPS |
| Security Protocols & Features | TLS, IPsec, 802.1x |
| Power | |
| Frequency Required | 50/60 Hz |
| Power Consumption Operational | 100 Watt |
| Power Consumption Sleep | 6.5 Watt |
| Power Device | Power supply - internal |
| Printer | |
| Connectivity Technology | Wireless |
| Cutter | Yes |
| Ink Cartridge Configuration | 6 cartridges (1 each: cyan, magenta, yellow, gray, photo black, matte black) |
| Ink Palette Supported (Colors) | 6-ink - cyan, magenta, yellow, photo black, pigment matte black, gray |
| Inkjet Technology | HP Thermal Inkjet |
| Interface | Gigabit LAN, USB host |
| Language Simulation | PostScript 3, CALS G4, HP GL/2, PDF, TIFF, PDF 1.7, URF, JPEG |
| Max Resolution (B&W) | 2400 x 1200 dpi |
| Max Resolution (Color) | 2400 x 1200 dpi |
| Minimum Ink Droplet Size | 6 pl |
| Nozzle Configuration | 6 x 2112 nozzles |
| Print Speed |
|
| Printer Features | Print from mobile device |
| RAM | |
| RAM Installed (Max) | 4 GB |
| Software / System Requirements | |
| Software Included | Drivers & Utilities, HP Web JetAdmin, HP Embedded Web Server, HP Click, HP JetAdvantage Security Manager, HP Partner Link, HP MPS |
| Storage | |
| Hard Drive | 500 GB |
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
secure transaction
Quick Details
- color
- ink-jet
- 1118 x 1676 mm
- 2400 x 1200 dpi
- up to 0.55 min/page
