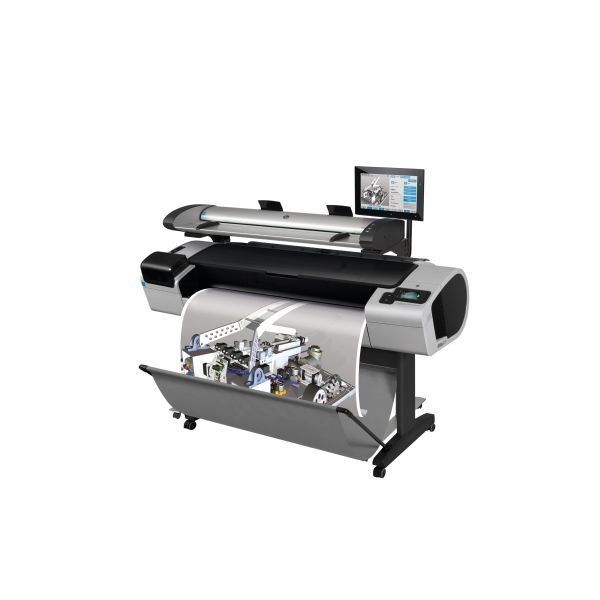

HP DesignJet SD Pro 2 MFP
| General Information | |
|---|---|
| Category | Multifunction machines |
| Description | HP DesignJet SD Pro 2 MFP - 44" multifunction printer - color - ink-jet - Roll (111.8 cm) (original) - 1118 x 1676 mm, Roll (111.8 cm) (media) - up to 1.93 ppm (printing) - Gigabit LAN, USB host, USB 3.2 Gen 1, USB 2.0 |
| Manufacturer | HP, Inc. |
| UNSPSC | 44101503 |
| Main Specifications | |
| Dimensions & Weight / Depth | 93 cm |
| Dimensions & Weight / Height | 166 cm |
| Dimensions & Weight / Width | 180.2 cm |
| Document & Media Handling / Large Format Printer Size | 44" |
| Header / Brand | HP |
| Header / Country Kits |
|
| Header / Localization |
|
| Miscellaneous / Product Color |
|
| Office Machine / Functions |
|
| Office Machine / Printing Output Type | Color |
| Office Machine / Printing Technology | Ink-jet |
| Office Machine / Type | Printer / copier / scanner |
| Packaged Quantity | 1 |
| PC Connectivity / PC Connection |
|
| PC Connectivity / PC Connection Availability | Yes |
| Service & Support / Type | 1-year warranty |
| Connections | |
| Interfaces |
|
| Software Included | HP Web Jetadmin, HP Partner Link, HP JetAdvantage Security Manager, HP MPS, HP Click |
| Copying | |
| Max Copying Resolution | Up to 2400 dpi (mono) / up to 2400 dpi (color) |
| Dimensions & Weight | |
| Depth | 93 cm |
| Height | 166 cm |
| Width | 180.2 cm |
| Dimensions & Weight (JTFpping) | |
| JTFpping Depth | 76.6 cm |
| JTFpping Height | 126 cm |
| JTFpping Weight | 213 kg |
| JTFpping Width | 195 cm |
| Document & Media Handling | |
| Max Media Size | Other |
| Max Media Weight | 328 g/m² |
| Max Original Size | Roll (111.8 cm) |
| Min Media Size | 210 x 279 mm |
| Min Media Weight | 60 g/m² |
| Speed Details |
|
| Supported Media Sizes | A4 (210 x 297 mm), A3 (297 x 420 mm), A2 (420 x 594 mm), A1 (594 x 841 mm), A0 (841 x 1189 mm), 1118 x 1676 mm, 210 x 279 mm, Roll (111.8 cm) |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% RH |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 5 °C |
| Sound Emission | 30 dBA (idle) / 62 dBA (operating) |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
| General | |
| Connection Availability | Yes |
| Device Type | 44" multifunction printer |
| Display Diagonal Size | 15.6" |
| Display Features | Touch screen |
| Interface | Gigabit LAN, USB host, USB 3.2 Gen 1, USB 2.0 |
| Localization | English, French, Spanish, Portuguese / United States, Canada, Latin America |
| Office Machine Features | Print from USB flash drive, scan to e-mail, EIO slot, Hard Disk Drive Encryption, automatic cutter, scan to FTP, print from e-mail, 15.6-inch (396 mm) all-in-one PC, 11.9 kg max roll weight, HP ePrint, 128GB virtual memory |
| Printing Technology | Ink-jet - color |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Memory | |
| Hard Disk Drive | 756 GB |
| Standard Memory | 12 GB |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, ICES Class B, EU, EMC Class B, ACMA, RSM, CCC Class B, VCCI, KCC Class B, SABS Class B, ICES Class A, MSIP Class A, EAC, WEEE, RoHS, REACH, LVD, EN 60950-1, PSB, IRAM, BIS, KC |
| Consumables Included | 3 x printhead |
| Included Accessories | Scanner and printer stand, spindles, setup poster, Ethernet cable |
| Power | |
| Voltage Required | AC 120/230 V (50/60Hz) |
| Printing | |
| Color | 6-ink |
| Ink Cartridge Configuration | 6 cartridges (1 each: cyan, magenta, yellow, gray, photo black, matte black) |
| Ink Palette Supported (Colors) | Cyan, magenta, yellow, photo black, matte black, gray |
| Inkjet Technology | HP Thermal Inkjet |
| Max Printing Resolution | Up to 2400 x 1200 dpi (mono) / up to 2400 x 1200 dpi (color) |
| Max Printing Speed | Up to 1.93 ppm (mono) / up to 1.93 ppm (color) |
| Minimum Ink Droplet Size | 6 pl |
| Nozzle Configuration | 6 x 2112 nozzles |
| Printer Drivers / Emulations | PostScript 3, PDF 1.7, HPGL/2, TIFF, JPEG, URF, CALS G4 |
| Scanning | |
| Optical Resolution | 1200 dpi |
| Scan Element | CIS |
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
