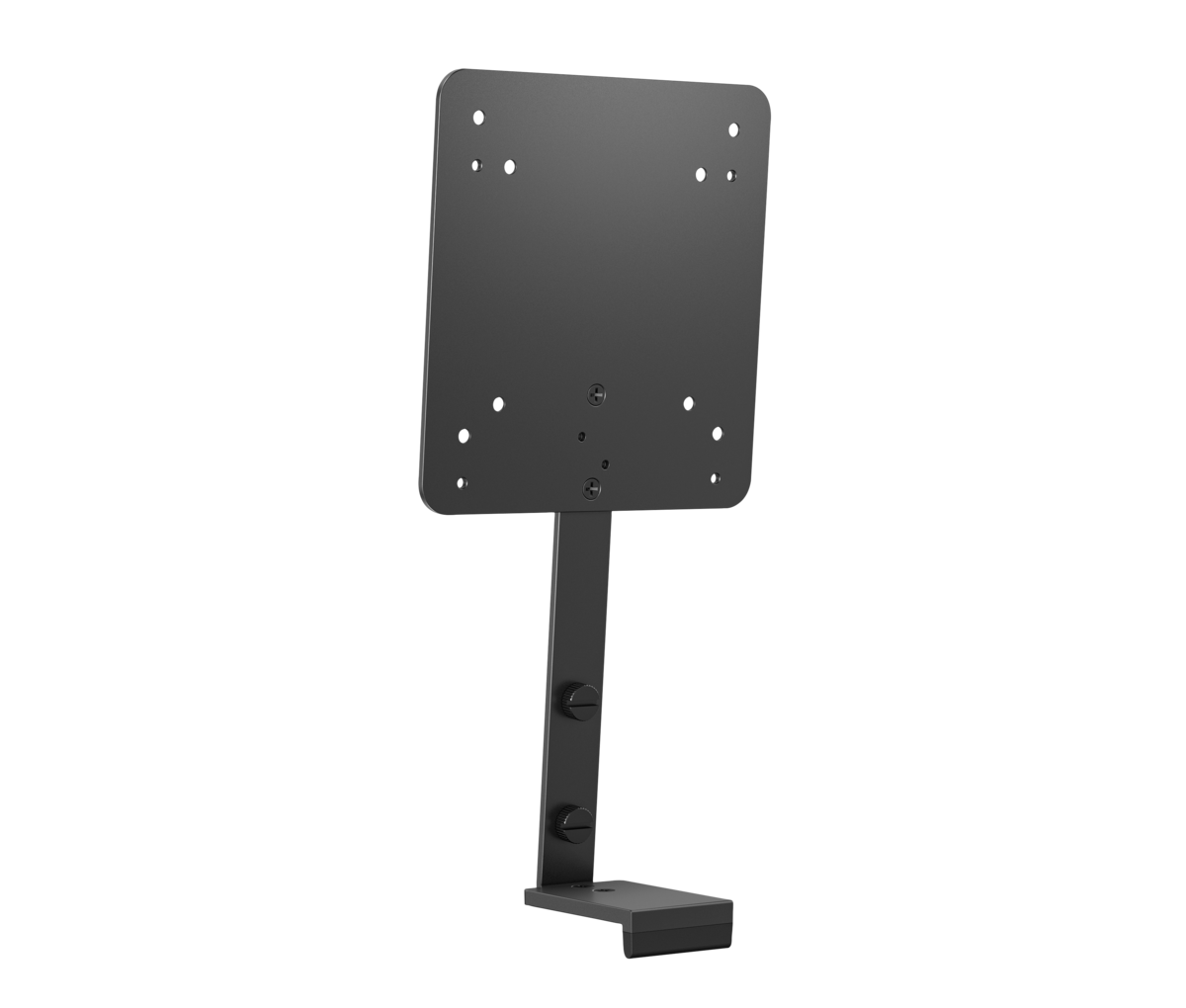

HP B560 - Mounting kit (mount bracket)

Be the first to review this product

Availability: Out of stock

SKU

763U8AA

UPC Code

197029388063

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

Create a compact workspace with the HP B560 PC Mounting Bracket. Attach your HP Desktop Mini PC behind select E-Series G5, Series 5 Pro, or Series 7 Pro monitors for a fully adjustable, space-saving solution.

Simply Maximize your Desk: Give yourself more room to work with the HP B560 PC Mounting Bracket. Attach the bracket to the back of your monitor’s stand and your PC platform to the bracket--no tools needed. Plus, the added base support allows more compatibility with workstations. 1
Free to Adjust: Since the bracket is directly attached behind the stand, you can adjust your monitor's height adjustment, tilt, swivel, and pivot settings freely to find a comfortable position to work.
Rest Easy: Get the reassurance of a one-year limited warranty. 5
What's in the box: HP B560 PC Mounting Bracket 1 x Foot 5.5 mm 1 x Foot 7.5 mm 1 x Foot 9.5 mm M4 x L11 mm thumb screws (2) M4 x L11 mm sunk screw (2) M4 x L15.5 mm screw (4) M4 x L6 mm screw (4) M4 x L10 mm screw (4) 4 x TR screw Quick Installation Guide Warranty card

Specifications

General Information
Category	Mounting kits
Description	HP B560 - Mounting kit (mount bracket) - for monitor / mini PC - 65% ITE-derived closed loop plastic, ocean-bound recycled plastic - black - mounting interface: 100 x 100 mm
Manufacturer	HP, Inc.
UNSPSC	31162313
Main Specifications
Dimensions & Weight / Depth	13 cm
Dimensions & Weight / Height	6.78 cm
Dimensions & Weight / Weight	480 g
Dimensions & Weight / Width	27.71 cm
Header / Brand	HP
Miscellaneous / Product Color	Black
Packaged Quantity	1
Service & Support / Type	1-year warranty
AV Furniture
Mounting Components	Mount bracket
Recommended Use	Monitor / mini PC
Type	Mounting kit
VESA Mounting Interface	100 x 100 mm
Dimensions & Weight Details
JTFpping Dimensions (WxDxH) / Weight	29.7 cm x 14.3 cm x 9.3 cm / 780 g
General
Color	Black
Depth	13 cm
Height	6.78 cm
Material	65% ITE-derived closed loop plastic, ocean-bound recycled plastic
Package Content	5.5 mm foot, 7.5 mm foot, 9.5 mm foot, 4 x TR screw, 4 x M4xL10 mm screw, 2 x M4xL11 mm sunk screw, 2 x M4xL11 mm thumb screw, 4 x M4xL15.5 mm screw, 4 x M4xL6 mm screw
Weight	480 g
Width	27.71 cm
Manufacturer Warranty
Service & Support	Limited warranty - 1 year
