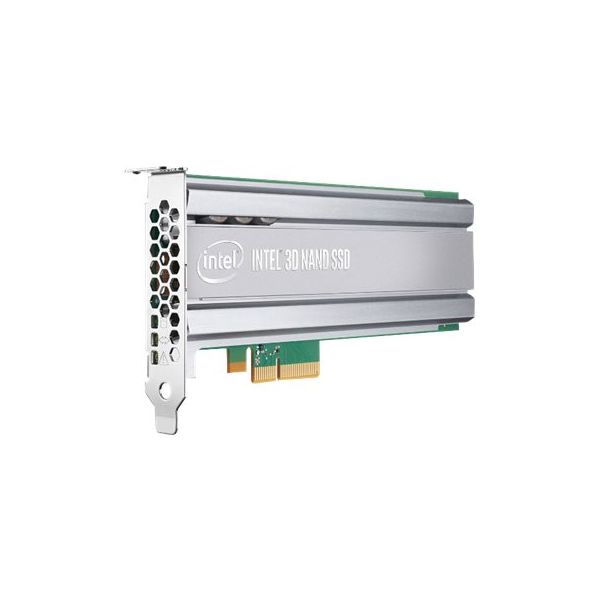

Intel P4600 Mainstream Flash Adapter

Be the first to review this product

Availability: Out of stock

SKU

7SD7A05769

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The Intel P4600 Mainstream NVMe Flash Adapters are advanced server storage adapters optimized for mixed read-write performance, endurance, and strong data protection for Lenovo ThinkSystem servers. They are designed for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.

Specifications

General Information
Category	Hard drives
Description	Intel P4600 Mainstream Flash Adapter - SSD - 2 TB - internal - PCIe card (HHHL) - PCIe 3.0 x4 (NVMe) - for ThinkSystem SD530 (3.5"); SR570 (3.5"); SR590 (3.5"); SR630; SR650; SR850; SR860; SR950
Manufacturer	Lenovo
MSRP	$3,899.00
UNSPSC	43201803
Main Specifications
Dimensions & Weight / Depth	168 mm
Dimensions & Weight / Height	19 mm
Dimensions & Weight / Weight	182 g
Dimensions & Weight / Width	68 mm
Hard Drive / Capacity	2 TB
Hard Drive / Form Factor	PCIe card (HHHL)
Hard Drive / Hard Drive Type	Internal hard drive
Hard Drive / Interface	PCI Express 3.0 x4 (NVMe)
Hard Drive / Interface	PCI Express 3.0 x4 (NVMe)
Header / Brand	Intel
Packaged Quantity	1
Service & Support / Type	1-year warranty
Storage / Type	Solid state drive
Compatibility Information
Designed For	Lenovo ThinkSystem SD530 (3.5") Lenovo ThinkSystem SR570 (3.5") Lenovo ThinkSystem SR590 (3.5") Lenovo ThinkSystem SR630 (3.5") Lenovo ThinkSystem SR650 (3.5") Lenovo ThinkSystem SR850 (3.5") Lenovo ThinkSystem SR860 (3.5") Lenovo ThinkSystem SR950 (3.5")
Environmental Parameters
Humidity Range Operating	5 - 95% (non-condensing)
Max Operating Temperature	35 °C
Min Operating Temperature	0 °C
Shock Tolerance (operating)	1000 g @ 0.5 ms
Vibration Tolerance (operating)	2.17 g @ 5-700 Hz
Expansion & Connectivity
Compatible Bay	PCIe card (HHHL)
Interfaces	1 x PCI Express 3.0 x4 (NVMe)
General
Capacity	2 TB
Depth	168 mm
Device Type	Solid state drive - internal
Features	Enhanced Power Loss Data Protection, Thermal throttling, End-to-end data path protection, S.M.A.R.T.
Form Factor	PCIe card (HHHL)
Height	19 mm
Interface	PCIe 3.0 x4 (NVMe)
Weight	182 g
Width	68 mm
Manufacturer Warranty
Service & Support	Limited warranty - replacement - 1 year
Miscellaneous
Compliant Standards	CSA, UL, C-Tick, BSMI CNS 13438, EN 60950-1 Second Edition, RoHS 2011/65/EU, LVD 2006/95/EC, EN55022:2006, WEEE 2002/96/EC, EN55024:1998, CAN/CSA-CEI/IEC CISPR 22:02, FCC CFR47 Part 15 B Class B, AS/NZS 3584, KCC Article 11.1
Included Accessories	Full height bracket, 2U bracket
Performance
4KB Random Read	610850 IOPS
4KB Random Write	196650 IOPS
Average Latency	10 µs
Drive Writes Per Day (DWPD)	3
Internal Data Rate	3.2 GBps (read) / 1.575 GBps (write)
SSD Endurance	11.08 PB
Power
Power Consumption	9.4 Watt (read) 17 Watt (write)
Reliability
MTBF	2,000,000 hours
Non-Recoverable Errors	1 per 10^17
