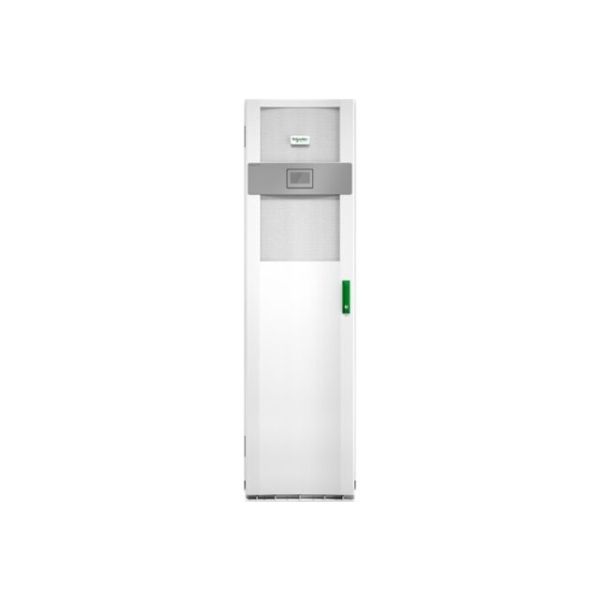

GALAXY VS UPS 80KW 480V 3 INTERNAL 9AH SMART MOD BATT

Be the first to review this product

Availability: Out of stock

SKU

GVSUPS80KB5GS

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

Highly efficient, easy-to-deploy 80kW, 480V 3-phase UPS that brings best-in-class power protection and low total cost of ownerJTFp to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service and 3 smart modular high capacity battery strings, expandable to 5 strings for extended runtime. See the battery runtime chart for details.

Specifications

General Information
Category	Power conditioning equipment
Description	GALAXY VS UPS 80KW 480V 3 INTERNAL 9AH SMART MOD BATT
Manufacturer	APC by Schneider Electric
MSRP	$71,590.00
UNSPSC	39121000
Main Specifications
Dimensions & Weight / Depth	84.7 cm
Dimensions & Weight / Height	197 cm
Dimensions & Weight / Weight	680 kg
Dimensions & Weight / Width	55 cm
Header / Brand	Schneider
Miscellaneous / Product Color	White
Networking / Remote Management Interface	Ethernet
Packaged Quantity	1
Power Device / Form Factor	External
Power Device / Power Capacity (VA)	80000 VA
Power Device / UPS Technology	On-line
Power Device / Voltage Required	AC 480 V
Product Type	UPS
Service & Support / Type	1-year warranty
Battery
Capacity	9 Ah
Quantity	3 battery strings (installed) / 5 (supported)
Technology	Lead acid
Type	Expandable
Dimensions & Weight
Depth	84.7 cm
Height	197 cm
Weight	680 kg
Width	55 cm
Dimensions & Weight (JTFpping)
JTFpping Depth	101 cm
JTFpping Height	208.2 cm
JTFpping Weight	705 kg
JTFpping Width	75.5 cm
Environmental Parameters
Humidity Range Operating	0 - 95% (non-condensing)
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
Sound Emission	65 dBA
Expansion / Connectivity
Interfaces	Management (Ethernet) - RJ-45
General
Bundled Services	Start-Up Service 5X8
Color	White, RAL 9003
Device Type	UPS - external
Manufacturer Warranty
Service & Support	Limited warranty - 1 year - on-site
Miscellaneous
Compliant Standards	IEC 62040-3, IEC 62040-1-1, IEC 62040-2, FCC Part 15 A, CSA C22.2 No. 107.3, IP20, OSHPD, UL 1778 5th edition
Features	Audible alarm, built-in static bypass, overload protection, touch screen LCD display, VRLA battery support
Included Accessories	Dust filter
Networking
Remote Management Interface	Ethernet
Remote Management Protocol	SNMP, Modbus
Power Device
Efficiency	97% at 100% Load, 95.5% at 25% Load, 96.7% at 50% Load, 97% at 75% Load
Frequency Provided	50/60 Hz ± 0.1%
Frequency Required	40 - 70 Hz
Input Voltage	AC 480 V
Input Voltage Range	AC 408 - 552 V
Input Wiring	3-phase
Output Voltage	AC 480 V ± 3% - 50/60 Hz
Output Waveform	Sinewave
Power Capacity	80 kW / 80000 VA
Power Factor (PF)	0.99
Total Harmonic Distortion (THD)	1 %
UPS Technology	On-line
