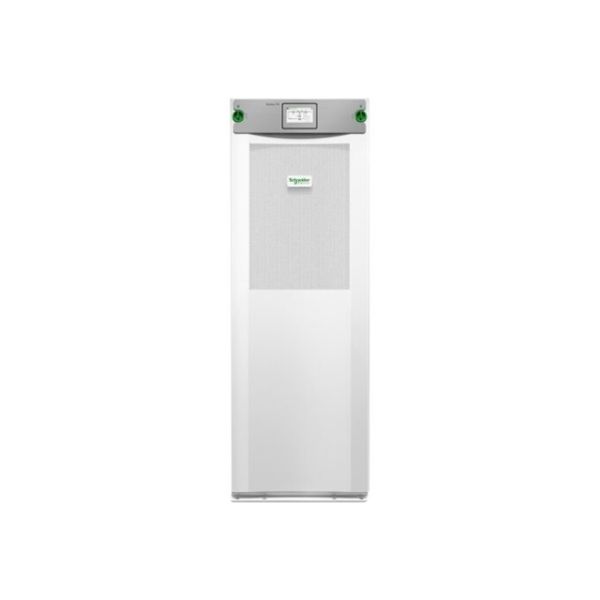

GALAXY VS UPS 50KW 480V FOR UP TO 4 INTERNAL 9AH SMART MODULAR BATTERY STRINGS,

Be the first to review this product

Availability: Out of stock

SKU

GVSUPS50K0B4GS

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

Highly efficient, easy-to-deploy 50kW, 480V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. This UPS is for up to 4 smart modular high capacity battery strings, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5x8 start-up service.

Specifications

General Information
Category	Uninterruptible power supplies
Description	GALAXY VS UPS 50KW 480V FOR UP TO 4 INTERNAL 9AH SMART MODULAR BATTERY STRINGS,
Manufacturer	APC by Schneider Electric
MSRP	$42,735.00
UNSPSC	39121011
Main Specifications
ABC Code	A
Height	0.00
Length	0.00
One Source Flag	NNN N
Serialized Flag	Y
SKU Created Date	250211
Width	0.00
Battery
Quantity	4 (supported)
Type	No battery expandable
Dimensions & Weight
Depth	84.7 cm
Height	148.5 cm
Width	52.1 cm
Dimensions & Weight (Shipping)
Shipping Depth	99 cm
Shipping Height	168 cm
Shipping Width	64 cm
Environmental Parameters
Humidity Range Operating	0 - 95% (non-condensing)
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
Sound Emission	61 dBA
Expansion / Connectivity
Interfaces	Management (Ethernet)
General
Bundled Services	Start-Up Service 5X8
Color	White, RAL 9003
Device Type	UPS - external
Manufacturer Warranty
Service & Support	Limited warranty - 1 year - on-site
Miscellaneous
Compliant Standards	IEC 62040-3, IEC 62040-1-1, IEC 62040-2, FCC Part 15 A, CSA C22.2 No. 107.3, IP20, OSHPD, UL 1778 5th edition
Features	Audible alarm, built-in static bypass, overload protection, touch screen LCD display, VRLA battery support
Included Accessories	Dust filter
Networking
Remote Management Interface	Ethernet
Remote Management Protocol	SNMP, Modbus
Power Device
Efficiency	95.8% at 25% Load, 96.9% at 50% Load, 97% at 100% Load, 97.1% at 75% Load
Frequency Provided	50/60 Hz
Frequency Required	40 - 70 Hz
Input Voltage	AC 480 V
Input Voltage Range	AC 408 - 552 V
Input Wiring	3-phase
Output Voltage	AC 480 V ± 5% - 50/60 Hz
Output Waveform	Sinewave
Power Capacity	50 kW / 50000 VA
Power Factor (PF)	0.99
Total Harmonic Distortion (THD)	1 %
UPS Technology	On-line
Sustainability Information
ENERGY STAR	Yes
