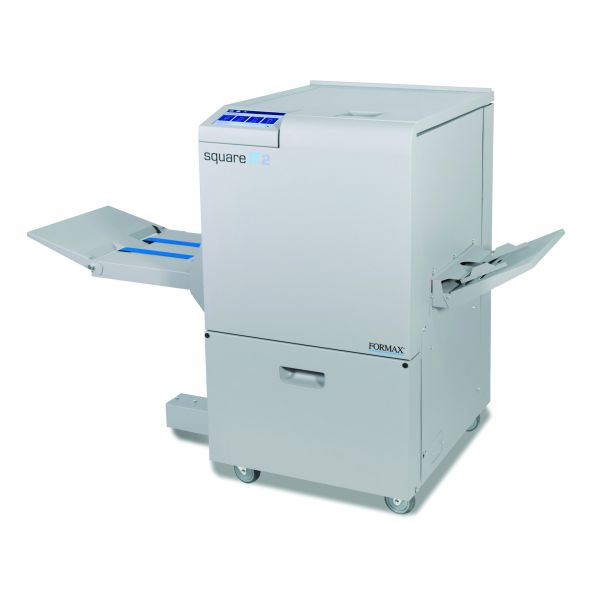

Formax Square iT2 Squareback Booklet Finisher, Squares and Trims
secure transactionFormax Square iT2 Squareback Booklet Finisher, Squares and Trims
The Square iT2 Squareback Booklet Finisher is a compact, mobile unit designed to transform folded and stapled booklets into professionally finished, squarebacked products. Squareback booklets lie flat and can even be printed on the spine, giving them the appearance of perfect-bound books.
In a single pass, the Square iT2 squares the spine and face-trims the edge for a clean finish. For full-bleed applications, it can trim the top and bottom in multiple passes. Supporting a wide range of booklet sizes, from 5” x 4.15” to 12.6” x 12.2”, and up to 50 sheets / 200 pages of 20# bond, it offers the flexibility to handle both small and large jobs.
The intuitive color touchscreen makes it easy for operators of any skill level to run jobs, save custom settings, or choose from standard paper sizes. With a production speed of up to 900 booklets per hour and a monthly duty cycle of 20,000 booklets, the Square iT2 is a powerful addition to any print finishing setup.
Formax Square iT2 Squareback Booklet Finisher, Squares and Trims Comes Standard with:
-
Squares and trims booklets in a single pass
-
Handles up to 50 folded/stapled sheets (200-page booklet, 20# bond)
-
Full-bleed three-sided trimming (face, top, bottom)
-
User-friendly color touchscreen with step-by-step instructions
-
Programmable job settings for repeat runs
-
Adjustable pressure for perfectly squared bindings
-
Hand-feed option or inline use with a digital printer
-
Automatic outfeed belt stacker for neat booklet organization
-
Resettable counter for job tracking
-
Waste tray for trimmed edges, easy to empty
-
Heavy-duty all-metal construction with casters for mobility
Formax Square iT2 Squareback Booklet Finisher, Squares and Trims
| Speed | Up to 900 booklets per hour |
| Duty Cycle | Up to 20,000 booklets per month |
| Sheet Capacity | Up to 50 folded/stapled sheets (200-page booklet, 20# bond) * |
| Paper Weight | 63 – 350 gsm |
| Input Book Size | Min: 5.85” W x 4.15” L (149 x 105 mm) Max: 12.6” W x 12.2” L (320 x 310 mm) |
| Finished Book Size | Min: 5.85” W x 3.93” L (149 x 100 mm) Max: 12.6” W x 12.2” L (320 x 310 mm) |
| Face & Side Trimming | Min: 0.04” (1 mm) Max: 8.26” (210 mm) |
| Dimensions | 56” W x 27” D x 39” H (1422 x 689 x 990 mm) |
| Weight | 313 lbs (142 kg) |
| Power | 100 – 240V, 50/60 Hz |
Popup Text
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
