Formax FD 7202-Special 3F Inserter w/ Tower Feeder Conveyor

Formax FD 7202-Special 2F Inserter w/ Tower Feeder

Formax FD 7202-Special 4 Inserter w/ Tower Feeder

Be the first to review this product

Availability: In stock

SKU

Formax FD 7202-Special 3F

Condition

New

Compare with Similar items

Request a Quote

secure transaction

Details

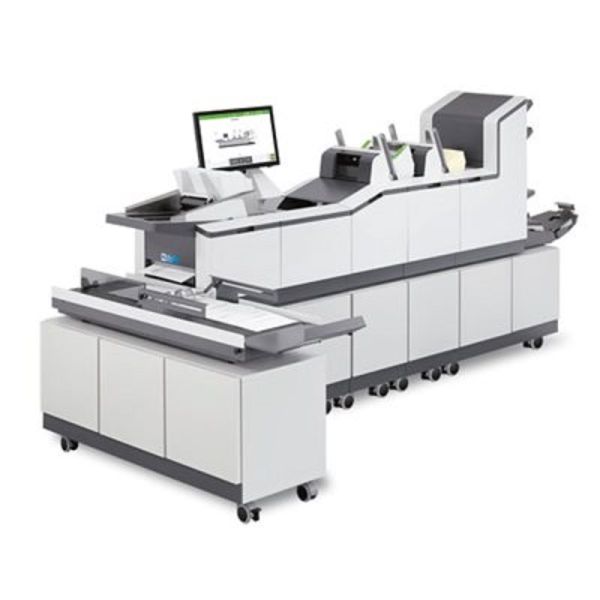

Formax FD 7202-Special 3F Inserter w/ Tower Feeder Conveyor

The Formax FD 7202 is a high-volume modular inserter solution which has been engineered to do many jobs. The modular design of this item has 11 feed stations with capacity feeder and has a standard capacity to 2,000 sheets. Formax FD 7202-Special 3F Inserter w/ Tower Feeder Conveyor can process up to 5,000 envelopes per hour. The additional features of 7202-Special 3F Inserter w/ Tower Feeder are automated fold plate adjustment and some self-programmable jobs.

The setup of this device is very easy and quick with document and envelope library. The auto fold plate adjustment of Formax FD 7202 folds the first plate and then the second plate is automatically folded. Versatility is another remarkable feature of Formax FD 7202-Special 3F Inserter w/ Tower Feeder. It can insert around 50 sheets in flats and thin booklets up to 6mm thick can be processed.

Reviews

Write Your Own Review

You're reviewing:Formax FD 7202-Special 3F Inserter w/ Tower Feeder Conveyor

Your Rating

Rating

1 star 2 stars 3 stars 4 stars 5 stars

Nickname

Summary

Review

Brochure

Comes Standard

Formax Formax FD 7202-Special 3F Comes Standard With:

Inserter w/ Tower Feeder Conveyor
Tower Feeder Sheet Capacity Two 500-sheet Flex-Feeders on top and One 1,000-sheet Flex-Feeder on bottom
Speed Up to 5,000/hour #10 envelopes
Fold Types C, Half, Z, Double Parallel and no fold
Max Number of Full Page Inserts Up to 50 sheets
Tower Feeder Sheet Size 3.63” - 16” L x 5.75” - 12” W
Envelope Size #10, 6” x 9”, flats up to 10” x 13”
Sheet/Insert Thickness 70gsm up to 2 mm
Weight 876 lbs.
Duty Cycle Up to 200,000 pieces per month
Voltage 110 V, 60 Hz, 10Amp

Supplies/ accessories

Formax FD 7202-00 HCVF Feeder End Cover		Price $910.00 List Price $1,183.00 Savings 40.83%
Formax FD 7202-10 Non-Intelligent High Capacity Versatile Feeder (HCVF) Module w/ Cabinet		Price $9,308.00 List Price $12,100.40 Savings 40.83%
Formax FD 7202-20 Intelligent High Capacity Versatile Feeder (HCVF) Module w/ Cabinet		Price $12,428.00 List Price $16,156.40 Savings 40.83%
Formax FD 7202-30 Tower Feeder No Read Kit		Price $442.00 List Price $574.60 Savings 40.83%
Formax FD 7202-31 Tower Feeder CIS Scanner w/ Face Up, Lower Position		Price $2,802.80 List Price $3,643.64 Savings 40.83%
Formax FD 7202-32 Tower Feeder CIS Scanner w/ Face Down, Lower Position		Price $2,802.80 List Price $3,643.64 Savings 40.83%
Formax FD 7202-33 Tower Feeder Double CIS Scanner		Price $4,732.00 List Price $6,151.60 Savings 40.83%
Formax FD 7202-34 Tower Feeder Double CIS Scanner		Price $4,732.00 List Price $6,151.60 Savings 40.83%

Specifications

Formax FD 7202-Special 3F Inserter w/ Tower Feeder Conveyor

Product Type	Inserter
Model No.	FD 7202-Special 3F
Tower Feeder Sheet Capacity	Two 500-sheet Flex-Feeders on top and One 1,000-sheet Flex-Feeder on bottom
Speed	Up to 5,000/hour #10 envelopes
Fold Types	C, Half, Z, Double Parallel and no fold
Max Number of Full Page Inserts	Up to 50 sheets
Envelope Hopper	Top-loading, up to 800 standard envelopes or 500 flat envelopes (landscape orientation)
Tower Feeder Sheet Size	3.63” - 16” L x 5.75” - 12” W
Envelope Size	#10, 6” x 9”, flats up to 10” x 13”
Sheet/Insert Thickness	70gsm up to 2 mm
Dimensions	107” L x 36” H x 25” D
Weight	876 lbs.
Duty Cycle	Up to 200,000 pieces per month
Voltage	110 V, 60 Hz, 10Amp
