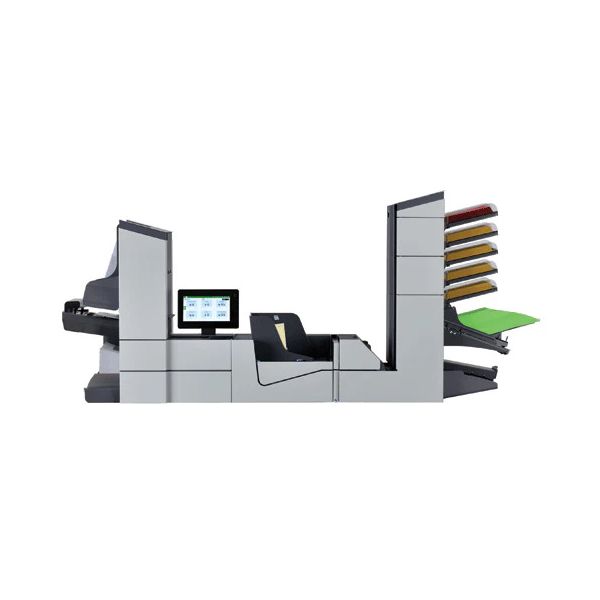

Formax FD 6608 ProFold Special 6 Inserter
secure transactionFormax FD 6608 ProFold Special 6 Inserter
The Formax FD 6608 ProFold Special 6 Inserter is a high-capacity, six-station folder inserter engineered for large-volume mailing operations requiring flexibility and efficiency. It features four standard feeders and two special feeders, allowing the processing of multiple document types, inserts, and specialized media simultaneously. Supporting various fold types (C, V, Z, Double Parallel, and No Fold), this model is designed for precise and reliable mail processing. The 7” full-color touchscreen provides easy job programming and intuitive operation. With a top-loading envelope hopper, vertical output stacker, and double document detection system, the FD 6608 Special 6 delivers accuracy, speed, and productivity for corporate mailrooms, healthcare institutions, and financial organizations.
Formax FD 6608-Comes Standard With:
- Four standard feeders (each holds up to 325 sheets of 20# bond paper)
- Two special feeders for inserts, cards, or specialized media
- 7” full-color touchscreen interface for easy programming and operation
- Top-loading envelope hopper (up to 325 envelopes)
- Vertical output stacker (up to 500 filled envelopes)
- Supports C, V, Z, Double Parallel, and No Fold types
- Double document detection for accurate processing
- Eco mode for energy-efficient operation
- Sealing and non-sealing operational modes
- Clamshell design for easy access and maintenance
- Up to 50 programmable jobs
- Supports sheets (3.5"–14" H x 5"–9" W) and envelopes (3.5"–6.4" H x 5.5"–9.8" W)
Formax FD 6608 ProFold Special 6 Inserter
| Product Name | Formax FD 6608 ProFold Special 6 Inserter |
| Processing Speed | Up to 4,000 pieces per hour |
| Monthly Duty Cycle | Up to 60,000 pieces |
| Fold Types Supported | C, V, Z, Double Parallel, No Fold |
| Standard Feeders | 4 standard feeders (each holds up to 325 sheets of 20# bond paper) |
| Special Feeders | 2 special feeders for inserts, cards, or specialized media |
| Envelope Hopper Capacity | Up to 325 envelopes (top-loading) |
| Vertical Stacker Capacity | Up to 500 filled envelopes |
| Sheet Size Range | 3.5"–14" Height x 5"–9" Width |
| Envelope Size Range | 3.5"–6.4" Height x 5.5"–9.8" Width |
| Programmable Jobs | Up to 50 programmable jobs |
| Maximum Insert Thickness | 1 mm |
| Maximum Set Thickness | 2.5 mm |
| Control Interface | 7" full-color touchscreen graphical interface |
| Energy Efficiency | Eco mode available |
| Sealing Capability | Sealing and non-sealing operations |
| Document Detection | Double document detection system |
| Clamshell Design | Easy access to paper and envelope path for maintenance |
Popup Text
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
