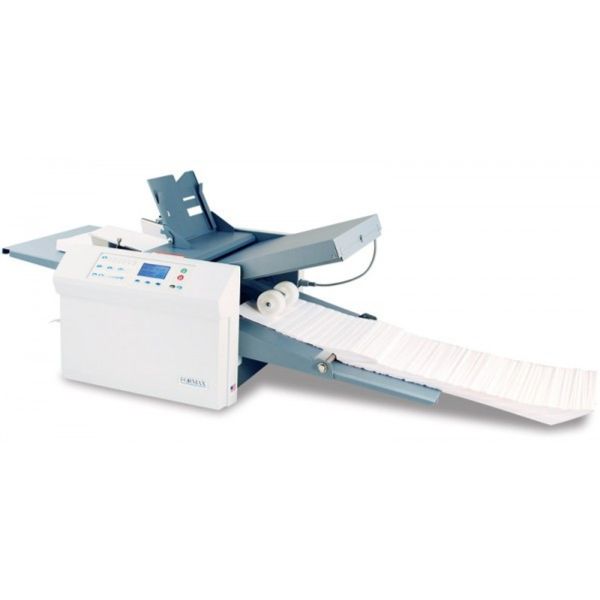

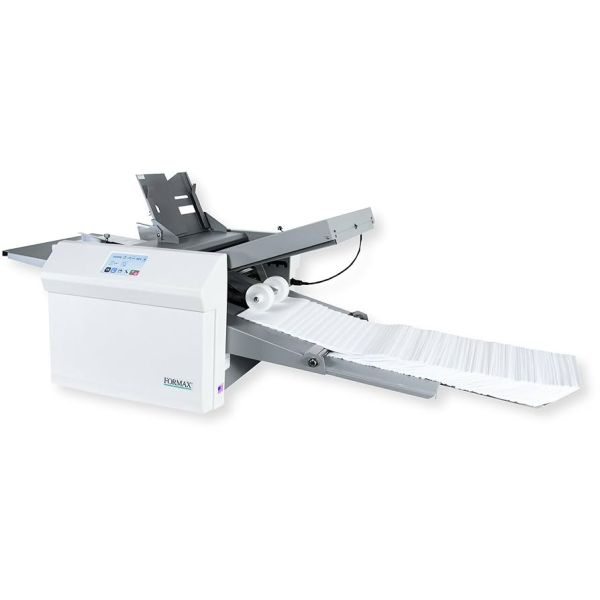

Formax FD 386 Automatic Document Folder
Formax FD 386 Automatic Document Folder
The Formax FD 386 is a top-tier automatic paper folder designed to meet the demands of modern high-volume environments. It features an air-suction feed system, making it ideal for digitally printed or coated stocks that traditional friction-fed folders may struggle to process. The FD 386 can process up to 17,000 sheets per hour and handles paper sizes up to 12.75" x 18".
With its 4.3” full-color touchscreen, users can quickly access six pre-programmed standard folds and store up to 20 custom fold jobs. The automatic fold plate adjustment and paper length detection streamline setup, while the long conveyor stacker keeps folded output neat and organized.
Perfect for print shops, in-plants, and production offices, the FD 386 combines robust construction, intuitive controls, and gentle handling of delicate media for reliable, high-speed operation.
Formax FD 386 Automatic Document Folder
| Model | FD 386 |
| Folding Type | Automatic Air-Suction Feed |
| Control Panel | 4.3" Full-Color Touchscreen |
| Max Folding Speed | Up to 17,000 sheets per hour |
| Paper Size – Min | 3.5" W x 5" L (89 x 127 mm) |
| Paper Size – Max | 12.75" W x 18" L (324 x 457 mm) |
| Paper Weight Range | 16 – 120 lb bond (60 – 230 gsm) |
| Feed Tray Capacity | Up to 500 sheets (20 lb bond / 75 gsm) |
| Standard Fold Types | Letter, Half, Z-Fold, Double Parallel, Gate, Fold-Out |
| Custom Folds | 20 Programmable Memory Settings |
| Fold Adjustment | Automatic (fold plates and paper length detection) |
| Counters | Batch Counter & Total Counter |
| Output System | Extended Conveyor Stacker with Adjustable Rollers |
| Noise Level | Low – Office-friendly Operation |
| Safety Features | Safety Cover Sensors, Jam Detection |
| Construction | Heavy-Duty Steel Frame |
| Power Supply | 120V AC, 60Hz |
| Dimensions (L x W x H) | 57" x 21" x 23" (1,448 x 533 x 584 mm) |
| Net Weight | Approx. 90 lbs (41 kg) |
| Recommended For | Digital print shops, in-plants, mailrooms, commercial use |
