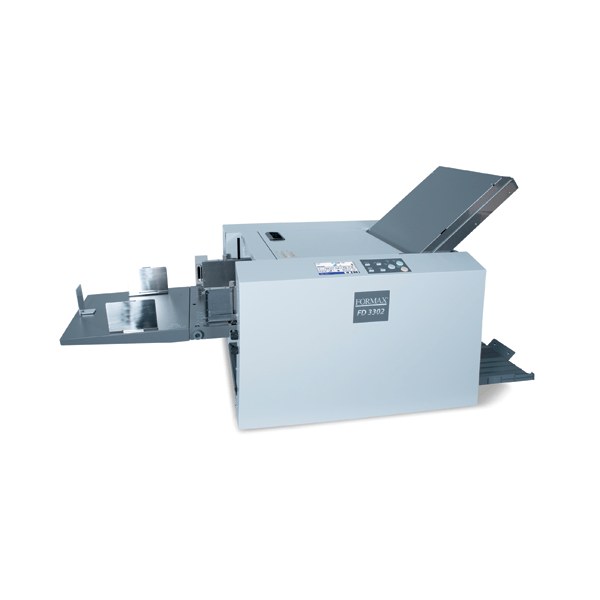

Formax FD 3302 Tabletop Air-Suction Document Folder
secure transactionThe Formax FD 3302 Tabletop Air-Suction Folder is a professional-grade folding solution built for today’s high-volume, high-quality print environments. Using advanced air-suction feed technology, it handles coated, glossy, and digitally printed documents with ease—eliminating feed marks and static issues. The intuitive 4.3" color touchscreen simplifies setup, offering pre-programmed folds, automatic paper size detection, and the ability to store up to 30 custom folds.
Capable of folding up to 18,600 sheets per hour, the FD 3302 also includes dual feed detection (optical and ultrasonic) to ensure document accuracy. Its compact design fits on a tabletop while offering the power and versatility needed in print shops, mailrooms, and production facilities.
Formax FD 3302 Tabletop Air-Comes Standard With:
- Air-suction feeding system
- 7" full-color touchscreen control panel
- Automatic fold plate setting
- Six standard fold types: Letter, Zig-Zag, Half, Double Parallel, Gate, Fold Out
- Folding speed up to 18,000 sheets per hour
- Load-on-the-fly capability
- Programmable job memory
- Batch counter and total counter
- Adjustable outfeed stacker wheels
- Paper size range: 3.5” x 5” to 11.5” x 17.5”
Formax FD 3302 Tabletop Air-Suction Document Folder
| Model | Formax FD 3302 Tabletop Air-Suction Folder |
| Feed System | Internal air-suction system with DC fans; side air for coated paper |
| Control Panel | 4.3" Full-Color Touchscreen LCD |
| Folding Speed | Up to 18,600 sheets/hour (single 11” fold) |
| Paper Feed Capacity | Up to 625 sheets (approx. 1.96" stack) |
| Fold Types | 6 Preset Folds: C, Z, Half, Gate, Fold-Out, Double Parallel |
| Custom Folds | Up to 30 user-defined folds |
| Cross Fold Capability | Yes, with included cross-fold guide |
| Paper Sizes Supported | Min: 4.73” x 7.2” — Max: 12.2” x 25.5” |
| Paper Weights (Uncoated) | 52.3 – 157 gsm (14 – 40 lb) |
| Paper Weights (Coated) | 73.3 – 157 gsm (19 – 40 lb); up to 230 gsm for single folds (test advised) |
| Double-Feed Detection | Optical & Ultrasonic Sensors |
| Noise Reduction | Insulated fold plates, quiet fan-based air system |
| Batch Counting | Yes |
| Memory Settings | 30 programmable fold types |
| Power Supply | 110–240V AC, 50/60Hz |
| Dimensions (L x D x H) | 53.3" × 23.2" × 24.2" |
| Weight | Approx. 157 lbs (71 kg) |
Popup Text
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
