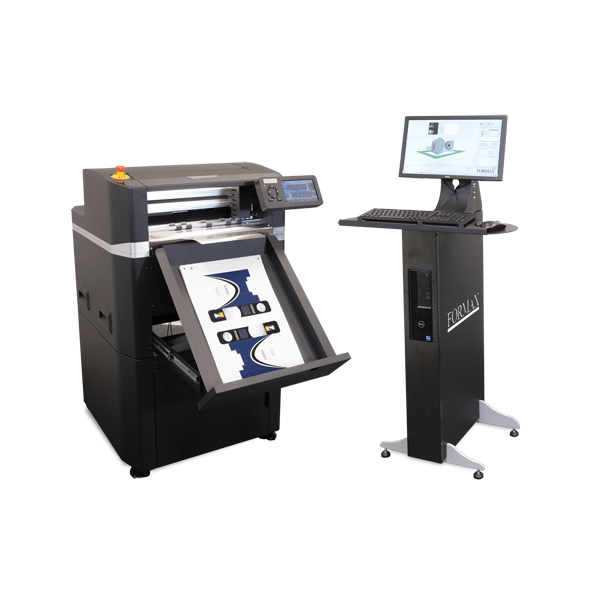

Formax Cut True DDC50 Automatic High-Speed Digital Die Cutter

Formax Cut True DDC50 Automatic High-Speed Digital Die Cutter
The Formax Cut-True DDC50 is a fully automatic digital die-cutting system designed for high-speed, on-demand production. It cuts, creases, perforates, and kiss-cuts in one streamlined process—eliminating the need for traditional dies and lengthy setup times. Engineered for versatility and efficiency, the DDC50 can handle sheets up to 13.4” x 28” and paper stocks up to 350 microns thick, making it ideal for short-run packaging, labels, custom shapes, and prototyping.
Thanks to its vacuum belt feeding system, the DDC50 maintains high throughput with reliable sheet feeding, while QR/barcode job recognition enables automatic switching between jobs for batch processing. Operators benefit from its intuitive 15.6" touchscreen and Cut-True Pro Software, which seamlessly integrates with Adobe Illustrator for quick setup and editing.
Compact and easy to operate, the DDC50 is the ideal digital finishing solution for print shops and businesses looking to increase productivity and eliminate the cost of traditional dies—while offering unlimited creative flexibility.
Formax Cut True DDC50 Automatic High-Speed Digital Die Cutter
Cutting Functions | Die-cutting, kiss-cutting, creasing, perforating |
Max Sheet Size | 13.4" x 28" (340mm x 710mm) |
Paper Weight / Thickness | Up to 350 microns |
Feeder Capacity | Up to 1,000 sheets via air suction belt feeder |
Cutting Speed | Up to 47 inches/second |
Job Recognition | Barcode/QR code scanning for automated job switching |
Software | Cut-True Pro Software (Adobe Illustrator plug-in) |
Interface | Full-color 15.6" touchscreen |
Power Requirements | 100 – 240V AC, 50/60Hz |
Machine Dimensions | 33.5" W x 34.2" D x 49" H |
Weight | 300 lbs (Cutter), 71 lbs (Workstation) |
