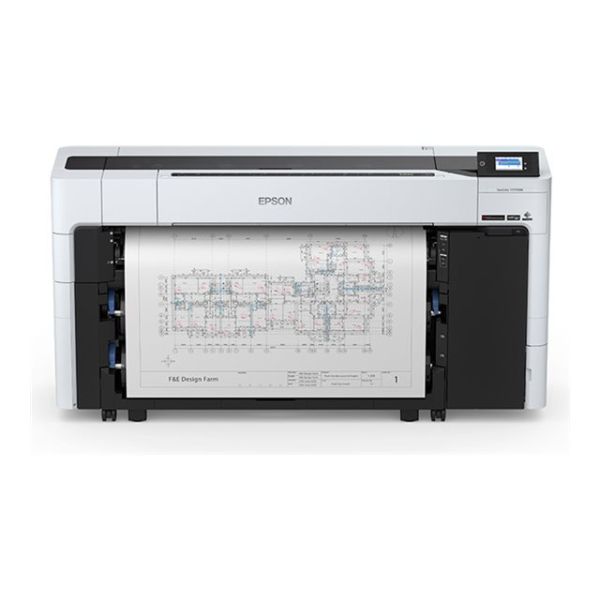

Epson SureColor T7770DM
| General Information | |
|---|---|
| Category | Multi function printers |
| Description | Epson SureColor T7770DM - 44" multifunction printer - color - ink-jet - Roll (111.8 cm x 90.8 m) (media) - Gigabit LAN, USB 3.0, USB host, Wi-Fi(ac) |
| Manufacturer | Epson |
| MSRP | $11,395.00 |
| UNSPSC | 43212110 |
| Main Specifications | |
| Dimensions & Weight / Depth | 50.8 cm |
| Dimensions & Weight / Height | 99.1 cm |
| Dimensions & Weight / Weight | 166 kg |
| Dimensions & Weight / Width | 185 cm |
| Document & Media Handling / Large Format Printer Size | 44" |
| Header / Brand | Epson |
| Miscellaneous / Product Color |
|
| Office Machine / Functions |
|
| Office Machine / Printing Output Type | Color |
| Office Machine / Printing Technology | Ink-jet |
| Office Machine / Type | Printer / copier / scanner |
| Packaged Quantity | 1 |
| PC Connectivity / PC Connection |
|
| PC Connectivity / PC Connection Availability | Yes |
| Service & Support / Type | 1-year warranty |
| Connections | |
| Interfaces |
|
| Operating System Support | Apple Mac OS X 10.9.5 or later, Apple Mac OS X 11 or later, MS Windows 7, MS Windows Server 2003 R2, MS Windows Server 2003 SP2 or later, MS Windows Server 2008, MS Windows Server 2008 R2, MS Windows Server 2012, MS Windows Server 2012 R2, MS Windows Server 2016, MS Windows Server 2019, MS Windows Vista, MS Windows XP (32/64 bits), Windows 10, Windows 8, Windows 8.1 |
| Software Included | Drivers & utilities, EpsonNet Config, EpsonNet Print, EpsonNet Setup, LFP Accounting Tool |
| Copying | |
| Max Copying Resolution | Up to 600 dpi (mono) / up to 600 dpi (color) |
| Max Document Enlargement | 755% |
| Max Document Reduction | 25% |
| Maximum Copies | 99 |
| Dimensions & Weight | |
| Depth | 50.8 cm |
| Height | 99.1 cm |
| Weight | 166 kg |
| Width | 185 cm |
| Dimensions & Weight (JTFpping) | |
| JTFpping Depth | 76.2 cm |
| JTFpping Height | 122 cm |
| JTFpping Weight | 203 kg |
| JTFpping Width | 201 cm |
| Document & Media Handling | |
| Borderless Photo Sizes | Roll (25.4 cm), Roll (30 cm), Roll (40.6 cm), Roll (43.2 cm), Roll (50.8 cm), Roll (61 cm), Roll (91.4 cm), Roll (111.8 cm) |
| Document & Media Handling Details | Input tray - 2 rolls |
| Max Media Size | Other |
| Max Media Weight (lb) | 27 lbs |
| Media Thickness Range | Up to 1.5 mm |
| Speed Details |
|
| Supported Media Sizes | A0 (841 x 1189 mm), A1 (594 x 841 mm), Roll (25.4 cm), Roll (111.8 cm), 203.2 x 203.2 mm, Roll (111.8 cm x 90.8 m) |
| Supported Media Type | Plain paper, photo paper, bond paper, glossy paper, matte paper, poster board, coated paper, film, recycled paper, tracing paper |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Sound Emission | 6.6 dBA (idle) / 49.6 dBA (operating) |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
| General | |
| Connection Availability | Yes |
| Device Type | 44" multifunction printer |
| Display Diagonal Size | 4.3" |
| Display Features | Touch screen |
| Interface | Gigabit LAN, USB 3.0, USB host, Wi-Fi(ac) |
| Office Machine Features | Auto take up reel, scan to USB host, scan to mobile device, scan to network folder, scan to PC |
| Printing Technology | Ink-jet - color |
| Manufacturer Warranty | |
| Service & Support |
|
| Memory | |
| Standard Memory | 9 GB |
| Miscellaneous | |
| Compliant Standards | UL/CSA 62368-1, FCC Class B certified, NRTL, RoHS |
| Consumables Included |
|
| Included Accessories | 2 roll media adapters, maintenance box |
| Power | |
| Power Consumption Operational | 90 Watt |
| Power Consumption Sleep | 2 Watt |
| Power Consumption Standby | 44 Watt |
| Voltage Required | AC 120/230 V (50/60Hz) |
| Printing | |
| Color | 6-ink |
| Image Enhancement Technology | Variable Sized Droplet Technology |
| Ink Cartridge Configuration | 6 cartridges (1 each: cyan, magenta, yellow, red, photo black, matte black) |
| Ink Palette Supported (Colors) | Cyan, magenta, yellow, red, photo black, matte black |
| Ink Type | Epson UltraChrome XD3 Ink |
| Inkjet Technology | Epson PrecisionCore MicroTFP |
| Max Printing Resolution | Up to 2400 x 1200 dpi (mono) / up to 2400 x 1200 dpi (color) |
| Max Printing Resolution Class | Up to 2400 x 1200 dpi (mono) / up to 2400 x 1200 dpi (color) |
| Minimum Ink Droplet Size | 3.5 pl |
| Nozzle Configuration | 6 x 1600 nozzles |
| Printer Drivers / Emulations | EPSON ESC/P-R, Adode PostScript 3, PDF 1.7 |
| Scanning | |
| Interpolated Resolution | 2400 x 2100 dpi |
| Optical Resolution | 600 dpi |
| Scan Element | CIS |
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
secure transaction
Quick Details
- 44" multifunction printer
- color
- ink-jet
- Roll (111.8 cm x 90.8 m) (media)
- Gigabit LAN, USB 3.0, USB host, Wi-Fi(ac)
