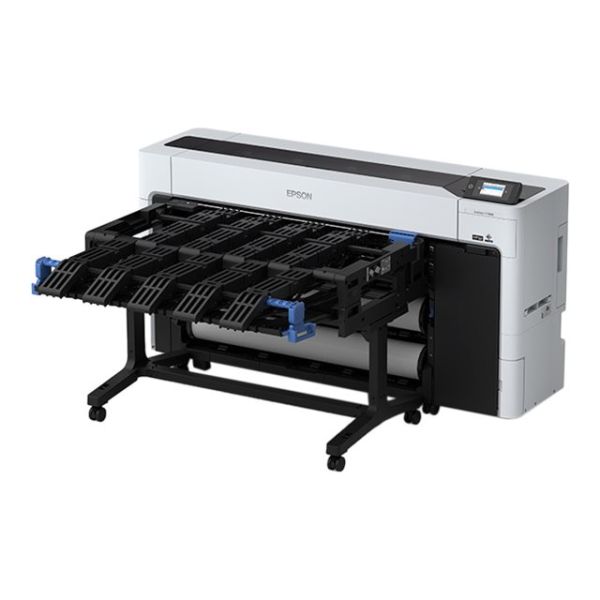

Epson SureColor T7770D
It's rare for an engineer to start with a completely blank page to create a next-generation printer design that meets the complex and demanding needs of technical and production printing environments. Epson has done just that to develop a platform that could take your technical and graphics printing business to the next level. Introducing the SureColor T7770D - a groundbreaking production printer that's everything a large-format printer should be. Engineered to deliver breakthrough performance, the first available 44-inch-wide SureColor T7770D features industry-leading 2.6-inch PrecisionCore printhead technology, delivering fastest in class print speeds. Plus it prints posters and POP displays at speeds over 300 sqft/hr and CAD and technical drawings at production-class speeds over 1,400 sqft/hr. An innovative Adobe Embedded Print engine with four on-board Intel Atom CPUs quickly processes complicated PDF data and accurately reproduces transparent design layers at speeds up to three times faster than previous generations. Featuring an innovative, purpose-built, reliable design with complete front operation, this innovative printer seamlessly produces crisp, detailed prints from virtually anywhere in the workspace - even when pushed against the wall. From vivid posters to crisp CAD drawings, the SureColor T7770D prints with incredible precision and stunning color using vibrant UltraChrome XD3 Ink with a new Red ink/color. And, with its array of convenient, customizable features, such as simple automatic roll loading and versatile media handling, including a dual roll/take-up system, this workhorse printer will easily integrate into almost any production workflow to revolutionize business productivity.
| General Information | |
|---|---|
| Category | Inkjet printers |
| Description | Epson SureColor T7770D - 44" large-format printer - color - ink-jet - Roll (111.8 cm) - 2400 x 1200 dpi - up to 0.27 min/page (mono) / up to 0.27 min/page (color) - capacity: 2 rolls - USB 3.0, Gigabit LAN - cutter |
| Manufacturer | Epson |
| MSRP | $6,495.00 |
| UNSPSC | 43212104 |
| Main Specifications | |
| Dimensions & Weight / Depth | 50.8 cm |
| Dimensions & Weight / Height | 99.06 cm |
| Dimensions & Weight / Width | 185.4 cm |
| Document & Media Handling / Large Format Printer Size | 44" |
| Header / Brand | Epson |
| Miscellaneous / Product Color | Gray |
| Networking / Type | Print server |
| Office Machine / Functions | Printer |
| Office Machine / Printing Output Type | Color |
| Office Machine / Printing Technology | Ink-jet |
| Office Machine / Type | Printer |
| Packaged Quantity | 1 |
| PC Connectivity / PC Connection |
|
| Power Device / Type | Power supply |
| Printer / Connectivity Technology | Wired |
| Printer / Total Media Capacity | 2 rolls |
| Printer / Type | Large-format printer |
| Scanner / Type | None |
| Service & Support / Type | 1-year warranty |
| System Requirements / OS Required |
|
| Dimensions & Weight | |
| Depth | 50.8 cm |
| Height | 99.06 cm |
| Width | 185.4 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Sound Emission (Operating) | 49.6 dBA |
| Environmental Standards | |
| ENERGY STAR | Yes |
| Expansion / Connectivity | |
| Connections |
|
| General | |
| Printer Type | 44" large-format printer - ink-jet - color |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year - on-site - response time: next business day |
| Media Handling | |
| Max Media Size | Roll (111.8 cm) |
| Max Media Size (Custom) | 1118 mm |
| Max Printing Length | 90.8 m |
| Media Feeders | 1 x manual - Roll (111.8 cm) |
| Media Sizes | Roll (111.8 cm) |
| Media Thickness Range | 0.07 mm - 0.8 mm |
| Media Type | Plain paper |
| Total Media Capacity | 2 rolls |
| Miscellaneous | |
| Compliant Standards | RoHS, NRTL, UL/CSA/EN 62368-1, FCC Class B certified |
| Consumables Included |
|
| Included Accessories | 2 roll adapters, start here poster |
| Networking | |
| Networking | Print server |
| Power | |
| Frequency Required | 50/60 Hz |
| Power Consumption Operational | 70 Watt |
| Power Consumption Sleep | 2 Watt |
| Power Consumption Stand by | 32 Watt |
| Power Device | Power supply |
| Voltage Required | AC 110-240 V |
| Printer | |
| Built-in Devices | 4.3 inch LCD touch screen |
| Connectivity Technology | Wired |
| Cutter | Yes |
| Ink Cartridge Configuration | 6 individual ink tanks |
| Ink Palette Supported (Colors) | 6-ink - cyan, magenta, yellow, red, photo black, matte black |
| Ink Type | Epson UltraChrome XD3 Ink |
| Inkjet Technology | Epson PrecisionCore MicroTFP |
| Interface | USB 3.0, Gigabit LAN |
| Language Simulation | EPSON ESC/P Raster, HP GL/2, HP RTL, PDF 1.7, PostScript 3 |
| Max Resolution (B&W) | 2400 x 1200 dpi |
| Max Resolution (Color) | 2400 x 1200 dpi |
| Max Resolution Class (B&W) | 2400 x 1200 dpi |
| Max Resolution Class (Color) | 2400 x 1200 dpi |
| Minimum Ink Droplet Size | 3.5 pl |
| Print Speed | Up to 0.27 min/page |
| RAM | |
| RAM Installed (Max) | 4 GB |
| Software / System Requirements | |
| OS Required | Apple MacOS X 10.6.8 or later, Apple macOS 11.0, Windows 8, Microsoft Windows 7, Windows 8.1, Microsoft Windows Vista, Windows 10, Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2003 R2, Microsoft Windows Server 2003 SP2 or later, Microsoft Windows Server 2008, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019 |
| Software Included | Drivers & Utilities |
