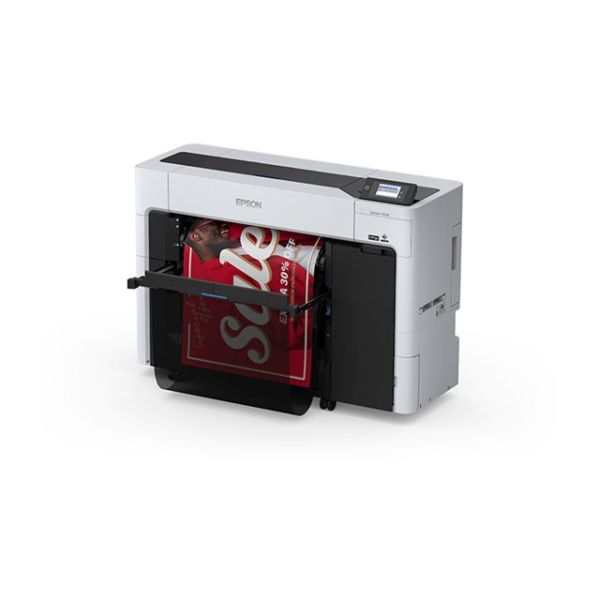

Epson SureColor T3770E
| General Information | |
|---|---|
| Category | Inkjet printers |
| Description | Epson SureColor T3770E - 24" large-format printer - color - ink-jet - Roll (61 cm) - 2400 x 1200 dpi - up to 1.08 min/page (mono) / up to 1.08 min/page (color) - USB 3.0, Gigabit LAN, Wi-Fi(ac), USB host - cutter |
| Manufacturer | Epson |
| MSRP | $3,495.00 |
| UNSPSC | 43212104 |
| Main Specifications | |
| Dimensions & Weight / Depth | 50.8 cm |
| Dimensions & Weight / Height | 96.5 cm |
| Dimensions & Weight / Weight | 115 kg |
| Dimensions & Weight / Width | 137 cm |
| Document & Media Handling / Large Format Printer Size | 24" |
| Header / Brand | Epson |
| Miscellaneous / Product Color |
|
| Networking / Type | Print server |
| Office Machine / Functions | Printer |
| Office Machine / Printing Output Type | Color |
| Office Machine / Printing Technology | Ink-jet |
| Office Machine / Type | Printer |
| Packaged Quantity | 1 |
| PC Connectivity / PC Connection |
|
| Power Device / Type | Power supply |
| Printer / Connectivity Technology |
|
| Printer / Type | Large-format printer |
| Scanner / Type | None |
| Service & Support / Type | 1-year warranty |
| System Requirements / OS Required |
|
| Dimensions & Weight | |
| Depth | 50.8 cm |
| Height | 96.5 cm |
| Weight | 115 kg |
| Width | 137 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Sound Emission (Operating) | 49.6 dBA |
| Environmental Standards | |
| ENERGY STAR | Yes |
| Expansion / Connectivity | |
| Connections |
|
| General | |
| Printer Type | 24" large-format printer - ink-jet - color |
| Manufacturer Warranty | |
| Service & Support |
|
| Media Handling | |
| Borderless Photo Sizes | Roll (25.4 cm), Roll (33 cm), Roll (40.6 cm), Roll (43.2 cm), Roll (50.8 cm), Roll (61 cm) |
| Max Media Size | Roll (61 cm) |
| Max Media Size (Custom) | 610 mm |
| Max Printing Length | 90.8 m |
| Media Feeders | 1 x automatic - 1 roll - Roll (61 cm) |
| Media Sizes | Roll (25.4 - 61 cm), A1 (594 x 841 mm) |
| Media Thickness Range | Up to 1.5 mm |
| Media Type | Glossy paper, technical paper, bond paper, matte paper, continuous paper, plain paper, poster board |
| Media Weight (lbs) | 27 lbs |
| Min Media Size (Custom) | 203 mm x 203 mm |
| Miscellaneous | |
| Compliant Standards | RoHS, UL/CSA 62368-1, NRTL, FCC Class B certified |
| Consumables Included |
|
| Included Accessories | Start here poster, roll adapter |
| Networking | |
| Networking | Print server |
| Power | |
| Electric Current Required | 3.4 A |
| Frequency Required | 50/60 Hz |
| Power Consumption Operational | 75 watt |
| Power Consumption Sleep | 2 watt |
| Power Consumption Stand by | 0.3 watt |
| Power Device | Power supply - internal |
| Voltage Required | AC 110-240 V |
| Printer | |
| Built-in Devices | 4.3 inch LCD touch screen |
| Connectivity Technology | Wireless |
| Cutter | Yes |
| Image Enhancement Technology | EPSON Variable-sized Droplet Technology |
| Ink Cartridge Configuration | 6 individual ink tanks |
| Ink Palette Supported (Colors) | 6-ink - cyan, magenta, yellow, red, photo black, matte black |
| Ink Type | Epson UltraChrome XD3 Ink |
| Inkjet Technology | Epson PrecisionCore MicroTFP |
| Interface | USB 3.0, Gigabit LAN, Wi-Fi(ac), USB host |
| Language Simulation | EPSON ESC/P Raster, HP GL/2, HP RTL |
| Max Resolution (B&W) | 2400 x 1200 dpi |
| Max Resolution (Color) | 2400 x 1200 dpi |
| Max Resolution Class (B&W) | 2400 x 1200 dpi |
| Max Resolution Class (Color) | 2400 x 1200 dpi |
| Minimum Ink Droplet Size | 3.5 pl |
| Nozzle Configuration | 6 x 1600 nozzles |
| Print Speed |
|
| Printer Features | Borderless printing |
| RAM | |
| RAM Installed (Max) | 4 GB |
| Software / System Requirements | |
| OS Required | Apple MacOS X 10.9.5 or later, Apple macOS 11 or later, Microsoft Windows Vista / 7 / 8 / 8.1 / 10, Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2019, Microsoft Windows Server 2016, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Microsoft Windows Server 2003 R2, Microsoft Windows Server 2003 SP2 or later |
| Software Included | EpsonNet Setup, EpsonNet Print, EpsonNet Config SE, Epson Print Admin, Epson Device Admin, Epson Media Installer, Epson Edge Dashboard, LFP Accounting Tool, Windows and Mac print drivers, software and firmware updaters |
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$249.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
