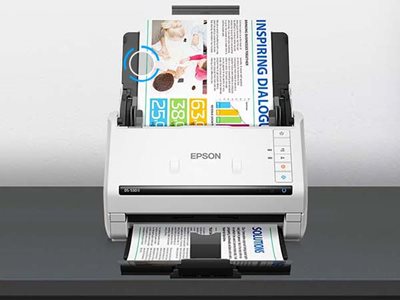

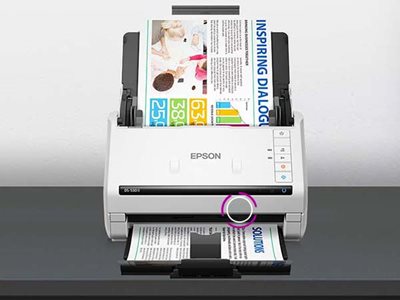

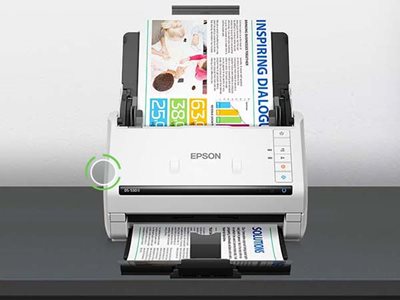

Epson DS-530 II - Document scanner
- Disclaimers: 1 | Based on letter-sized scans at 300 dpi in Black-and-White, Grayscale or Color Mode. | | 2 | Peak daily duty cycle is the highest recommended number of scanned sheets per day. For best results, do not exceed the peak daily duty cycle. Calculations based on a scanning speed of 35 ppm and an assumed daily use time. | | | 3 | For more information, go to epson.com/3yearscannerwarranty | | 4 | Subject to limited warranty terms and conditions. Expedited JTFpping not available in all areas. Road Service orders must be in by 3 p.m. Eastern Time for Next-Business-Day delivery. | | 5 | With Epson Document Capture software installed on the connected Windows | ® | PC or Mac | ® | . Internet connection required. | | 6 | Carrier sheet required. (Sold separately)
| General Information | |
|---|---|
| Category | Scanners |
| Description | Epson DS-530 II - Document scanner - Contact Image Sensor (CIS) - Duplex - 216 x 6096 mm - 600 dpi x 600 dpi - up to 35 ppm (mono) / up to 35 ppm (color) - ADF (50 sheets) - up to 4000 scans per day - USB 3.0 |
| Manufacturer | Epson |
| MSRP | $399.00 |
| UNSPSC | 43211711 |
| Main Specifications | |
| Dimensions & Weight / Depth | 29.5 cm |
| Dimensions & Weight / Height | 17.5 cm |
| Dimensions & Weight / Weight | 3.7 kg |
| Dimensions & Weight / Width | 16.8 cm |
| Header / Brand | Epson |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Scanner / Automatic Duplexing | Yes |
| Scanner / Document Feeder Type | Automatic |
| Scanner / Interface Type | USB 3.0 |
| Scanner / Max Supported Document Size | 216 x 6096 mm |
| Scanner / Supported Document Type |
|
| Scanner / Type | Document scanner |
| Service & Support / Type | 3-year warranty |
| System Requirements / OS Required |
|
| Dimensions & Weight | |
| Depth | 29.5 cm |
| Height | 17.5 cm |
| Weight | 3.7 kg |
| Width | 16.8 cm |
| Dimensions & Weight (JTFpping) | |
| JTFpping Depth | 36.6 cm |
| JTFpping Height | 29.2 cm |
| JTFpping Weight | 4.8 kg |
| JTFpping Width | 25.1 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 80% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 5 °C |
| Environmental Standards | |
| EPEAT Compliant | EPEAT Bronze |
| Expansion / Connectivity | |
| Interfaces Details | USB 3.0 |
| General | |
| Interface Type | USB 3.0 |
| Max Supported Document Size | 216 x 6096 mm |
| Type | Document scanner - desktop |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Media Handling | |
| Document Feeder Type | Automatic |
| Feeder Capacity | 50 sheets |
| Supported Document Type | Plain paper, plastic card |
| Miscellaneous | |
| Cables Included | 1 x USB cable |
| Compliant Standards | RoHS |
| Power | |
| Power Consumption Operational (Standby) | 11 watt |
| Power Consumption Sleep | 1 watt |
| Power Consumption Stand by | 5.4 watt |
| Power Device | External power adapter |
| Scanner | |
| Automatic Duplexing | Yes |
| Compliant Standards | TWAIN, ISIS |
| Duty Cycle | 5500 scans per day |
| Grayscale Depth | 30-bit color |
| Grayscale Depth (External) | 24-bit (16.7 million colors) |
| Input Type | Color |
| Interpolated Resolution | 1200 dpi x 1200 dpi |
| Lamp / Light Source Type | 3-color RGB LED |
| Max Document Scan Speed B/W | 35 ppm |
| Max Document Scan Speed Color | 35 ppm |
| Optical Resolution | 600 dpi x 600 dpi |
| Scan Mode | Single-pass |
| Scanner Speed Details |
|
| Scanning Sensor Type | Contact Image Sensor (CIS) |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7 / 8 / 8.1 / 10, Apple MacOS X 10.10 - 10.15 |
| Software Included | EPSON Document Capture, EPSON Scan 2, OpenText Captiva ISIS |
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$149.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
secure transaction
Quick Details
- Contact Image Sensor (CIS)
- Duplex
- 216 x 6096 mm
- 600 dpi x 600 dpi
- up to 35 ppm (mono) / up to 35 ppm (color)
