Lenovo ThinkCentre M90s Gen 6 12YU

Availability: Out of stock
SKU
12YU000QUS
UPC Code
198157780910
Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transactionsecure transaction
The Lenovo ThinkCentre M90s Gen 6 is designed for efficiency and sustainability, featuring a small form factor ideal for modern workplaces. It includes a powerful Intel Core Ultra 9 processor with 24 cores, offering performance with a max turbo speed of 5.6 GHz. With 32 GB of DDR5 SDRAM and a 1 TB SSD, this desktop handles demanding tasks while ensuring quick data access and storage. The ENERGY STAR certified device and EPEAT Gold compliance showcase its commitment to environmental responsibility, making it a choice for eco-conscious users. Connectivity is seamless with multiple USB ports, HDMI, and DisplayPort options, catering to various device connections. Integrated Intel Wi-Fi 7 and Bluetooth 5.4 ensure high-speed Internet access and wireless device pairing. The built-in Realtek high definition audio codec provides an enhanced audio experience, completing this versatile desktop package. The Lenovo ThinkCentre M90s Gen 6 is a reliable computer that meets performance demands and environmental standards, fitting for any professional setup.

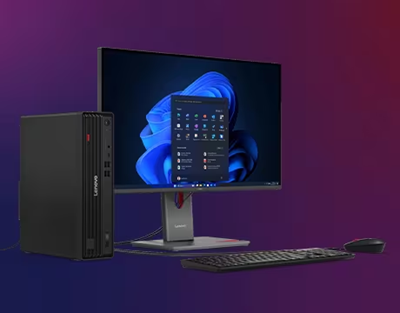

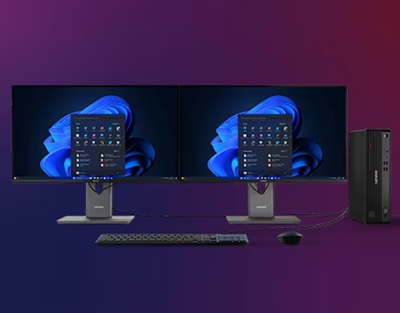

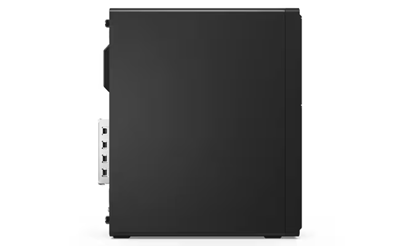

Product image 12YU000QUS
Product image 12YU000QUS
Product image 12YU000QUS
Product image 12YU000QUS
Product image 12YU000QUS
Product image 12YU000QUS
Product image 12YU000QUS
Product image 12YU000QUS
Product image 12YU000QUS
Product image 12YU000QUS
Product image 12YU000QUS
Product image 12YU000QUS
Product image 12YU000QUS
  • Empower Your Work with Advanced AI & Lightning-Fast Speed: ThinkCentre M90s Gen 6 (Intel) Small Form Factor PC | Industry-first optional dNPU for AI-accelerated workflows | Upgraded CPU & GPU for lightning-fast performance | Advanced security with optional RAID 5 support for data protection
  • Versatile Design for Endless Possibilities: Need more room to grow? With the Flex I/O and PCIe expansion, this device adapts to your business. Add storage, graphics, network cards and more while lowering your bottom line. The M90s Gen 6 SFF PC ensures you stay ahead in the fast-paced world of technology. Monitor sold separately.
  • Minimize Potential Downtime: Safeguard your data while ensuring steady performance with optional advanced RAID. Critical info gets stored across multiple drives and, should any corruption occur, data can be restored. RAID provides cost-effective assurance that keeps you up and running.
  • Blazing Speed for High-Performance Tasks: Experience the power of Gen5 PCIe technology for lightning-fast performance. Enjoy double the bandwidth, faster speeds, and greater reliability with this generational upgrade. Ideal for heavy computing tasks, this PC ensures work without delays. Monitor sold separately.
  • Make Light Work of IT: With the option of Intel vPro ® technology, IT professionals can deploy, update, and maintain a whole fleet of PCs. Whether installing security updates, providing software, or troubleshooting, IT can handle everything from a centralized and secure remote location. Monitor sold separately.
  • Keeps Its Cool: An Intelligent Cooling Engine (ICE) provides the perfect balance between performance and efficiency. With ICE, the M90s Gen 6 runs cool and quiet while also ensuring that demanding workloads run steady without energy lags or bursts. Monitor sold separately.
General Information
CategoryDesktop computers
DescriptionLenovo ThinkCentre M90s Gen 6 12YU - AI PC - SFF Core Ultra 9 285 / up to 5.6 GHz - vPro Enterprise - RAM 16 GB - SSD 512 GB - TCG Opal Encryption 2, NVMe - DVD-Writer - Intel Graphics - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 - Win 11 Pro - monitor: none - keyboard: English - black - Lenovo TopSeller
ManufacturerLenovo
MSRP$2,289.00
UNSPSC43211507
Main Specifications
Chassis / Form FactorSmall form factor
Dimensions & Weight / Depth29.97 cm
Dimensions & Weight / Height33.95 cm
Dimensions & Weight / Weight5.3 kg
Dimensions & Weight / Width9.25 cm
Display / TypeNone.
Hard Drive / Capacity512 GB
Hard Drive / InterfacePCI Express 4.0 x4
Hard Drive / Interface TypePCI Express 4.0 x4
Header / BrandLenovo
Header / Country KitsUnited States
Header / LocalizationEnglish
Mainboard / Chipset TypeIntel Q870
Miscellaneous / Product ColorBlack
Networking / Data Link Protocol
  • Bluetooth 5.3
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6E)
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Networking / Wireless LAN SupportedYes
Networking / Wireless Protocol
  • 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
  • Bluetooth 5.3
Optical Storage / Drive TypeDVD-Writer
Optical Storage / TypeDVD±RW
OS Provided / TypeWindows 11 Pro
Packaged Quantity1
Processor / GenerationSeries 2
Processor / ManufacturerIntel
Processor / Number of Cores24-core
Processor / Processor Number285
Processor / TypeCore Ultra 9
RAM / Form FactorDIMM 288-pin
RAM / TechnologyDDR5 SDRAM
System / Hard Drive Capacity512 GB
System / Platform TechnologyIntel vPro Enterprise
System / TypePersonal computer
Video Output / Graphics ProcessorIntel Graphics
Audio Output
Compliant StandardsHigh Definition Audio
Cache Memory
Cache Per Processor36 MB
Installed Size36 MB
Dimensions & Weight
Depth29.97 cm
Height33.95 cm
Weight5.3 kg
Width9.25 cm
Expansion / Connectivity
Interfaces
  • 1 x USB-C 3.2 Gen 2x2 (1 front) (15W charging)
  • 4 x USB 3.2 Gen 1 (2 front, 2 rear)
  • 2 x USB 3.2 Gen 2 (2 front)
  • 1 x headphones/microphone (1 front)
  • 2 x USB 2.0 (2 rear)
  • 1 x HDMI (1 rear) (TMDS compatible)
  • 2 x DisplayPort 1.4a (2 rear)
  • 1 x LAN (1 rear)
  • 1 x audio line-out (1 rear)
Slots
  • 3 (total) / 2 (free) x M.2 Card - 2280 (for SSD)
  • 1 PCIe 5.0 x16 - low-profile
  • 1 PCIe 4.0 x16 - low-profile (x4 mode)
  • 2 PCIe 3.0 x1 - low-profile
General
AI LevelAI PC
Built-in DevicesSpeaker
ColorBlack
Embedded SecurityDiscrete Trusted Platform Module (TPM 2.0) Security Chip
LocalizationLanguage: English / region: United States
Platform TechnologyIntel vPro Enterprise
Product Form FactorSFF
TypePersonal computer
Graphics Controller
Graphics ProcessorIntel Graphics shared video memory (UMA) - up to 8 TOPS
Hard Drive
Capacity1 x 512 GB
FeaturesTCG Opal Encryption 2, NVM Express (NVMe)
Interface TypePCI Express 4.0 x4
TypeSSD - M.2 2280
Input Device
TypeMouse, keyboard
Keyboard
InterfaceUSB
Keyboard NameLenovo Traditional Keyboard
Localization & LayoutEnglish
Miscellaneous
Compliant StandardsRoHS, FIPS 140-2, GREENGUARD, Energy-Related Products (ErP) Lot 3, TCG Certified, MIL-STD 810H
Manufacturer Selling ProgramLenovo TopSeller
Security Slot TypeKensington security slot
Theft/Intrusion ProtectionSecurity lock slot (cable lock sold separately), padlock loop
Monitor
Monitor TypeNone.
Mouse
InterfaceUSB
Mouse NameLenovo Calliope Mouse
Networking
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3
FeaturesDual stream (2x2)
Wireless LAN SupportedYes
Wireless NICIntel Wi-Fi 6E AX 211
Neural Processor Unit (NPU)
AI Datatype Support on NPUINT8
AI Software Frameworks Supported by NPUDirectML, OpenVINO, WebNN, WindowsML, ONNX RT
Neural Processor Unit (NPU)Intel AI Boost
NPU Performance Up To (TOPS)13 TOPS
Sparsity SupportYes
Total Processor Performance Up To (TOPS)36 TOPS
Windows Studio Effects SupportYes
Operating System / Software
OS ProvidedWindows 11 Pro English
Optical Storage
TypeDVD±RW DVD-Writer - SATA
Power
Device TypePower supply
Efficiency92%
Power Provided310 watt
Voltage RequiredAC 100-240 V (50/60 Hz)
Processor / Chipset
Chipset TypeIntel Q870
CPUIntel Core Ultra 9 (Series 2) 285
CPU Qty1
Max CPU Qty1
Max Turbo Speed5.6 GHz
Number of Cores24-core
RAM
Configuration Features2 x 8 GB
Effective Memory Speed5600 MT/s
FeaturesUnbuffered, dual channel memory architecture
Form FactorDIMM 288-pin
Installed Size16 GB (installed) / 128 GB (max)
Slots4 (total) / 2 (empty)
TechnologyDDR5 SDRAM
Sustainability Information
ENERGY STAR CertifiedYes
ENERGY STAR Version9.0
EPEAT CompliantEPEAT Gold
TCO CertifiedTCO Certified, generation 10, for desktops
