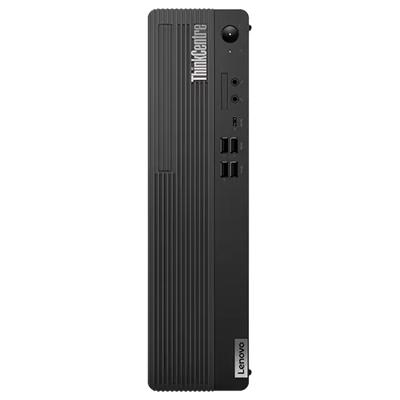

Lenovo ThinkCentre M90s Gen 5 12V4

Details

The Lenovo ThinkCentre M90s Gen 5 is designed for professionals seeking a powerful, secure, and environmentally sustainable desktop solution. This small form factor PC is powered by a 14-core Intel Core i5 processor, capable of reaching turbo speeds up to 5 GHz, making it perfect for handling complex tasks with ease. It comes equipped with DDR5 memory, ensuring swift and efficient data processing. Connectivity is a breeze with Bluetooth 5.3, Wi-Fi 6E, and multiple USB ports, including a USB-C 3.2 Gen 2 for fast data transfer and charging. Security features include a discrete TPM 2.0 chip and Intel vPro technology, safeguarding your data against threats. Moreover, its ENERGY STAR 8.0 and EPEAT Gold certifications highlight Lenovo's commitment to reducing environmental impact, making the ThinkCentre M90s Gen 5 an ideal choice for eco-conscious businesses and individuals.

Lenovo ThinkCentre M90s Gen 5 Small Form Factor: Advanced computing solutions for today's professional | Integrated AI for data analysis and project task management | Crafted for increased reliability now and in the future | Elevated creative potential with the aid of enhanced graphics | Robustly secure & reliable, certified energy-efficient

Specifications

General Information
Category	Desktop computers
Description	Lenovo ThinkCentre M90s Gen 5 12V4 - SFF Core i5 i5-14500 / up to 5 GHz - vPro Enterprise - RAM 16 GB - SSD 256 GB - TCG Opal Encryption 2, NVMe - DVD-Writer - UHD Graphics 770 - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 - Win 11 Pro - monitor: none - keyboard: English - black - Lenovo TopSeller
Manufacturer	Lenovo
MSRP	$1,659.00
UNSPSC	43211507
Main Specifications
Chassis / Form Factor	Small form factor
Dimensions & Weight / Depth	29.77 cm
Dimensions & Weight / Height	33.95 cm
Dimensions & Weight / Weight	5.3 kg
Dimensions & Weight / Width	9.25 cm
Display / Type	None.
Hard Drive / Capacity	256 GB
Hard Drive / Interface	PCI Express 4.0 x4
Hard Drive / Interface Type	PCI Express 4.0 x4
Header / Brand	Lenovo
Header / Country Kits	United States
Header / Localization	English
Mainboard / Chipset Type	Intel Q670
Miscellaneous / Product Color	Black
Networking / Data Link Protocol	Bluetooth 5.3 Ethernet Fast Ethernet Gigabit Ethernet IEEE 802.11a IEEE 802.11ac IEEE 802.11ax (Wi-Fi 6E) IEEE 802.11b IEEE 802.11g IEEE 802.11n
Networking / Wireless LAN Supported	Yes
Networking / Wireless Protocol	802.11a/b/g/n/ac/ax (Wi-Fi 6E) Bluetooth 5.3
Optical Storage / Drive Type	DVD-Writer
Optical Storage / Type	DVD±RW
OS Provided / Type	Windows 11 Pro
Packaged Quantity	1
Processor / Clock Speed	2.6 GHz
Processor / Generation	14
Processor / Manufacturer	Intel
Processor / Number of Cores	14-core
Processor / Processor Number	I5-14500
Processor / Type	Core i5
RAM / Form Factor	DIMM 288-pin
RAM / Memory Speed	4400 MHz
RAM / Technology	DDR5 SDRAM
Service & Support / Type	3-year warranty
System / Hard Drive Capacity	256 GB
System / Platform Technology	Intel vPro Enterprise
System / Type	Personal computer
Video Output / Graphics Processor	Intel UHD Graphics 770
Audio Output
Compliant Standards	High Definition Audio
Cache Memory
Cache Per Processor	24 MB
Installed Size	24 MB
Dimensions & Weight
Depth	29.77 cm
Height	33.95 cm
Weight	5.3 kg
Width	9.25 cm
Dimensions & Weight (JTFpping)
JTFpping Depth	39.5 cm
JTFpping Height	53 cm
JTFpping Weight	7.6 kg
JTFpping Width	19.5 cm
Environmental Parameters
Humidity Range Operating	20 - 80%
Max Operating Temperature	35 °C
Min Operating Temperature	5 °C
Expansion / Connectivity
Bays	1 (total) / 0 (free) x external 5.25" Slim Line 1 (total) / 1 (free) x internal 3.5" 1 (total) / 1 (free) x internal 2.5"
Interfaces	1 x USB-C 3.2 Gen 2 (1 in front) (data transfer, 15W charging) 6 x USB 3.2 Gen 1 (2 front, 4 rear) 2 x USB 3.2 Gen 2 (2 in front) 1 x headphones/microphone (1 in front) 1 x microphone (1 in front) 1 x LAN (Gigabit Ethernet) 1 x audio line-out 1 x HDMI 2 x DisplayPort 1.4a 1 x DisplayPort 1.2
Slots	1 (total) / 0 (free) x PCIe 4.0 x16 - low-profile 1 (total) / 1 (free) x PCIe 4.0 x16 - low-profile (x4 mode) 1 (total) / 1 (free) x PCIe 3.0 x1 - low-profile 1 (total) / 0 (free) x M.2 Card (for WLAN) 2 (total) / 1 (free) x M.2 Card (for SSD)
General
Built-in Devices	Speaker
Color	Black
Embedded Security	Discrete Trusted Platform Module (TPM 2.0) Security Chip
Localization	Language: English / region: United States
Platform Technology	Intel vPro Enterprise
Product Form Factor	SFF
Type	Personal computer
Graphics Controller
Graphics Processor	Intel UHD Graphics 770 shared video memory (UMA)
Max Monitors Supported	4
Video Interfaces	HDMI, DisplayPort
Hard Drive
Capacity	1 x 256 GB
Features	TCG Opal Encryption 2, NVM Express (NVMe)
Interface Type	PCI Express 4.0 x4
Type	SSD - M.2 2280
Input Device
Type	Mouse, keyboard
Keyboard
Interface	USB
Keyboard Name	Lenovo Traditional Keyboard
Localization & Layout	English
Manufacturer Warranty
Service & Support	Limited warranty - 3 years - on-site
Miscellaneous
Compliant Standards	RoHS, FIPS 140-2, GREENGUARD, Energy-Related Products (ErP) Lot 3, TCG Certified
Manufacturer Selling Program	Lenovo TopSeller
Security Slot Type	Kensington security slot
Theft/Intrusion Protection	Security lock slot (cable lock sold separately), padlock loop
Monitor
Monitor Type	None.
Mouse
Interface	USB
Mouse Name	Lenovo Calliope Mouse
Networking
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3
Ethernet Controller	Intel I219-LM
Features	Wake on LAN (WoL), dual stream (2x2)
Interface (Bus) Type	M.2 Card
Wireless LAN Supported	Yes
Wireless NIC	Intel Wi-Fi 6E AX 211
Operating System / Software
OS Provided	Windows 11 Pro English
Optical Storage
Type	DVD±RW DVD-Writer - SATA
Power
Device Type	Power supply
Efficiency	92%
Power Provided	310 watt
Voltage Required	AC 100-240 V (50/60 Hz)
Processor / Chipset
Chipset Type	Intel Q670
Clock Speed	2.6 GHz (P-core) / 1.9 GHz (E-core)
CPU	Intel Core i5 (14th Gen) i5-14500
CPU Qty	1
Max CPU Qty	1
Max Turbo Speed	5 GHz (P-core) / 3.7 GHz (E-core)
Number of Cores	14-core
RAM
Configuration Features	2 x 8 GB
Effective Memory Speed	4400 MT/s
Features	Unbuffered, dual channel memory architecture
Form Factor	DIMM 288-pin
Installed Size	16 GB (installed) / 128 GB (max)
Slots	4 (total) / 2 (empty)
Technology	DDR5 SDRAM
Storage Controller
Controller Interface Type	SATA 6Gb/s
Type	1 x SATA
Sustainability Information
Carbon Footprint	491 kg carbon emissions
ENERGY STAR Certified	Yes
ENERGY STAR Version	8.0
EPEAT Compliant	EPEAT Gold
PAIA Version	1.4.0
TCO Certified	TCO Certified Desktops 9
Total CF/unit Standard Deviation (kg CO2e)	99
