Lenovo ThinkCentre M90q Gen 5 12TH

Availability: Out of stock
SKU
12TH000HUS
Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transactionsecure transaction
The Lenovo ThinkCentre M90q Gen 5 is designed for efficiency and compactness, offering a powerful computing experience in an ultra-small form factor. This personal computer features an Intel Core i7 processor with 20 cores and a clock speed of 2.1 GHz, ensuring smooth multitasking and efficient operation for any workload. With DDR5 SDRAM for rapid data processing and a built-in trusted platform module for enhanced security, this device is built to handle demanding tasks securely. Equipped with PCI Express 4.0 x4 SSD storage, the system delivers quick data access and storage performance. The connectivity options are plentiful, featuring multiple USB ports, HDMI, and DisplayPort interfaces, enabling integration with peripherals. EPEAT Gold and ENERGY STAR certifications reflect its environmentally conscious design, allowing users to operate sustainably while meeting their performance needs.

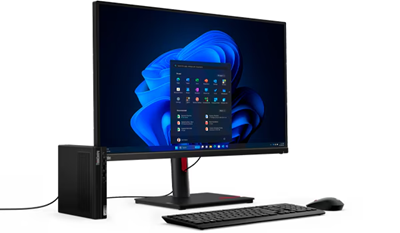

Product image 12TH000HUS

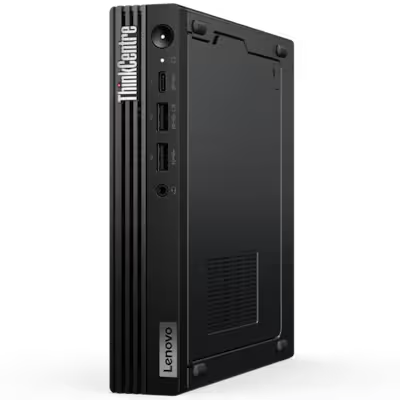

Product image 12TH000HUS
Product image 12TH000HUS
  • Tiny Desktop With Heavyweight Power: Lenovo ThinkCentre M90q Gen 5 Tiny (Intel) PC | Multi-layered security and manageability | Optional removable dust cover for easy maintenance and extended system life | Compact PC with extensive configuration options and customizable expansion slots | Ideal for healthcare, retail, and finance, supports up to 4 monitors
General Information
CategoryDesktop computers
DescriptionLenovo ThinkCentre M90q Gen 5 12TH - Tiny Core i7 i7-14700 / up to 5.4 GHz - vPro Enterprise - RAM 16 GB - SSD 1 TB - TCG Opal Encryption 2, NVMe - UHD Graphics 770 - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 - Win 11 Pro - monitor: none - keyboard: English - black - Lenovo TopSeller
ManufacturerLenovo
MSRP$2,239.00
UNSPSC43211507
Main Specifications
Chassis / Form FactorUltra small form factor
Dimensions & Weight / Depth18.29 cm
Dimensions & Weight / Height3.65 cm
Dimensions & Weight / Weight1.25 kg
Dimensions & Weight / Width17.9 cm
Display / TypeNone.
Hard Drive / Capacity1 TB
Hard Drive / InterfacePCI Express 4.0 x4
Hard Drive / Interface TypePCI Express 4.0 x4
Header / BrandLenovo
Header / Country KitsUnited States
Header / LocalizationEnglish
Mainboard / Chipset TypeIntel Q670
Miscellaneous / Product ColorBlack
Networking / Data Link Protocol
  • Bluetooth 5.3
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6E)
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Networking / Wireless LAN SupportedYes
Networking / Wireless Protocol
  • 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
  • Bluetooth 5.3
Optical Storage / Drive TypeNo optical drive
Optical Storage / TypeNone
OS Provided / TypeWindows 11 Pro
Packaged Quantity1
Processor / Clock Speed2.1 GHz
Processor / Generation14
Processor / ManufacturerIntel
Processor / Number of Cores20-core
Processor / Processor NumberI7-14700
Processor / TypeCore i7
RAM / Form FactorSO-DIMM 262-pin
RAM / TechnologyDDR5 SDRAM
Service & Support / Type3-year warranty
System / Hard Drive Capacity1 TB
System / Platform TechnologyIntel vPro Enterprise
System / TypePersonal computer
Video Output / Graphics ProcessorIntel UHD Graphics 770
Audio Output
Compliant StandardsHigh Definition Audio
Speakers Included1 x tweeter
Cache Memory
Cache Per Processor33 MB
Installed Size33 MB
Dimensions & Weight
Depth18.29 cm
Height3.65 cm
Weight1.25 kg
Width17.9 cm
Environmental Parameters
Humidity Range Operating20 - 80%
Max Operating Temperature35 °C
Min Operating Temperature5 °C
Expansion / Connectivity
Interfaces
  • 2 x USB 3.2 Gen 1 (2 rear) (one of them supports SmartPower On)
  • 4 x USB 3.2 Gen 2 (2 front, 2 rear) (one of them is Always On, fast-charging (5V, 2.1A))
  • 1 x HDMI (1 rear) (TMDS compatible)
  • 1 x DisplayPort 1.4a (1 rear)
  • 1 x LAN (Gigabit Ethernet) - RJ-45 (1 rear)
  • 1 x USB-C 3.2 Gen 2x2 (1 front) (data only)
  • 1 x headphones/microphone (1 front)
  • 1 x DisplayPort (1 rear)
Slots
  • 1 PCIe 4.0 x8 - low-profile
  • 2 M.2 Card (for SSD)
  • 1 M.2 Card (for WLAN)
General
Built-in DevicesSpeaker
ColorBlack
Embedded SecurityDiscrete Trusted Platform Module (TPM 2.0) Security Chip
LocalizationLanguage: English / region: United States
Platform TechnologyIntel vPro Enterprise
Product Form FactorTiny
TypePersonal computer
Graphics Controller
Graphics ProcessorIntel UHD Graphics 770 shared video memory (UMA)
Hard Drive
Capacity1 x 1 TB
FeaturesTCG Opal Encryption 2, NVM Express (NVMe) TCG Opal Encryption 2.0
Interface TypePCI Express 4.0 x4
TypeSSD - M.2 2280
Input Device
TypeMouse, keyboard
Keyboard
InterfaceUSB
Keyboard NameLenovo Traditional Keyboard
Localization & LayoutEnglish
Manufacturer Warranty
Service & SupportLimited warranty - 3 years - on-site
Miscellaneous
Compliant StandardsRoHS, FIPS 140-2, Energy-Related Products (ErP) Lot 3, TCG Certified
Included AccessoriesVertical stand
Manufacturer Selling ProgramLenovo TopSeller
Security Slot TypeKensington security slot
Theft/Intrusion ProtectionSecurity lock slot (cable lock sold separately), chassis intrusion switch
Monitor
Monitor TypeNone.
Mouse
InterfaceUSB
Mouse NameLenovo Calliope Mouse
Networking
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3
FeaturesDual stream (2x2)
Wireless LAN SupportedYes
Wireless NICIntel Wi-Fi 6E AX 211
Operating System / Software
OS ProvidedWindows 11 Pro English
Optical Storage
TypeNo optical drive
Power
Device TypePower adapter
Efficiency89%
Power Provided230 watt
Voltage RequiredAC 100-240 V (50/60 Hz)
Processor / Chipset
Chipset TypeIntel Q670
Clock Speed2.1 GHz (P-core) / 1.5 GHz (E-core)
CPUIntel Core i7 (14th Gen) i7-14700
CPU Qty1
Max CPU Qty1
Max Turbo Speed5.4 GHz (P-core) / 4.2 GHz (E-core)
Number of Cores20-core
RAM
Configuration Features1 x 16 GB
FeaturesDual channel memory architecture
Form FactorSO-DIMM 262-pin
Installed Size16 GB (installed) / 64 GB (max)
Rated Memory Speed5600 MHz
Slots2 (total) / 1 (empty)
TechnologyDDR5 SDRAM
Sustainability Information
ENERGY STAR CertifiedYes
ENERGY STAR Version8.0
EPEAT CompliantEPEAT Gold
TCO CertifiedTCO Certified Desktops 9
