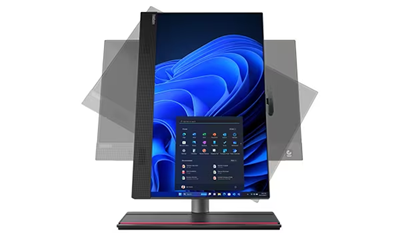

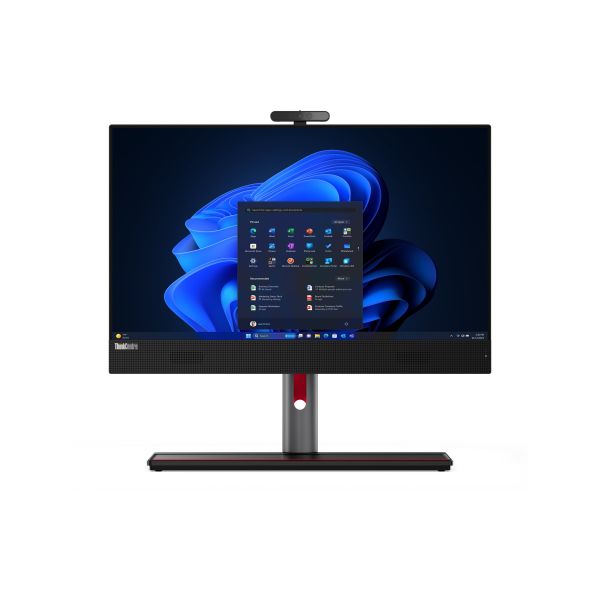

Lenovo ThinkCentre M90a Gen 5 12SH

Be the first to review this product

Availability: Out of stock

SKU

12SH001NUS

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The Lenovo ThinkCentre M90a Gen 5 combines performance, security, and multimedia capabilities into one sleek package. At its heart lies a quad-core Intel Core i3-14100 processor, complemented by 8 GB of DDR5 RAM, making multitasking seamless and efficient. Storage needs are amply met with a 256 GB NVMe SSD, ensuring fast boot times and quick access to your most important files. Visuals are rendered in stunning clarity on a 23.8-inch Full HD IPS display, featuring a 99% sRGB color gamut and Eyesafe technology to reduce eye strain. The inclusion of Dolby Atmos and high-definition audio standards transforms this computer into a multimedia powerhouse, perfect for both work and play. Connectivity is never an issue, with a comprehensive array of ports including USB 3.2 and USB-C, HDMI, and DisplayPort 1.4. Security is paramount, with features like the ThinkShutter camera privacy feature, Windows Hello, and a hybrid IR camera, backed by a discrete TPM 2.0 chip, ensuring your data remains safe. With its UltraFlex V Stand, the Lenovo ThinkCentre M90a Gen 5 offers both form and function, making it an ideal choice for professionals seeking a powerful, secure, and versatile computing solution.

Lenovo ThinkCentre M90a Gen 5 (24″ Intel) All-In-One: Saves space, maximizes power | Stylish and elegant all-in-one PC with a 23.8-inch screen for business | Powered by a powerful processor | Stunning high-resolution display with rich, true-to-life colors | Certified energy efficient, convenient docking station for your phone and keyboard

Specifications

General Information
Category	Desktop computers
Description	Lenovo ThinkCentre M90a Gen 5 12SH - All-in-one with UltraFlex V Stand - Core i3 i3-14100 / up to 4.7 GHz - RAM 8 GB - SSD 256 GB - TCG Opal Encryption 2, NVMe - DVD-Writer - UHD Graphics 730 - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 - Win 11 Pro - monitor: LED 23.8" 1920 x 1080 (Full HD) @ 60 Hz - keyboard: English - black - Lenovo TopSeller
Manufacturer	Lenovo
MSRP	$1,559.00
UNSPSC	43211507
Main Specifications
Chassis / Form Factor	All-in-one
Dimensions & Weight / Depth	25.26 cm
Dimensions & Weight / Height	47.2 cm
Dimensions & Weight / Weight	7.83 kg
Dimensions & Weight / Width	53.96 cm
Display / Diagonal Size	23.8 in
Display / Diagonal Size (metric)	60.5 cm
Display / Native Resolution	1920 x 1080
Display / Type	LED
Display / Widescreen Display	Yes
Hard Drive / Capacity	256 GB
Hard Drive / Interface	PCI Express 4.0 x4
Hard Drive / Interface Type	PCI Express 4.0 x4
Header / Brand	Lenovo
Header / Country Kits	United States
Header / Localization	English
Mainboard / Chipset Type	Intel Q670
Miscellaneous / Product Color	Black
Networking / Data Link Protocol	Bluetooth 5.3 Ethernet Fast Ethernet Gigabit Ethernet IEEE 802.11a IEEE 802.11ac IEEE 802.11ax (Wi-Fi 6E) IEEE 802.11b IEEE 802.11g IEEE 802.11n
Networking / Wireless LAN Supported	Yes
Networking / Wireless Protocol	802.11a/b/g/n/ac/ax (Wi-Fi 6E) Bluetooth 5.3
Optical Storage / Drive Type	DVD-Writer
Optical Storage / Type	DVD±RW
OS Provided / Type	Windows 11 Pro
Packaged Quantity	1
Processor / Clock Speed	3.5 GHz
Processor / Generation	14
Processor / Manufacturer	Intel
Processor / Number of Cores	Quad-Core
Processor / Processor Number	I3-14100
Processor / Type	Core i3
RAM / Data Integrity Check	Non-ECC
RAM / Form Factor	SO-DIMM 262-pin
RAM / Memory Speed	4800 MHz
RAM / Technology	DDR5 SDRAM
Service & Support / Type	3-year warranty
System / Hard Drive Capacity	256 GB
System / Type	Personal computer
Video Output / Graphics Processor	Intel UHD Graphics 730
Audio Input
Type	Dual array microphone
Audio Output
Compliant Standards	High Definition Audio, Dolby Atmos
Speakers Included	2 x right / left channel
Cache Memory
Cache Per Processor	12 MB
Installed Size	12 MB
Camera
Camera	Yes
Features	Windows Hello, ThinkShutter camera privacy, hybrid IR camera
Resolution (MP)	5 Megapixel
Dimensions & Weight
Depth	25.26 cm
Dimensions & Weight Details	53.96 cm - 25.26 cm - 47.2 cm - 7.83 kg - with stand (highest position in vertical mode) 53.96 cm - 34.419 cm - 22.754 cm - 7.83 kg - with stand (lowest position in flat mode) 53.96 cm - 4.96 cm - 37.1 cm - 5.53 kg - without stand
Height	47.2 cm
Weight	7.83 kg
Width	53.96 cm
Dimensions & Weight (JTFpping)
JTFpping Depth	54.5 cm
JTFpping Height	23.8 cm
JTFpping Width	69 cm
Environmental Parameters
Humidity Range Operating	20 - 80%
Max Operating Temperature	35 °C
Min Operating Temperature	5 °C
Expansion / Connectivity
Bays	1 (total) / 0 (free) x external 5.25" Slim Line
Interfaces	3 x USB 3.2 Gen 1 (3 rear) 1 x USB-C 3.2 Gen 2 (1 rear) (data transfer, 15W charging) 1 x HDMI (1 rear) 1 x DisplayPort 1.4 (1 rear) 1 x LAN (1 rear) 3 x USB 3.2 Gen 2 (3 side) 1 x headphones/microphone (1 side)
Slots	1 (total) / 0 (free) x M.2 Card (for WLAN) 2 (total) / 1 (free) x M.2 Card (for SSD)
General
Built-in Devices	Stereo speakers
Color	Black
Embedded Security	Discrete Trusted Platform Module (TPM 2.0) Security Chip
Localization	Language: English / region: United States
Product Form Factor	All-in-one - with UltraFlex V Stand
Type	Personal computer
Graphics Controller
Graphics Processor	Intel UHD Graphics 730 shared video memory (UMA)
Max Monitors Supported	2
Video Interfaces	HDMI, DisplayPort
Hard Drive
Capacity	1 x 256 GB
Features	TCG Opal Encryption 2, NVM Express (NVMe)
Interface Type	PCI Express 4.0 x4
Type	SSD - M.2 2280
Input Device
Type	Mouse, keyboard
Keyboard
Interface	USB
Keyboard Name	Lenovo Calliope Keyboard
Localization & Layout	English
Manufacturer Warranty
Service & Support	Limited warranty - 3 years - on-site
Miscellaneous
Compliant Standards	RoHS, FIPS 140-2, GREENGUARD, Energy-Related Products (ErP) Lot 3, TUV Rheinland Flicker Free Certification, TCG Certified, TUV Rheinland Low Blue Light (Hardware Solution), UL Anti-dust, Eyesafe Certified 2.0
Manufacturer Selling Program	Lenovo TopSeller
Security Slot Type	Kensington security slot
Theft/Intrusion Protection	Security lock slot (cable lock sold separately)
VESA Mounting Interface	100 x 100 mm
Monitor
Color Gamut	99% sRGB
Diagonal Size	23.8"
Horizontal Viewing Angle	+89 / -89
Image Aspect Ratio	16:9
Image Brightness	250 cd/m²
Image Contrast Ratio	1000:1
Monitor Features	Anti-glare, Flicker Free technology, borderless, Low Blue Light technology, Eyesafe technology, tilt stand (-5°- 70°)
Monitor Type	LED - IPS
Native Resolution	1920 x 1080 (Full HD)
Response Time	14 ms
V-Sync Rate at Max Res.	60 Hz
Vertical Viewing Angle	+89 / -89
Widescreen Display	Yes
Mouse
Interface	USB
Mouse Name	Lenovo Calliope Mouse
Networking
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3
Ethernet Controller	Intel I219-LM
Features	Wake on LAN (WoL), dual stream (2x2)
Interface (Bus) Type	M.2 Card
Wireless LAN Supported	Yes
Wireless NIC	Intel Wi-Fi 6E AX 211
Operating System / Software
OS Provided	Windows 11 Pro English
Optical Storage
Type	DVD±RW DVD-Writer - SATA
Power
Device Type	Power adapter
Efficiency	90%
Power Provided	180 watt
Voltage Required	AC 100-240 V (50/60 Hz)
Processor / Chipset
Chipset Type	Intel Q670
Clock Speed	3.5 GHz
CPU	Intel Core i3 (14th Gen) i3-14100
CPU Qty	1
Max CPU Qty	1
Max Turbo Speed	4.7 GHz
Number of Cores	Quad-Core
RAM
Configuration Features	1 x 8 GB
Effective Memory Speed	4800 MT/s
Features	Dual channel memory architecture
Form Factor	SO-DIMM 262-pin
Installed Size	8 GB (installed) / 64 GB (max)
Slots	2 (total) / 1 (empty)
Technology	DDR5 SDRAM - non-ECC
Storage Controller
RAID Level	RAID 0, RAID 1
Type	1 x RAID
Sustainability Information
Carbon Footprint	431 kg carbon emissions
ENERGY STAR Certified	Yes
ENERGY STAR Version	8.0
EPEAT Compliant	EPEAT Gold
PAIA Version	1.3.2
TCO Certified	TCO Certified Edge All-in-One PCs, TCO Certified All-in-One PCs 9
Total CF/unit Standard Deviation (kg CO2e)	108
