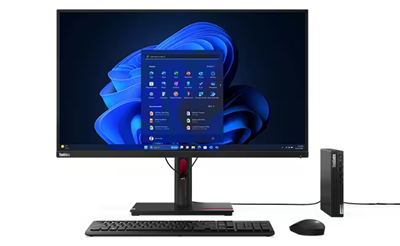

Lenovo ThinkCentre M70q Gen 5 12TD

Be the first to review this product

Availability: Out of stock

SKU

12TD001JUS

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The Lenovo ThinkCentre M70q Gen 5 redefines efficiency and productivity in a compact package. Designed to fit into any workspace with its ultra small form factor, this personal computer does not compromise on performance or security. At its heart, a 14th Generation Intel Core i3 processor and dual-channel DDR5 memory ensure smooth multitasking and quick access to frequently used files and programs. Connectivity is a breeze with a variety of ports including USB 3.2 Gen 2 and USB-C 3.2 Gen 1, alongside Wi-Fi 6E and Bluetooth 5.3, making it easy to connect to a wide range of devices and networks. Not only is it powerful and versatile, but it's also built with sustainability in mind, boasting ENERGY STAR 8.0 and EPEAT Silver certifications. Whether for business or personal use, the Lenovo ThinkCentre M70q Gen 5 is engineered to meet the demands of modern computing while also considering environmental impact.

Lenovo ThinkCentre M70q Gen 5 Tiny (Intel): Big Performance in a Compact PC | High-performance business desktop that fits anywhere, even horizontally | Optimized workloads with high performance | Fast processing with dual-channel memory | Enhanced privacy and enterprise-grade security

Specifications

General Information
Category	Desktop computers
Description	Lenovo ThinkCentre M70q Gen 5 12TD - Tiny Core i3 i3-14100T / up to 4.4 GHz - RAM 8 GB - SSD 256 GB - TCG Opal Encryption, NVMe - UHD Graphics 730 - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 - Win 11 Pro - monitor: none - keyboard: English - raven black - Lenovo TopSeller
Manufacturer	Lenovo
MSRP	$1,029.00
UNSPSC	43211507
Main Specifications
Chassis / Form Factor	Ultra small form factor
Dimensions & Weight / Depth	18.29 cm
Dimensions & Weight / Height	3.65 cm
Dimensions & Weight / Weight	1.25 kg
Dimensions & Weight / Width	17.9 cm
Display / Type	None.
Hard Drive / Capacity	256 GB
Hard Drive / Interface	PCI Express 4.0 x4
Hard Drive / Interface Type	PCI Express 4.0 x4
Header / Brand	Lenovo
Header / Country Kits	United States
Header / Localization	English
Mainboard / Chipset Type	Intel Q670
Miscellaneous / Product Color	Black
Networking / Data Link Protocol	Bluetooth 5.3 Ethernet Fast Ethernet Gigabit Ethernet IEEE 802.11a IEEE 802.11ac IEEE 802.11ax (Wi-Fi 6E) IEEE 802.11b IEEE 802.11g IEEE 802.11n
Networking / Wireless LAN Supported	Yes
Networking / Wireless Protocol	802.11a/b/g/n/ac/ax (Wi-Fi 6E) Bluetooth 5.3
Optical Storage / Drive Type	No optical drive
Optical Storage / Type	None
OS Provided / Type	Windows 11 Pro
Packaged Quantity	1
Processor / Clock Speed	2.7 GHz
Processor / Generation	14
Processor / Manufacturer	Intel
Processor / Number of Cores	Quad-Core
Processor / Processor Number	I3-14100T
Processor / Type	Core i3
RAM / Form Factor	SO-DIMM 262-pin
RAM / Memory Speed	4800 MHz
RAM / Technology	DDR5 SDRAM
Service & Support / Type	3-year warranty
System / Hard Drive Capacity	256 GB
System / Type	Personal computer
Video Output / Graphics Processor	Intel UHD Graphics 730
Audio Output
Compliant Standards	High Definition Audio
Cache Memory
Cache Per Processor	12 MB
Installed Size	12 MB
Dimensions & Weight
Depth	18.29 cm
Height	3.65 cm
Weight	1.25 kg
Width	17.9 cm
Dimensions & Weight (JTFpping)
JTFpping Depth	25 cm
JTFpping Height	12.8 cm
JTFpping Weight	2.848 kg
JTFpping Width	49 cm
Environmental Parameters
Humidity Range Operating	20 - 80%
Max Operating Temperature	35 °C
Min Operating Temperature	5 °C
Expansion / Connectivity
Interfaces	3 x USB 3.2 Gen 2 (1 front, 3 rear) 1 x USB 3.2 Gen 2 (1 in front) (Always On, fast-charging (5V, 2.1A)) 1 x USB-C 3.2 Gen 1 (1 in front) (data transfer, 5V 0.9A charging) 1 x headphones/microphone (1 in front) 1 x USB 2.0 (1 rear) 1 x USB 3.2 Gen 1 (1 rear) 1 x DisplayPort 1.4a 1 x HDMI 1 x LAN (Gigabit Ethernet) (1 rear) 1 x DisplayPort 1.4
Slots	1 (total) / 0 (free) x M.2 Card (for WLAN) 2 (total) / 1 (free) x M.2 Card (for SSD)
General
Built-in Devices	Speaker
Color	Raven black
Embedded Security	Discrete Trusted Platform Module (TPM 2.0) Security Chip
Localization	Language: English / region: United States
Product Form Factor	Tiny
Type	Personal computer
Graphics Controller
Graphics Processor	Intel UHD Graphics 730 shared video memory (UMA)
Max Monitors Supported	3
Video Interfaces	HDMI, DisplayPort
Hard Drive
Capacity	1 x 256 GB
Features	TCG Opal Encryption, NVM Express (NVMe)
Interface Type	PCI Express 4.0 x4
Type	SSD - M.2 2280
Input Device
Type	Mouse, keyboard
Keyboard
Interface	USB
Keyboard Name	Lenovo Traditional Keyboard
Localization & Layout	English
Manufacturer Warranty
Service & Support	Limited warranty - 3 years - on-site
Miscellaneous
Compliant Standards	RoHS, Energy-Related Products (ErP) Lot 3, TCG Certified, Energy-Related Products (ErP) Lot 7
Included Accessories	Vertical stand
Manufacturer Selling Program	Lenovo TopSeller
Security Slot Type	Kensington security slot
Theft/Intrusion Protection	Security lock slot (cable lock sold separately), chassis intrusion switch
Monitor
Monitor Type	None.
Mouse
Interface	USB
Mouse Name	Lenovo Calliope Mouse
Networking
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3
Ethernet Controller	Intel I219-LM
Features	Wake on LAN (WoL), dual stream (2x2)
Interface (Bus) Type	M.2 Card
Wireless LAN Supported	Yes
Wireless NIC	Intel Wi-Fi 6E AX 211
Operating System / Software
OS Provided	Windows 11 Pro English
Optical Storage
Type	No optical drive
Power
Device Type	Power adapter
Efficiency	89%
Power Provided	65 watt
Voltage Required	AC 100-240 V (50/60 Hz)
Processor / Chipset
Chipset Type	Intel Q670
Clock Speed	2.7 GHz
CPU	Intel Core i3 (14th Gen) i3-14100T
CPU Qty	1
Max CPU Qty	1
Max Turbo Speed	4.4 GHz
Number of Cores	Quad-Core
RAM
Configuration Features	1 x 8 GB
Effective Memory Speed	4800 MT/s
Features	Dual channel memory architecture
Form Factor	SO-DIMM 262-pin
Installed Size	8 GB (installed) / 64 GB (max)
Slots	2 (total) / 1 (empty)
Technology	DDR5 SDRAM
Sustainability Information
Carbon Footprint	253 kg carbon emissions
ENERGY STAR Certified	Yes
ENERGY STAR Version	8.0
EPEAT Compliant	EPEAT Silver
PAIA Version	1.4.0
TCO Certified	TCO Certified Desktops 9
Total CF/unit Standard Deviation (kg CO2e)	50
