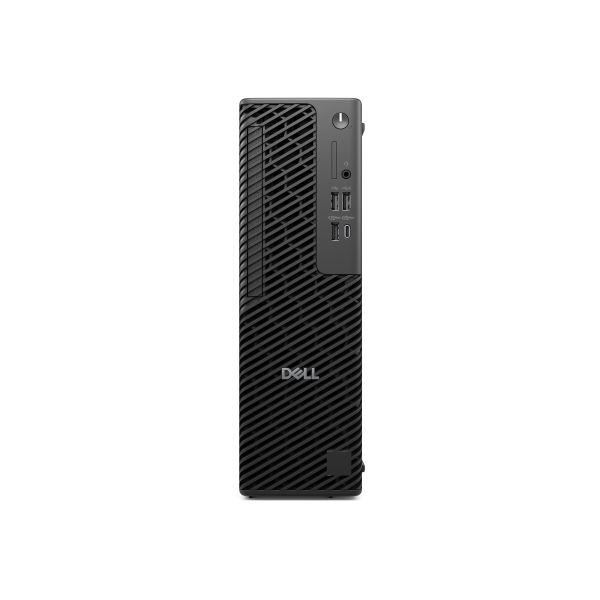

Dell Pro Max Slim FCS1250
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | Dell Pro Max Slim FCS1250 - AI PC - slim desktop Core Ultra 9 285 / up to 5.6 GHz - vPro - RAM 32 GB - SSD 1 TB - SED, NVMe, TLC, Class 40 - NVIDIA RTX 2000 Ada - Gigabit Ethernet, Bluetooth, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7) - Win 11 Pro - monitor: none - keyboard: US English - black (keyboard), black (mouse) - BTS - with 3 Years Basic Onsite Service after Remote Diagnosis with Hardware-Only Support |
| Manufacturer | Dell |
| MSRP | $5,943.32 |
| UNSPSC | 43211507 |
| Main Specifications | |
| Chassis / Form Factor | Small form factor |
| Dimensions & Weight / Depth | 29.3 cm |
| Dimensions & Weight / Height | 30.35 cm |
| Dimensions & Weight / Weight | 3.97 kg |
| Dimensions & Weight / Width | 9.5 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 1 TB |
| Hard Drive / Interface | PCI Express 4.0 x4 |
| Hard Drive / Interface Type | PCI Express 4.0 x4 |
| Header / Brand | Dell |
| Mainboard / Chipset Type | Intel W880 |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Networking / Wireless LAN Supported | Yes |
| Networking / Wireless Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | Windows 11 Pro |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 2.5 GHz |
| Processor / Generation | Series 2 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 24-core |
| Processor / Processor Number | 285 |
| Processor / Type | Core Ultra 9 |
| RAM / Data Integrity Check | Non-ECC |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Memory Speed | 2800 MHz |
| RAM / Technology | DDR5 SDRAM |
| System / Hard Drive Capacity | 1 TB |
| System / Platform Technology | Intel vPro Platform |
| System / Type | Personal computer |
| Video Memory / Technology | GDDR6 SDRAM |
| Video Output / Graphics Processor | NVIDIA RTX 2000 Ada |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Cache Memory | |
| Cache Per Processor | 36 MB |
| Installed Size | 36 MB |
| Dimensions & Weight | |
| Depth | 29.3 cm |
| Height | 30.35 cm |
| Weight | 3.97 kg |
| Width | 9.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Bays |
|
| Interfaces |
|
| Slots |
|
| General | |
| AI Level | AI PC |
| Bundled Services | 3 Years Basic Onsite Service after Remote Diagnosis with Hardware-Only Support |
| Color | Black (keyboard), black (mouse) |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Platform Technology | Intel vPro Platform |
| Product Form Factor | Slim desktop |
| Type | Personal computer |
| Graphics Controller | |
| Graphics Processor | NVIDIA RTX 2000 Ada - up to 8 TOPS |
| Video Interfaces | DisplayPort |
| Video Memory | 16 GB GDDR6 SDRAM |
| Hard Drive | |
| Capacity | 1 x 1 TB |
| Features | Self-Encrypting Drive, NVM Express (NVMe), triple-level cell (TLC), Class 40 |
| Interface Type | PCI Express 4.0 x4 |
| Type | SSD - M.2 2280 |
| Input Device | |
| Type | Mouse (on selected markets only), keyboard (on selected markets only) |
| Keyboard | |
| Keyboard Name | Dell Pro KM555 Compact Silent Keyboard and Mouse |
| Localization & Layout | US English |
| Miscellaneous | |
| Pricing Type | Build To Stock (BTS) |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop, chassis intrusion switch |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7) |
| Ethernet Controller | Intel I219-LM |
| Features | MU-MIMO Support, dual stream (2x2) |
| Interface (Bus) Type | M.2 2230 |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel WI-FI 7 BE200 |
| Neural Processor Unit (NPU) | |
| AI Datatype Support on NPU | INT8 |
| AI Software Frameworks Supported by NPU | DirectML, OpenVINO, WebNN, WindowsML, ONNX RT |
| Neural Processor Unit (NPU) | Intel AI Boost |
| NPU Performance Up To (TOPS) | 13 TOPS |
| Sparsity Support | Yes |
| Total Processor Performance Up To (TOPS) | 36 TOPS |
| Windows Studio Effects Support | Yes |
| Operating System / Software | |
| OS Provided | Windows 11 Pro |
| Software | Intel Rapid Storage Technology, Activate your Microsoft 365 for a 30 day trial, CrowdStrike Endpoint Protection Pro Essential (1 year) |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| 80 PLUS Certification | 80 PLUS Platinum |
| Device Type | Power supply |
| Power Provided | 360 watt |
| Voltage Required | AC 90-264 V (50/60 Hz) |
| Processor / Chipset | |
| Chipset Type | Intel W880 |
| Clock Speed | 2.5 GHz (P-core) / 1.9 GHz (E-core) |
| CPU | Intel Core Ultra 9 (Series 2) 285 |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Max Turbo Speed | 5.6 GHz (P-core) / 4.6 GHz (E-core) |
| Number of Cores | 24-core |
| Processor Main Features | 24 Threads |
| RAM | |
| Configuration Features | 1 x 32 GB |
| Effective Memory Speed | 2800 MHz |
| Form Factor | DIMM 288-pin |
| Installed Size | 32 GB (installed) / 128 GB (max) |
| Rated Memory Speed | 2800 MHz |
| Slots | 4 (total) / 3 (empty) |
| Technology | DDR5 SDRAM - non-ECC |
| Sustainability Information | |
| Carbon Footprint | 202 kg carbon emissions |
| ENERGY STAR Certified | Yes |
| EOL (kg CO2e) | 3.64 |
| EPEAT Compliant | EPEAT Gold |
| Logistics (kg CO2e) | 10.1 |
| Manufacturing (kg CO2e) | 95.75 |
| PAIA Version | GaBi version 1, 2024 |
| Total Carbon w/o Use Phase (kg CO2e) | 109.282 |
| Use (kg CO2e) | 92.72 |
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
secure transaction
Quick Details
- AI PC
- slim desktop Core Ultra 9 285 / up to 5.6 GHz
- vPro
- RAM 32 GB
- SSD 1 TB
