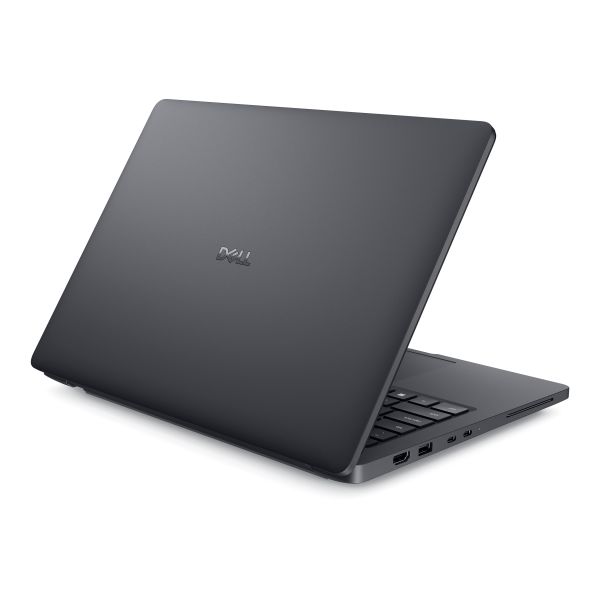

Dell Pro Max 14 MC14255
| General Information | |
|---|---|
| Category | Notebook computers |
| Description | Dell Pro Max 14 MC14255 - Copilot+ PC - AMD Ryzen AI 5 PRO - 340 / up to 4.8 GHz - Win 11 Pro - Radeon 840M - 16 GB RAM - 256 GB SSD NVMe, Class 35 - 14" 1920 x 1200 (Full HD Plus) - Gigabit Ethernet - Wi-Fi 7 - magnetite - BTS - with 3 Years Basic Onsite Service after Remote Diagnosis with Hardware-Only Support |
| Manufacturer | Dell |
| UNSPSC | 43211503 |
| Main Specifications | |
| Audio Input / Type | Dual array microphone |
| Dimensions & Weight / Depth | 22.73 cm |
| Dimensions & Weight / Height | 1.89 cm |
| Dimensions & Weight / Weight | 1.79 kg |
| Dimensions & Weight / Width | 31.3 cm |
| Display / Diagonal Size | 14 in |
| Display / Diagonal Size (metric) | 35.565 cm |
| Display / Native Resolution | 1920 x 1200 |
| Display / Type | LED |
| Display / Widescreen Display | Yes |
| Hard Drive / Capacity | 256 GB |
| Header / Brand | Dell |
| Input Device / Type |
|
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Networking / Wireless Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | Windows 11 Pro |
| Packaged Quantity | 1 |
| Processor / Manufacturer | AMD |
| Processor / Number of Cores | 6-core |
| Processor / Processor Number | 340 |
| Processor / Type | Ryzen AI 5 PRO |
| RAM / Form Factor | LPCAMM2 |
| RAM / Technology | LPDDR5X SDRAM |
| System / Hard Drive Capacity | 256 GB |
| System / Notebook Type | Notebook |
| Video Output / Graphics Processor | AMD Radeon 840M |
| AC Adapter | |
| Input | AC 100-240 V (50/60 Hz) |
| Output | 65 Watt, 5 / 9 / 15 / 20 V, 3.25 A |
| Audio & Video | |
| Camera | Yes - Full HD |
| Camera Features | HDR (High Dynamic Range), RGB camera, Temporal Noise Reduction, 80.2 degrees, camera shutter |
| Codec | Realtek ALC3329 |
| Frame Rate | 30 frames per second |
| Graphics Processor | AMD Radeon 840M |
| Image Sensor Type | CMOS |
| Resolution | 2.07 Megapixel |
| Sound | Stereo speakers, dual array microphone |
| Video Resolutions | 1920 x 1080 |
| Battery | |
| Capacity | 72 Wh |
| Technology | 4-cell lithium polymer |
| Weight | 270 g |
| Communications | |
| Ethernet Controller | Realtek RTL8111H-CG |
| Network Interface | Gigabit Ethernet |
| Wireless | Bluetooth, 802.11a/b/g/n/ac/ax/be |
| Wireless Controller | MediaTek MT7925 - M.2 2230 |
| Connections & Expansion | |
| Interfaces Details |
|
| Dimensions & Weight | |
| Dimensions (WxDxH) | 31.3 cm x 22.73 cm x 1.89 cm |
| Weight | 1.79 kg |
| Display | |
| Color Gamut | 45% NTSC |
| Features | Anti-glare, Wide Viewing Angle, 35 ms response rate, 0.157 mm pixel pitch |
| Horizontal Viewing Angle | +85 / -85 |
| Image Brightness | 300 cd/m² |
| Pixel Density (ppi) | 162 |
| Resolution | 1920 x 1200 (Full HD Plus) |
| Type | 14" |
| V-Sync Rate at Max Res. | 60 Hz |
| Vertical Viewing Angle | +85 / -85 |
| Widescreen | Yes |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 0 °C |
| Shock Tolerance (non-operating) | 160 g @ 2 ms half-sine pulse |
| Shock Tolerance (operating) | 110 g @ 2 ms half-sine pulse |
| Vibration Tolerance (non-operating) | 1.3 g @ RMS (random) |
| Vibration Tolerance (operating) | 0.66 g @ RMS (random) |
| General | |
| AI Level | Copilot+ PC |
| Operating System | Windows 11 Pro |
| Product Type | Notebook |
| Input | |
| Features | Copilot key |
| Keyboard Backlight | Yes |
| Type | Keyboard, touchpad |
| Manufacturer Warranty | |
| Bundled Services | 3 Years Basic Onsite Service after Remote Diagnosis with Hardware-Only Support |
| Memory | |
| RAM | 16 GB (provided memory is soldered) |
| Rated Speed | 8000 MT/s |
| Speed | 8000 MT/s |
| Technology | LPDDR5X SDRAM - non-ECC |
| Miscellaneous | |
| Color | Magnetite |
| Compliant Standards | FIPS 140-2, TCG Certified |
| Features | ExpressCharge, dual channel, ExpressChargeBoost, palm rest |
| Included Accessories | USB-C power adapter |
| Integrated Options | Accelerometer, hall sensor |
| Manufacturer Selling Program | Dell Smart Selection |
| Pricing Type | Build To Stock (BTS) |
| Security | Discrete Trusted Platform Module (TPM 2.0) Security Chip |
| Security Slot Type | Wedge-shaped security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Neural Processor Unit (NPU) | |
| Neural Processor Unit (NPU) | AMD Ryzen AI |
| NPU Performance Up To (TOPS) | 50 TOPS |
| Total Processor Performance Up To (TOPS) | 59 TOPS |
| Processor / Chipset | |
| Cache | L3 - 16 MB |
| CPU | AMD Ryzen AI 5 PRO 340 |
| Features | 12 Threads |
| Max Turbo Speed | 4.8 GHz |
| Number of Cores | 6-core |
| Software | |
| Software Included | Activate your Microsoft 365 for a 30 day trial |
| Storage | |
| Main Storage | 256 GB SSD M.2 2230 PCIe 4.0 x4 - NVM Express (NVMe), Class 35 |
| Sustainability Information | |
| Carbon Footprint | 105 kg carbon emissions |
| ENERGY STAR Certified | Yes |
| EOL (kg CO2e) | 0.42 |
| EPEAT Climate+ | Yes |
| EPEAT Compliant | EPEAT Gold |
| Logistics (kg CO2e) | 3.36 |
| Manufacturing (kg CO2e) | 79.695 |
| PAIA Version | GaBi version 1, 2025 |
| Total Carbon w/o Use Phase (kg CO2e) | 83.475 |
| Use (kg CO2e) | 21.525 |
