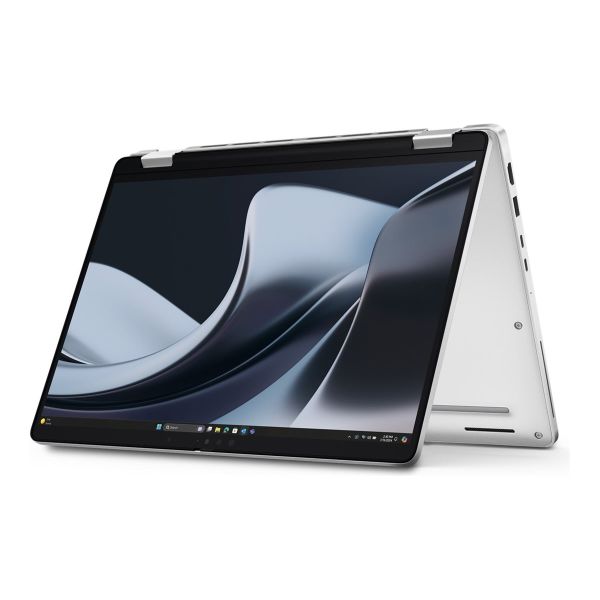

Dell Pro 14 Plus PB14255
| General Information | |
|---|---|
| Category | Notebook computers |
| Description | Dell Pro 14 Plus PB14255 - AI PC - AMD Ryzen 5 Pro - 230 / up to 4.9 GHz - Win 11 Pro - Radeon 760M - 16 GB RAM - 512 GB SSD NVMe - 14" IPS touchscreen 1920 x 1200 (Full HD Plus) - Gigabit Ethernet - Wi-Fi 7 - platinum silver - BTS - with 1 Year Basic Onsite Service after remote diagnosis with Hardware-Only Support - Disti SnS |
| Manufacturer | Dell |
| MSRP | $2,352.43 |
| UNSPSC | 43211503 |
| Main Specifications | |
| Audio Input / Type | 2 array microphones |
| Dimensions & Weight / Depth | 22.4 cm |
| Dimensions & Weight / Height | 2.12 cm |
| Dimensions & Weight / Weight | 1.56 kg |
| Dimensions & Weight / Width | 31.35 cm |
| Display / Diagonal Size | 14 in |
| Display / Diagonal Size (metric) | 35.56 cm |
| Display / Native Resolution | 1920 x 1200 |
| Display / Type | LED |
| Display / Widescreen Display | Yes |
| Hard Drive / Capacity | 512 GB |
| Header / Brand | Dell |
| Input Device / Type |
|
| Miscellaneous / Product Color | Silver |
| Networking / Data Link Protocol |
|
| Networking / Wireless Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | Windows 11 Pro |
| Packaged Quantity | 1 |
| Processor / Manufacturer | AMD |
| Processor / Number of Cores | 6-core |
| Processor / Processor Number | 230 |
| Processor / Type | Ryzen 5 Pro |
| RAM / Technology | LPDDR5X SDRAM |
| System / Hard Drive Capacity | 512 GB |
| System / Notebook Type | Notebook |
| Video Output / Graphics Processor | AMD Radeon 760M |
| AC Adapter | |
| Input | AC 100-240 V (50/60 Hz) |
| Output | 65 watt, 5/9/15/20 V, 3 A |
| Audio & Video | |
| Camera | Yes - 1920 x 1080 (standard), 640 x 360 (infrared) |
| Camera Features | Face recognition, IR camera, RGB camera, Temporal Noise Reduction, 86.6 degrees (IR camera), 80.2 degrees, camera shutter |
| Codec | Realtek ALC3329 |
| Frame Rate | 30 frames per second |
| Graphics Processor | AMD Radeon 760M |
| Image Sensor Type | CMOS |
| Resolution | 2.07 Megapixel (standard), 0.23 Megapixel (infrared) |
| Sound | Stereo speakers, 2 array microphones |
| Video Resolutions | 1920 x 1080 |
| Battery | |
| Capacity | 55 Wh |
| Technology | 3-cell |
| Weight | 220 g |
| Communications | |
| Ethernet Controller | Realtek RTL8111EPP |
| Features | Dual stream (2x2), 4G capable |
| Network Interface | Gigabit Ethernet |
| Wireless | Bluetooth, 802.11a/b/g/n/ac/ax/be |
| Wireless Controller | MediaTek Wi-Fi 7 MT7925 |
| Connections & Expansion | |
| Interfaces Details |
|
| Dimensions & Weight | |
| Dimensions (WxDxH) | 31.35 cm x 22.4 cm x 2.12 cm |
| Weight | 1.56 kg |
| Display | |
| Color Gamut | 100% sRGB |
| Features | Anti-glare, Wide Viewing Angle, 35 ms response rate, 0.157 mm pixel pitch |
| Horizontal Viewing Angle | +80 / -80 |
| Image Aspect Ratio | 16:10 |
| Image Brightness | 300 cd/m² |
| Pixel Density (ppi) | 162 |
| Resolution | 1920 x 1200 (Full HD Plus) |
| Touchscreen | Yes |
| Type | 14" - IPS |
| V-Sync Rate at Max Res. | 60 Hz |
| Vertical Viewing Angle | +80 / -80 |
| Widescreen | Yes |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 0 °C |
| Shock Tolerance (non-operating) | 160 g @ 2 ms half-sine pulse |
| Shock Tolerance (operating) | 110 g @ 2 ms half-sine pulse |
| Vibration Tolerance (non-operating) | 1.3 g @ RMS (random) |
| Vibration Tolerance (operating) | 0.66 g @ RMS (random) |
| General | |
| AI Level | AI PC |
| Operating System | Windows 11 Pro |
| Product Type | Notebook |
| Input | |
| Features | Copilot key |
| Keyboard Backlight | Yes |
| Type | Keyboard, touchpad |
| Manufacturer Warranty | |
| Bundled Services | 1 Year Basic Onsite Service after remote diagnosis with Hardware-Only Support - Disti SnS |
| Memory | |
| RAM | 16 GB (provided memory is soldered) |
| Rated Speed | 7500 MT/s |
| Speed | 7500 MT/s |
| Technology | LPDDR5X SDRAM |
| Miscellaneous | |
| Case Material | Aluminum |
| Color | Platinum silver |
| Compliant Standards | FIPS 140-2, TCG Certified |
| Features | ExpressCharge, ExpressChargeBoost |
| Included Accessories | USB-C power adapter, POD Label |
| Manufacturer Selling Program | Dell Smart Selection |
| Pricing Type | Build To Stock (BTS) |
| Security | Discrete Trusted Platform Module (TPM 2.0) Security Chip |
| Security Slot Type | Noble Wedge security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Neural Processor Unit (NPU) | |
| Neural Processor Unit (NPU) | AMD Ryzen AI |
| NPU Performance Up To (TOPS) | 16 TOPS |
| Total Processor Performance Up To (TOPS) | 31 TOPS |
| Processor / Chipset | |
| Cache | L3 - 16 MB |
| CPU | AMD Ryzen 5 Pro 230 / 3.5 GHz |
| Features | 12 Threads |
| Max Turbo Speed | 4.9 GHz |
| Number of Cores | 6-core |
| Software | |
| Software Included | Dell Additional Softwares, Activate your Microsoft 365 for a 30 day trial |
| Storage | |
| Main Storage | 512 GB SSD M.2 PCIe 4.0 - NVM Express (NVMe) |
| Sustainability Information | |
| Carbon Footprint | 113 kg carbon emissions |
| ENERGY STAR Certified | Yes |
| EOL (kg CO2e) | 2.034 |
| EPEAT Climate+ | Yes |
| EPEAT Compliant | EPEAT Gold |
| Logistics (kg CO2e) | 4.52 |
| Manufacturing (kg CO2e) | 85.767 |
| PAIA Version | GaBi version 1, 2024 |
| Total Carbon w/o Use Phase (kg CO2e) | 92.321 |
| Use (kg CO2e) | 20.679 |
