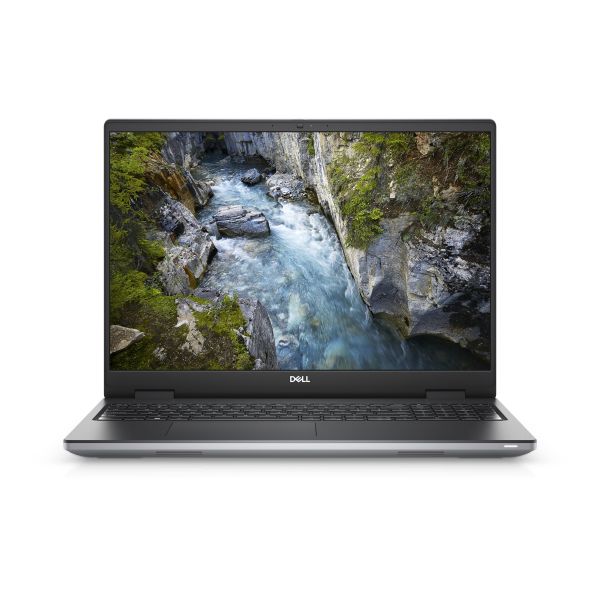

Dell Precision 7680 - AI Workstation

Be the first to review this product

Availability: Out of stock

SKU

62D05

UPC Code

884116670513

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

Dell's ultra scalable 16" mobile workstation is optimized to your configurations.

Specifications

General Information
Category	Notebook computers
Description	Dell Precision 7680 - AI Workstation - Intel Core i7 - 13850HX / up to 5.3 GHz - vPro Enterprise - Win 11 Pro - NVIDIA RTX 2000 Ada - 32 GB RAM - 1 TB SSD NVMe, Class 40 - 16" 1920 x 1200 (Full HD Plus) - Gigabit Ethernet - Wi-Fi 6E - BTS - with 3 Years Basic Onsite Service after Remote Diagnosis with Hardware-Only Support Disti SnS
Manufacturer	Dell
UNSPSC	43211503
Main Specifications
Audio Input / Type	Dual array microphone
Dimensions & Weight / Depth	25.834 cm
Dimensions & Weight / Height	2.32 cm
Dimensions & Weight / Weight	2.6 kg
Dimensions & Weight / Width	35.6 cm
Display / Diagonal Size	16 in
Display / Diagonal Size (metric)	40.64 cm
Display / Native Resolution	1920 x 1200
Display / Type	LED
Display / Widescreen Display	Yes
Hard Drive / Capacity	1 TB
Header / Brand	Dell
Input Device / Type	Keyboard Touchpad
Mainboard / Chipset Type	Intel WM790
Miscellaneous / Product Color	Gray
Networking / Data Link Protocol	Bluetooth Ethernet Fast Ethernet Gigabit Ethernet IEEE 802.11a IEEE 802.11ac IEEE 802.11ax (Wi-Fi 6E) IEEE 802.11b IEEE 802.11g IEEE 802.11n
Networking / Wireless Protocol	802.11a/b/g/n/ac/ax (Wi-Fi 6E) Bluetooth
Optical Storage / Drive Type	No optical drive
Optical Storage / Type	None
OS Provided / Type	Windows 11 Pro
Packaged Quantity	1
Processor / Generation	13
Processor / Manufacturer	Intel
Processor / Number of Cores	20-core
Processor / Processor Number	I7-13850HX
Processor / Type	Core i7
RAM / Form Factor	CAMM
RAM / Technology	DDR5 SDRAM
System / Hard Drive Capacity	1 TB
System / Notebook Type	Mobile workstation
System / Platform Technology	Intel vPro Enterprise
System / Security Devices	Smart card reader
Video Output / Graphics Processor	NVIDIA RTX 2000 Ada
AC Adapter
Input	AC 100-240 V (50/60 Hz)
Output	180 watt, 19.5 V, 9.23 A
Audio & Video
Camera	Yes - Full HD
Camera Features	Privacy shutter, 74.9 degrees, RGB camera, Temporal Noise Reduction
Codec	Realtek ALC3281
Frame Rate	30 frames per second
Graphics Processor	NVIDIA RTX 2000 Ada
Sound	Stereo speakers, dual array microphone
Video Memory	8 GB GDDR6 SDRAM
Video Resolutions	1920 x 1080
Battery
Capacity	83 Wh
Technology	6-cell lithium ion
Weight	383 g
Communications
Ethernet Controller	Intel I219-LM
Features	Dual stream (2x2)
Network Interface	Gigabit Ethernet
Wireless	Bluetooth, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Wireless Controller	Intel Wi-Fi 6E AX 211
Connections & Expansion
Interfaces Details	HDMI 2 x USB4 (supports Thunderbolt 4, DisplayPort 1.4 Alt Mode) USB-C 3.2 Gen 2 (supports DisplayPort 1.4 Alt Mode) USB 3.2 Gen 1 (PowerShare) USB 3.2 Gen 1 LAN Headphone/microphone combo jack
Memory Card Reader	Yes (SD Card, SDHC Card, SDXC Card)
Slots	3 x M.2 Card (2 available)
Dimensions & Weight
Dimensions (WxDxH)	35.6 cm x 25.834 cm x 2.32 cm
Weight	2.6 kg
Display
Color Gamut	45% NTSC
Features	Anti-glare, Wide Viewing Angle, 35 ms response rate, 0.18 mm pixel pitch
Horizontal Viewing Angle	+80 / -80
Image Brightness	250 cd/m²
Pixel Density (ppi)	142
Resolution	1920 x 1200 (Full HD Plus)
Type	16"
V-Sync Rate at Max Res.	60 Hz
Vertical Viewing Angle	+80 / -80
Widescreen	Yes
Environmental Parameters
Humidity Range Operating	10 - 90% (non-condensing)
Max Operating Temperature	35 °C
Min Operating Temperature	0 °C
Shock Tolerance (non-operating)	160 g @ 2 ms half-sine pulse
Shock Tolerance (operating)	110 g @ 2 ms half-sine pulse
Vibration Tolerance (non-operating)	1.3 g @ RMS (random)
Vibration Tolerance (operating)	0.66 g @ RMS (random)
General
AI Level	AI Workstation
Operating System	Windows 11 Pro - English / French / Spanish / Portuguese
Product Type	Mobile workstation
Input
Features	Precision touchpad, 99-key
Keyboard Backlight	Yes
Numeric Keypad	Yes
Type	Keyboard, touchpad
Manufacturer Warranty
Bundled Services	3 Years Basic Onsite Service after Remote Diagnosis with Hardware-Only Support Disti SnS
Memory
Form Factor	CAMM
Max RAM Supported	64 GB
RAM	32 GB
Rated Speed	5600 MT/s
Technology	DDR5 SDRAM - non-ECC
Miscellaneous
Features	ExpressCharge
Included Accessories	Power adapter, POD Label
Integrated Options	Accelerometer, ambient light sensor, hall sensor, brightness sensor
Pricing Type	Build To Stock (BTS)
Security	Discrete Trusted Platform Module (TPM 2.0) Security Chip, smart card reader
Security Slot Type	Wedge-shaped security slot
Theft/Intrusion Protection	Security lock slot (cable lock sold separately)
Processor / Chipset
Cache	30 MB
Chipset	Intel WM790
CPU	Intel Core i7 (13th Gen) 13850HX / 2.2 GHz
Efficient Cores	12
Features	28 Threads, 55W CPU
Max Turbo Speed	5.3 GHz
Number of Cores	20-core
Performance Cores	8
Platform Technology	Intel vPro Enterprise
Software
Software Included	Dell Additional Softwares, Activate your Microsoft 365 for a 30 day trial
Storage
Main Storage	1 TB SSD M.2 2280 PCIe 4.0 x4 - NVM Express (NVMe), Class 40
Sustainability Information
Carbon Footprint	471 kg carbon emissions
EOL (kg CO2e)	1.88
EPEAT Compliant	EPEAT Gold
Logistics (kg CO2e)	16.49
Manufacturing (kg CO2e)	386.22
PAIA Version	1.3.2, 2022
Total CF/unit Standard Deviation (kg CO2e)	93
Use (kg CO2e)	66.41
