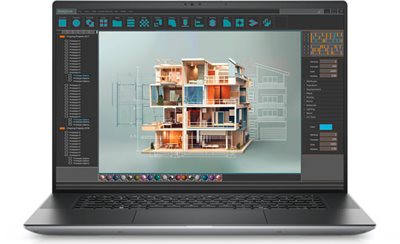

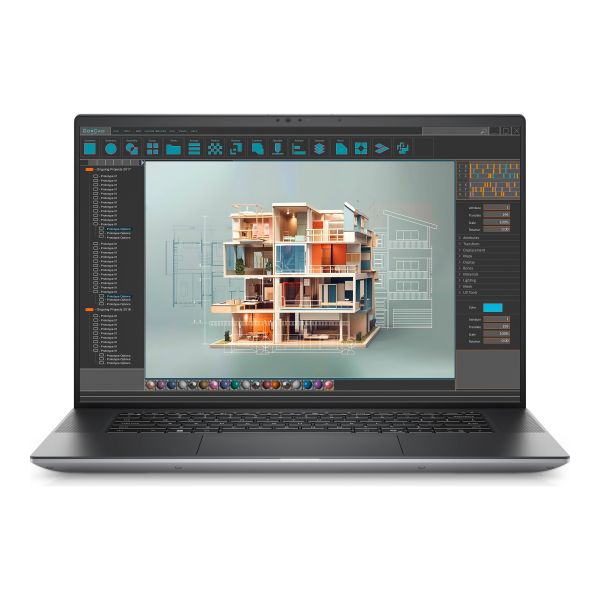

Dell Precision 5690 - Intel Core Ultra 7
| General Information | |
|---|---|
| Category | Notebook computers |
| Description | Dell Precision 5690 - Intel Core Ultra 7 - 165H / up to 5 GHz - vPro Enterprise - Win 11 Pro - NVIDIA RTX 2000 Ada - 32 GB RAM - 1 TB SSD NVMe, Class 40 - 16" IPS 1920 x 1200 (Full HD Plus) - Wi-Fi 7 - anodized titan gray - BTS - with 1 Year Basic Onsite Service after remote diagnosis with Hardware-Only Support - Disti SnS |
| Manufacturer | Dell |
| UNSPSC | 43211503 |
| Main Specifications | |
| Audio Input / Type | Dual array microphone |
| Dimensions & Weight / Depth | 24.033 cm |
| Dimensions & Weight / Height | 2.217 cm |
| Dimensions & Weight / Weight | 2.03 kg |
| Dimensions & Weight / Width | 35.368 cm |
| Display / Diagonal Size | 16 in |
| Display / Diagonal Size (metric) | 40.64 cm |
| Display / Native Resolution | 1920 x 1200 |
| Display / Type | LED |
| Display / Widescreen Display | Yes |
| Hard Drive / Capacity | 1 TB |
| Header / Brand | Dell |
| Input Device / Type |
|
| Miscellaneous / Product Color | Gray |
| Networking / Data Link Protocol |
|
| Networking / Wireless Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | Windows 11 Pro |
| Packaged Quantity | 1 |
| Processor / Generation | Series 1 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 16-core |
| Processor / Processor Number | 165H |
| Processor / Type | Core Ultra 7 |
| RAM / Memory Speed | 7467 MHz |
| RAM / Technology | LPDDR5X SDRAM |
| System / Hard Drive Capacity | 1 TB |
| System / Notebook Type | Mobile workstation |
| System / Platform Technology | Intel vPro Enterprise |
| System / Security Devices | Fingerprint reader |
| Video Output / Graphics Processor | NVIDIA RTX 2000 Ada |
| AC Adapter | |
| Input | AC 100-240 V (50/60 Hz) |
| Output | 165 watt, 5 / 9 / 15 / 20 / 28 V |
| Audio & Video | |
| Audio Features | Output: MaxxAudio 13.0 |
| Camera | Yes - 1920 x 1080 (standard), 640 x 360 (infrared) |
| Camera Features | HDR (High Dynamic Range), IR/RGB camera, Temporal Noise Reduction, 80 degrees, Express Sign-In, Intelligent Privacy, 80.6 degrees (IR camera) |
| Compliant Standards | High Definition Audio |
| Frame Rate | 30 frames per second |
| Graphics Processor | NVIDIA RTX 2000 Ada |
| Image Sensor Type | CMOS |
| Resolution | 2.07 Megapixel (standard), 0.23 Megapixel (infrared) |
| Sound | Two tweeters, two woofers, dual array microphone |
| Video Memory | 8 GB GDDR6 SDRAM |
| Video Resolutions | 1920 x 1080, 640 x 360 |
| Battery | |
| Capacity | 99.5 Wh |
| Technology | 6-cell lithium ion |
| Weight | 363 g |
| Communications | |
| Features | Dual stream (2x2), MU-MIMO |
| Wireless | Bluetooth, 802.11a/b/g/n/ac/ax/be |
| Wireless Controller | Intel WI-FI 7 BE200 |
| Connections & Expansion | |
| Interfaces Details |
|
| Slots | 2 x M.2 Card (1 available) |
| Dimensions & Weight | |
| Dimensions (WxDxH) | 35.368 cm x 24.033 cm x 2.217 cm |
| Weight | 2.03 kg |
| Display | |
| Color Gamut | 100% DCI-P3 |
| Features | Anti-glare, 30 ms response rate, Low Blue Light technology, 0.18 mm pixel pitch |
| Horizontal Viewing Angle | +85 / -85 |
| Image Brightness | 500 cd/m² |
| Pixel Density (ppi) | 142 |
| Resolution | 1920 x 1200 (Full HD Plus) |
| Type | 16" - IPS |
| V-Sync Rate at Max Res. | 60 Hz |
| Vertical Viewing Angle | +85 / -85 |
| Widescreen | Yes |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 0 °C |
| Shock Tolerance (non-operating) | 160 g @ 2 ms half-sine pulse |
| Shock Tolerance (operating) | 110 g @ 2 ms half-sine pulse |
| Vibration Tolerance (non-operating) | 1.3 g @ RMS (random) |
| Vibration Tolerance (operating) | 0.66 g @ RMS (random) |
| General | |
| Operating System | Windows 11 Pro - English / Spanish / French / Portuguese (BR) |
| Product Type | Mobile workstation |
| Input | |
| Features | Haptic touchpad, AI hotkey, spill-resistant |
| Keyboard Backlight | Yes |
| Type | Keyboard, touchpad |
| Manufacturer Warranty | |
| Bundled Services | 1 Year Basic Onsite Service after remote diagnosis with Hardware-Only Support - Disti SnS |
| Memory | |
| RAM | 32 GB (provided memory is soldered) |
| Rated Speed | 7467 MHz |
| Speed | 7467 MHz |
| Technology | LPDDR5X SDRAM |
| Miscellaneous | |
| Case Material | Aluminum, resin |
| Color | Anodized titan gray |
| Compliant Standards | FCC, FIPS 140-2, TCG Certified |
| Features | Chassis intrusion detection |
| Included Accessories | USB-C power adapter |
| Integrated Options | Accelerometer, ambient light sensor, hall sensor, infrared proximity sensor |
| Manufacturer Selling Program | Dell Smart Selection |
| Pricing Type | Build To Stock (BTS) |
| Security | Discrete Trusted Platform Module (TPM 2.0) Security Chip, fingerprint reader |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Neural Processor Unit (NPU) | |
| AI Software Frameworks Supported by NPU | DirectML, OpenVINO, WindowsML, ONNX RT |
| Neural Processor Unit (NPU) | Intel AI Boost |
| Sparsity Support | Yes |
| Windows Studio Effects Support | Yes |
| Processor / Chipset | |
| Cache | 24 MB |
| CPU | Intel Core Ultra 7 (Series 1) 165H / 1.4 GHz |
| Features | 22 Threads |
| Max Turbo Speed | 5 GHz |
| Number of Cores | 16-core |
| Platform Technology | Intel vPro Enterprise |
| Software | |
| Software Included | Intel Rapid Storage Technology, Dell Additional Softwares, Activate your Microsoft 365 for a 30 day trial |
| Storage | |
| Main Storage | 1 TB SSD M.2 2280 PCIe 4.0 x4 - NVM Express (NVMe), Class 40 |
| Sustainability Information | |
| Carbon Footprint | 246 kg carbon emissions |
| ENERGY STAR Certified | Yes |
| EOL (kg CO2e) | 2.46 |
| EPEAT Climate+ | Yes |
| EPEAT Compliant | EPEAT Gold |
| Logistics (kg CO2e) | 6.888 |
| Manufacturing (kg CO2e) | 200.49 |
| PAIA Version | GaBi version 1, 2024 |
| Total Carbon w/o Use Phase (kg CO2e) | 210.08 |
| Use (kg CO2e) | 35.916 |
