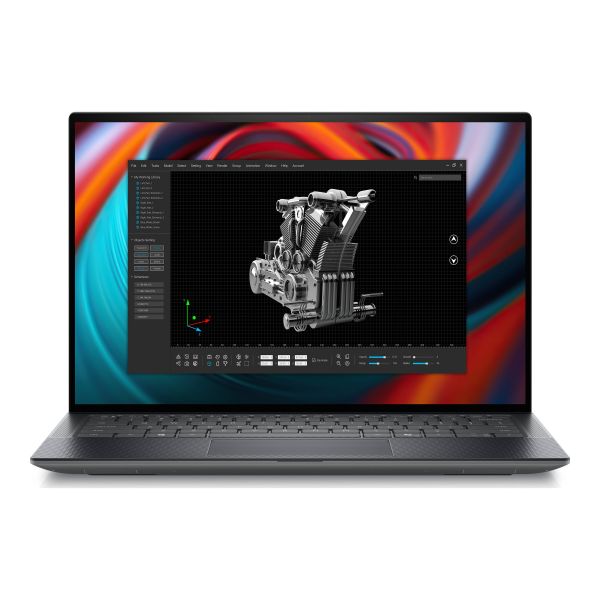

Dell Precision 5490 - Intel Core Ultra 7
| General Information | |
|---|---|
| Category | Notebook computers |
| Description | Dell Precision 5490 - Intel Core Ultra 7 - 165H / up to 5 GHz - Intel Evo vPro Enterprise Platform - Win 11 Pro - NVIDIA RTX 2000 Ada - 32 GB RAM - 1 TB SSD NVMe, Class 40 - 14" 1920 x 1200 (Full HD Plus) - Wi-Fi 7 - anodized titan gray - BTS - with 1 Year Basic Onsite Service after remote diagnosis with Hardware-Only Support - Disti SnS |
| Manufacturer | Dell |
| UNSPSC | 43211503 |
| Main Specifications | |
| Audio Input / Type | Dual array microphone |
| Dimensions & Weight / Depth | 21.035 cm |
| Dimensions & Weight / Height | 1.895 cm |
| Dimensions & Weight / Weight | 1.49 kg |
| Dimensions & Weight / Width | 31.06 cm |
| Display / Diagonal Size | 14 in |
| Display / Diagonal Size (metric) | 35.56 cm |
| Display / Native Resolution | 1920 x 1200 |
| Display / Type | LED |
| Display / Widescreen Display | Yes |
| Hard Drive / Capacity | 1 TB |
| Header / Brand | Dell |
| Input Device / Type |
|
| Miscellaneous / Product Color | Gray |
| Networking / Data Link Protocol |
|
| Networking / Wireless Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | Windows 11 Pro |
| Packaged Quantity | 1 |
| Processor / Generation | Series 1 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 16-core |
| Processor / Processor Number | 165H |
| Processor / Type | Core Ultra 7 |
| RAM / Memory Speed | 7467 MHz |
| RAM / Technology | LPDDR5X SDRAM |
| System / Hard Drive Capacity | 1 TB |
| System / Notebook Type | Mobile workstation |
| System / Platform Technology | Intel Evo vPro Enterprise Platform |
| System / Security Devices | Fingerprint reader |
| Video Output / Graphics Processor | NVIDIA RTX 2000 Ada |
| AC Adapter | |
| Input | AC 100-240 V (50/60 Hz) |
| Output | 130 watt, 5 / 20 V |
| Audio & Video | |
| Camera | Yes - 1280 x 720 (standard), 640 x 400 (infrared) |
| Camera Features | IR/RGB camera, 75.8 degrees, 75.8 degrees (IR camera) |
| Codec | Realtek ALC713 |
| Frame Rate | 30 frames per second |
| Graphics Processor | NVIDIA RTX 2000 Ada |
| Image Sensor Type | CMOS |
| Resolution | 0.92 Megapixel (standard), 0.25 Megapixel (infrared) |
| Sound | Two tweeters, two woofers, dual array microphone |
| Video Memory | 8 GB GDDR6 SDRAM |
| Video Resolutions | 1280 x 720, 640 x 400 |
| Battery | |
| Capacity | 72 Wh |
| Technology | 4-cell |
| Weight | 285 g |
| Communications | |
| Features | Dual stream (2x2), MU-MIMO |
| Wireless | Bluetooth, 802.11a/b/g/n/ac/ax/be |
| Wireless Controller | Intel WI-FI 7 BE200 |
| Connections & Expansion | |
| Interfaces Details |
|
| Memory Card Reader | Yes (microSD, microSDHC, microSDXC) |
| Dimensions & Weight | |
| Dimensions (WxDxH) | 31.06 cm x 21.035 cm x 1.895 cm |
| Weight | 1.49 kg |
| Display | |
| Color Gamut | 100% sRGB |
| Features | Anti-glare, Wide Viewing Angle, 35 ms response rate, Low Blue Light technology, narrow bezel bent, 0.1578 mm pixel pitch |
| Horizontal Viewing Angle | +88 / -88 |
| Image Brightness | 500 cd/m² |
| LCD Backlight Technology | WLED backlight |
| Pixel Density (ppi) | 161 |
| Resolution | 1920 x 1200 (Full HD Plus) |
| Type | 14" |
| V-Sync Rate at Max Res. | 60 Hz |
| Vertical Viewing Angle | +88 / -88 |
| Widescreen | Yes |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 0 °C |
| Shock Tolerance (non-operating) | 160 g @ 2 ms half-sine pulse |
| Shock Tolerance (operating) | 110 g @ 2 ms half-sine pulse |
| Vibration Tolerance (non-operating) | 1.3 g @ RMS (random) |
| Vibration Tolerance (operating) | 0.66 g @ RMS (random) |
| General | |
| Operating System | Windows 11 Pro - English / Spanish / French / Portuguese (BR) |
| Product Type | Mobile workstation |
| Input | |
| Features | AI hotkey |
| Keyboard Backlight | Yes |
| Type | Keyboard, touchpad |
| Manufacturer Warranty | |
| Bundled Services | 1 Year Basic Onsite Service after remote diagnosis with Hardware-Only Support - Disti SnS |
| Memory | |
| RAM | 32 GB (provided memory is soldered) |
| Rated Speed | 7467 MHz |
| Speed | 7467 MHz |
| Technology | LPDDR5X SDRAM |
| Miscellaneous | |
| Color | Anodized titan gray |
| Compliant Standards | FCC, TCG Certified, FIPS 140-3 |
| Features | ExpressCharge, ExpressChargeBoost |
| Included Accessories | USB-C power adapter |
| Integrated Options | Accelerometer, ambient light sensor, hall sensor |
| Manufacturer Selling Program | Dell Smart Selection |
| Pricing Type | Build To Stock (BTS) |
| Security | Discrete Trusted Platform Module (TPM 2.0) Security Chip, fingerprint reader |
| Security Slot Type | Wedge-shaped security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Neural Processor Unit (NPU) | |
| AI Software Frameworks Supported by NPU | DirectML, OpenVINO, WindowsML, ONNX RT |
| Neural Processor Unit (NPU) | Intel AI Boost |
| Sparsity Support | Yes |
| Windows Studio Effects Support | Yes |
| Processor / Chipset | |
| Cache | 24 MB |
| CPU | Intel Core Ultra 7 (Series 1) 165H / 1.4 GHz |
| Features | 22 Threads |
| Max Turbo Speed | 5 GHz |
| Number of Cores | 16-core |
| Platform Technology | Intel Evo vPro Enterprise Platform |
| Software | |
| Software Included | Intel Rapid Storage Technology, Intel Connectivity Performance Suite, Dell Additional Softwares, Activate your Microsoft 365 for a 30 day trial |
| Storage | |
| Main Storage | 1 TB SSD M.2 2280 PCIe 4.0 x4 - NVM Express (NVMe), Class 40 |
| Sustainability Information | |
| Carbon Footprint | 115 kg carbon emissions |
| ENERGY STAR Certified | Yes |
| EOL (kg CO2e) | 1.725 |
| EPEAT Compliant | EPEAT Gold |
| Logistics (kg CO2e) | 5.865 |
| Manufacturing (kg CO2e) | 87.285 |
| PAIA Version | GaBi version 1, 2024 |
| Total Carbon w/o Use Phase (kg CO2e) | 94.76 |
| Use (kg CO2e) | 20.24 |
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$199.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
