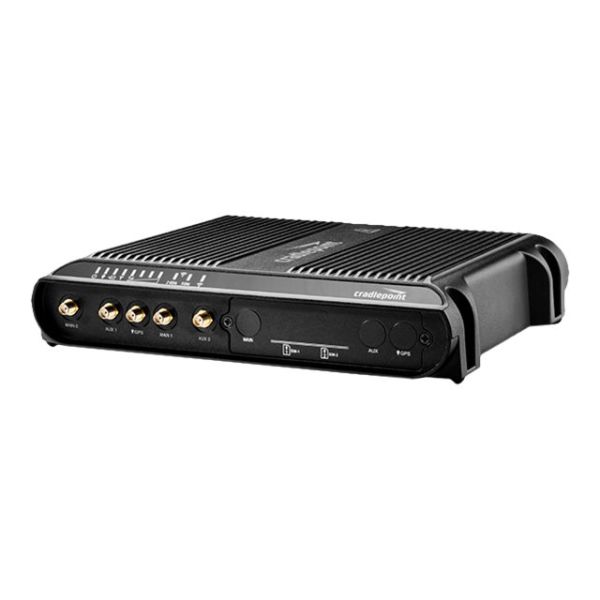

Cradlepoint COR IBR1700
The Cradlepoint IBR1700 Series Mobile Router is a ruggedized Gigabit-Class LTE networking platform with full-featured routing, security, and Wi-Fi. It is designed for persistent connectivity across a wide range of in-vehicle solutions used by first responders such as vehicles and mobile command centers, as well as mass transit, school buses, commercial truck fleets, and near-shore vessels. NetCloud Service is delivered in an all-in-one subscription included with the IBR1700. It is a complete cloud management platform providing specialized features for connecting, tracking, managing, and troubleshooting in-vehicle networks.
| General Information | |
|---|---|
| Category | Routers |
| Description | Cradlepoint COR IBR1700 - Wireless router - WWAN 1GbE - Wi-Fi 5 - Dual Band - with 5 years NetCloud Mobile Essentials Plan |
| Manufacturer | Panasonic |
| MSRP | $3,029.00 |
| UNSPSC | 43222609 |
| Main Specifications | |
| Dimensions & Weight / Depth | 19 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 1.7 kg |
| Dimensions & Weight / Width | 22.43 cm |
| Header / Brand | CradlePoint |
| Header / Country Kits | North America |
| Miscellaneous / Product Color | Black |
| Networking / Connectivity Technology |
|
| Networking / Data Link Protocol |
|
| Networking / Form Factor | Desktop |
| Networking / Type | Wireless router |
| Networking / Wireless Protocol | 802.11a/b/g/n/ac Wave 2 |
| Packaged Quantity | 1 |
| Communications | |
| Cellular Protocol | WCDMA, HSPA+, DC-HSPA+, LTE Advanced, FDD LTE, TDD LTE |
| Max Transfer Rate | 600 Mbps |
| Type | Wireless cellular modem |
| Dimensions & Weight | |
| Depth | 19 cm |
| Height | 4.4 cm |
| Weight | 1.7 kg |
| Width | 22.43 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -30 °C |
| Expansion / Connectivity | |
| Expansion Slots | SIM |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, Radio Service Set ID (SSID), TACACS+ |
| Built-in Devices | GPS, GLONASS, Beidou, Galileo |
| Bundled Services | 5 years NetCloud Mobile Essentials Plan |
| Compliant Standards | IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.11ac Wave 2, UL, cUL, CB, IC, FCC, RoHS, FIPS 140-2, EN 60950-1, MIL-STD 810G, IP64, WEEE, PTCRB, GCF, RoHS2, SAE J1455, ISO 7637-2 |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2 |
| Device Type | Wireless router |
| Enclosure Type | Desktop |
| Encryption Algorithm | FIPS 140-2, WPA2-Enterprise, IKEv2 |
| Features | Firewall protection, NAT support, VPN support, VLAN support, Syslog support, content filtering, MAC address filtering, IP address filtering, STP support, QoS, virtual server support, DHCP server, DNS proxy, port forwarding, reset button, DHCP relay, DHCP client, rugged, GRE tunneling, SMS remote control, Multicast Proxy support, 802.1x authentication, metal housing, DSCP support, MU-MIMO technology, DMZ support, dustproof, waterproof, DynDNS, 2x2 MIMO technology |
| Frequency Band | 2.4 GHz / 5 GHz |
| Network / Transport Protocol | L2TP, IPSec, DHCP, DNS, IPv6 |
| Remote Management Protocol | SNMP, CLI |
| Routing Protocol | OSPF, RIP, BGP, VRRP, NHRP, GRE, STP |
| Status Indicators | Power, signal strength, WAN, GPS, 5 GHz, 2.4 GHz, Wi-Fi |
| Line Properties | |
| Line Coding Format | 256 QAM |
| Miscellaneous | |
| Localization | North America |
| Power | |
| Power Consumption Operational | 24 watt |
| Voltage Required | DC 9 - 36 V |
