Cradlepoint COR IBR1100

Be the first to review this product

Availability: Out of stock

SKU

CP-IBR1100LPE-SP

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

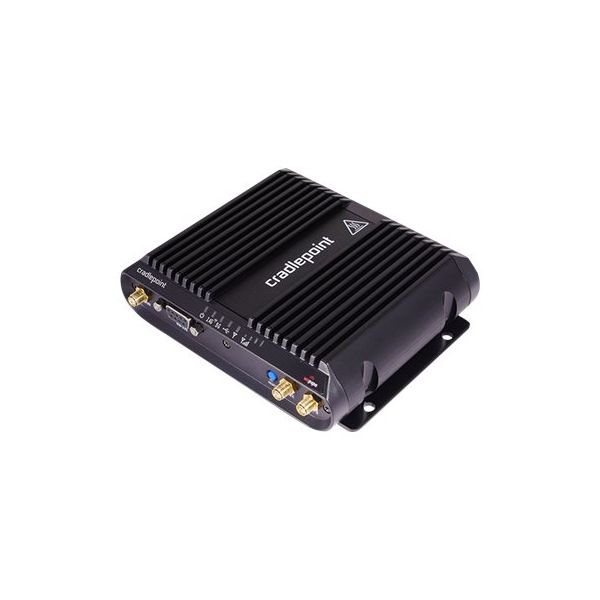

The Cradlepoint COR IBR1100 is a rugged, 4G Wi-Fi router with powerful connectivity features. Compact in size and with an enhanced protection casing, the Cradlepoint COR IBR1100 provides 4G mobile broadband primary connectivity for a wide range of industry applications, but lends itself particularly well to in-vehicle networks - including emergency services, fleet vehicles, and public transport. It features 802.11ac Wi'Fi, active GPS, and ignition sensing.

Specifications

General Information
Category	Routers
Description	Cradlepoint COR IBR1100 - Wireless router - WWAN - WAN ports: 3 - 802.11a/b/g/n/ac - Dual Band Sprint
Manufacturer	Panasonic
MSRP	$900.00
UNSPSC	43222609
Main Specifications
Dimensions & Weight / Depth	11.2 cm
Dimensions & Weight / Height	3.5 cm
Dimensions & Weight / Weight	457 g
Dimensions & Weight / Width	13.4 cm
Header / Brand	CradlePoint
Miscellaneous / Product Color	Black
Networking / Connectivity Technology	Wired Wireless
Networking / Data Link Protocol	Ethernet Fast Ethernet IEEE 802.11a IEEE 802.11ac IEEE 802.11b IEEE 802.11g IEEE 802.11n
Networking / Form Factor	Desktop
Networking / Type	Wireless router
Networking / Wireless Protocol	802.11a/b/g/n/ac
Packaged Quantity	1
Communications
Cellular Protocol	GSM, GPRS, UMTS, EDGE, CDMA 2000 1X EV-DO Rev. A, HSPA+, LTE
Max Transfer Rate	100 Mbps
Type	Wireless cellular modem
Dimensions & Weight
Depth	11.2 cm
Height	3.5 cm
Weight	457 g
Width	13.4 cm
Environmental Parameters
Humidity Range Operating	5 - 95% (non-condensing)
Max Operating Temperature	70 °C
Min Operating Temperature	-30 °C
Expansion / Connectivity
Interfaces	WAN / LAN: 3 x 10Base-T/100Base-TX - RJ-45 Management: 1 x 4 pin USB Type A Antenna: 2 x SMA Antenna: 2 x R-SMA
General
Authentication Method	Secure Shell (SSH)
Built-in Devices	GPS
Capacity	Concurrent IPSec VPN sessions: 5
Compliant Standards	IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, Wi-Fi CERTIFIED, IEEE 802.11n, UPnP, IEEE 802.11ac, UL, cUL, CB, FCC, RoHS, EN 60950-1, IP64, WEEE, E Mark
Connectivity Technology	Wireless, wired
Data Link Protocol	Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Device Type	Wireless router
Enclosure Type	Desktop
Encryption Algorithm	DES, Triple DES, MD5, AES, WPA2-Enterprise, 384-bit SHA-2, 256-bit SHA, 512-bit SHA-2
Features	DMZ port, NAT support, VPN support, VLAN support, SPI, content filtering, ALG support, dynamic DNS server, MAC address filtering, IPv6 support, VPN passthrough, URL filtering, IP address filtering, firmware upgradable, STP support, IPSec VPN, QoS, IPSec NAT-T, virtual server support, IPSec passthrough, DHCP server, DNS proxy, temperature sensor, port forwarding, WiPipe technology, 2T2R MIMO technology, DHCP relay, SPIF, DHCP client
Frequency Band	2.4 GHz / 5 GHz
Network / Transport Protocol	PPTP, L2TP, ICMP/IP, IPSec, SMTP, FTP, DNS, POP3, DDNS
Remote Management Protocol	SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI
Routing Protocol	OSPF, RIP, BGP, GRE
Service Provider	Sprint
Status Indicators	Power, signal strength, WLAN, link/activity
Power
Power Device	External power adapter
