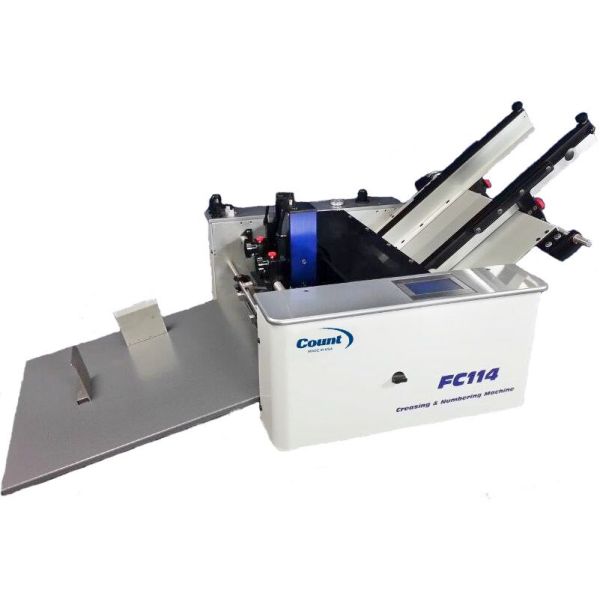

Count-FC114 – Digital Creasing, Perforating & Folding Machine
Count-FC114 – Digital Creasing, Perforating & Folding Machine
The FC114 is an all-in-one digital finishing machine designed for precision creasing, perforating, and folding of digitally printed or coated stocks. Built for efficiency, simplicity, and affordability, the FC114 is perfect for in-plant print shops, quick printers, and small commercial print operations. With its automated job setup, intuitive touchscreen interface, and friction or air-feed options, the FC114 enables quick turnaround on a wide range of finished products — from brochures and postcards to book covers and marketing materials. It helps eliminate toner cracking and ensures sharp, clean folds even on heavier stocks. The FC114 offers multiple fold styles and precision crease/perf placement with minimal operator involvement, making it a valuable asset for any small- to mid-volume digital print finishing workflow.
Count-FC114 – Digital Creasing, Perforating & Folding Machine
| Model Name | FC114 |
| Primary Functions | Creasing, Perforating, Folding |
| Feeding System | Friction Feed (Air Feed optional depending on model) |
| Control Interface | Touchscreen Display with Presets & Auto Setup |
| Max Sheet Speed | Up to 6,000–7,500 sheets/hour (depending on function) |
| Paper Weight Range | 80 – 350 gsm |
| Max Sheet Size | 25.5" x 18.0" (64.8 x 45.7 cm) |
| Min Sheet Size | 4.5" x 4.5" (11.4 x 11.4 cm) |
| Fold Types Supported | Bi-Fold, Tri-Fold, Z-Fold, Gate Fold, Double Parallel |
| Creasing/Perf Options | Adjustable Depth, Multiple Locations per Sheet |
| Batch Counting | Included |
| Memory Presets | Yes (Store/Recall Jobs) |
| Machine Dimensions | Approx. 60" x 25" x 40" (152 x 63.5 x 101.6 cm) |
| Weight | Approx. 200–250 lbs (90–113 kg) |
| Electrical Requirements | 110V or 230V, 50/60 Hz |
