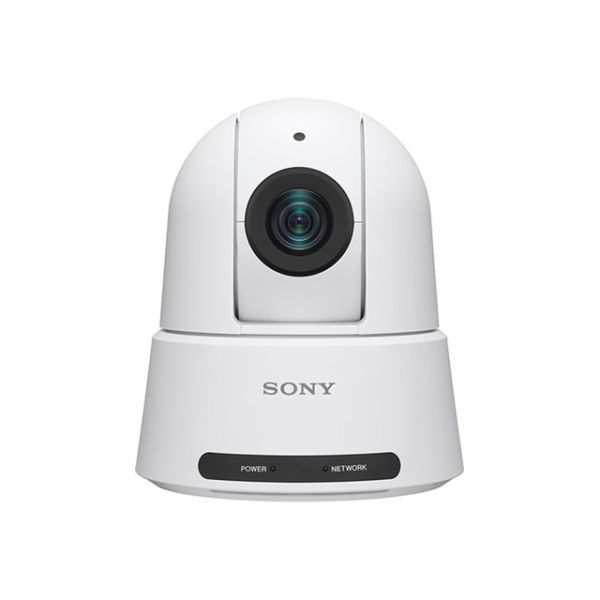

Sony SRG-A40 - Conference camera
| General Information | |
|---|---|
| Category | Video conference cameras |
| Description | Sony SRG-A40 - Conference camera - PTZ - turret - color (Day&Night) - 8.5 MP - 3840 x 2160 - auto iris - motorized - 1700 TVL - audio - HDMI, SDI - LAN - H.264, H.265 - PoE Plus Class 4 |
| Manufacturer | Sony |
| MSRP | $4,280.00 |
| UNSPSC | 45121506 |
| Main Specifications | |
| Dimensions & Weight / Depth | 20 cm |
| Dimensions & Weight / Height | 18.4 cm |
| Dimensions & Weight / Weight | 2 kg |
| Dimensions & Weight / Width | 15.67 cm |
| Header / Brand | Sony |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360 |
| Digital Video Format | H.264, H.265 |
| Digital Zoom | 80 |
| Exposure Range | 1/1 sec - 1/10000 sec |
| Features | Exposure control, white balance, 256 preset positions, PTZ Motion Sync, Constant Bitrate (CBR), Variable Bitrate (VBR), auto ICR, Visibility Enhancer, image stabilizer, image flip, Picture Setting File, Flicker Cancel, standby mode, remote standby, PTZ Auto Framing, tally light, AI-powered, Clear Image Zoom, Picture Freeze Preset |
| Frame Rate (max) | 59.94 frames per second |
| Horizontal Resolution (TV Lines) | 1700 |
| Max Digital Video Resolution | 3840 x 2160 |
| Minimum Illumination | 1.6 lux F2.0 - 50 IRE - shutter 1/30 sec |
| Type | Color - Day&Night - pan / tilt / zoom |
| Video Modes | 2160/29.97p, 2160/25p, 1080/59.94p, 1080/50p, 1080/30p, 1080/25p, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p, 2160/23.98p, 1080/23.98p |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Ports |
|
| General | |
| Audio Formats | AAC-LC |
| Audio Support | Yes: 2ch audio support |
| Camera Mount Type | Ceiling mount, surface mount |
| Connectivity Technology | Wired |
| Depth | 20 cm |
| Device Type | Conference camera |
| Form Factor | Turret |
| Height | 18.4 cm |
| Weight | 2 kg |
| Width | 15.67 cm |
| Image Sensor | |
| Type | 8.5 MP Exmor R CMOS 1/2.5" |
| Interfaces | |
| Control Interface | VISCA |
| Network Interface | LAN |
| Network Protocols | ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, IPv6, RTCP, RTP, RTSP, SRT, TCP/IP, UDP/IP, NDI HX |
| Video | HDMI, SDI |
| Lens Construction | |
| Focal Length | 4.4 mm - 88 mm |
| Focus Adjustment | Automatic, manual |
| Horizontal Field of View (degree) | 70 |
| Lens Iris | F/2.0-3.8 auto iris |
| Min Focus Distance | 8 cm |
| Optical Zoom | 20 x |
| Type | Motorized zoom |
| Miscellaneous | |
| Color | White |
| Compliant Standards | IEEE 802.3bt |
| Included Accessories | Power adapter, remote control, ceiling mount bracket, 9 screws M3x8, wire rope, screw M2.6x6, HDMI cable fixing plate |
| Panning | |
| Range (degree) | -170 to +170 |
| Speed (degree/sec) | Up to 300 |
| Power | |
| Power Device | Power adapter / PoE |
| Power Requirements | PoE Plus Class 4 |
| Tilting | |
| Range (degree) | -20 to +90 |
| Speed (degree/sec) | Up to 126 |
