Cisco UCS - DDR4 - module

Be the first to review this product

Availability: Out of stock

SKU

UCS-MR-X64G4RS-H=

UPC Code

882658959783

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

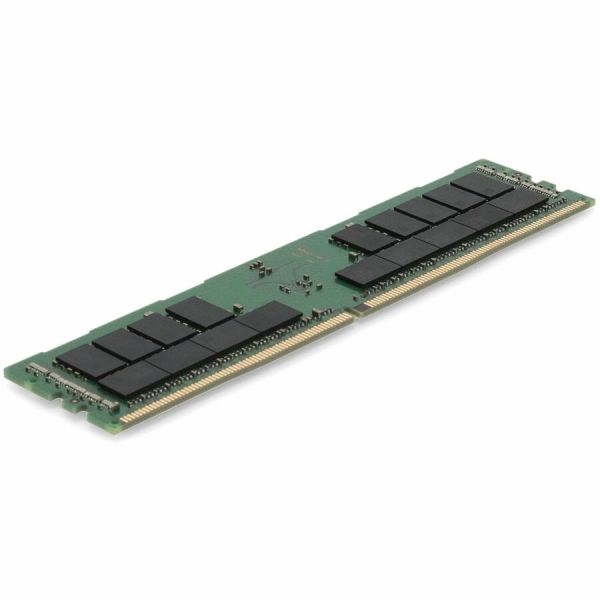

Cisco UCS - DDR4 - module - 64 GB - DIMM 288-pin - 2666 MHz / PC4-21300 - 1.2 V - registered - ECC - for UCS C125 M5, C220 M5, C240 M5, C240 M5L, C480, SmartPlay Select B200 M5

Specifications

General Information
Category	DRAM
Description	Cisco UCS - DDR4 - module - 64 GB - DIMM 288-pin - 2666 MHz / PC4-21300 - 1.2 V - registered - ECC - for UCS C125 M5, C220 M5, C240 M5, C240 M5L, C480, SmartPlay Select B200 M5
Manufacturer	Cisco Systems
MSRP	$7,802.52
UNSPSC	32101602
Main Specifications
Header / Brand	Cisco
Miscellaneous / OEM Manufacturer Equivalent Part Number	Cisco UCS-MR-X64G4RS-H
Packaged Quantity	1
RAM / Data Integrity Check	ECC
RAM / Form Factor	DIMM 288-pin
RAM / Memory Specification Compliance	PC4-21300
RAM / Memory Speed	2666 MHz
RAM / Registered or Buffered	Registered
RAM / Technology	DDR4 SDRAM
RAM / Type	DRAM
RAM / Upgrade Type	System specific
Compatibility Information
Designed For	Cisco UCS B480 M5 Blade Server, C125 M5, C220 M5 LFF, C220 M5SN SFF, C240 M5 LFF Rack Server, C240 M5 LFF Rack Server (Tracer), C240 M5 Rack Server for Microsoft Azure Stack, C240 M5 SFF Rack Server, C240 M5L Rack Server for Microsoft Azure Stack, C480 M5 Standard Base Chassis, C480 ML M5, SmartPlay Select B200 M5 (Not sold standalone), SmartPlay Select B200 M5 Advanced 3, SmartPlay Select B200 M5 Advanced 4 (Tracer), SmartPlay Select B200 M5 Basic 1, SmartPlay Select B200 M5 Basic 1 (Tracer), SmartPlay Select B200 M5 High Frequency 2, SmartPlay Select B200 M5 High Frequency 3, SmartPlay Select B200 M5 High Frequency 3 (Tracer), SmartPlay Select B200 M5 Standard 1 (Tracer), SmartPlay Select C220 M5 High Core 1, SmartPlay Select C220 M5 Standard 1, SmartPlay Select C220 M5S Basic 1 (Tracer), SmartPlay Select C220 M5SX Advanced 2, SmartPlay Select C220 M5SX Advanced 2 (Tracer), SmartPlay Select C220 M5SX Advanced 3, SmartPlay Select C220 M5SX Advanced 4, SmartPlay Select C220 M5SX Advanced 5, SmartPlay Select C220 M5SX Basic 1, SmartPlay Select C220 M5SX Basic 2, SmartPlay Select C220 M5SX Basic 3, SmartPlay Select C220 M5SX Basic 4, SmartPlay Select C220 M5SX Expansion Pack 2, SmartPlay Select C220 M5SX High Core 2, SmartPlay Select C220 M5SX Standard 2 (Tracer), SmartPlay Select C220 M5SX Standard 3, SmartPlay Select C220 M5SX Standard 4, SmartPlay Select C240 M5 Standard 1, SmartPlay Select C240 M5L High Frequency 1, SmartPlay Select C240 M5L High Frequency 2, SmartPlay Select C240 M5L Standard 1, SmartPlay Select C240 M5L Standard 2, SmartPlay Select C240 M5L Standard 3, SmartPlay Select C240 M5L Standard 4, SmartPlay Select C240 M5SX Advanced 1, SmartPlay Select C240 M5SX High Frequency 2, SmartPlay Select C240 M5SX Standard 2, SmartPlay Select C240 M5SX Standard 3, SmartPlay Select C240 M5SX Standard 4, SmartPlay Select C240 M5SX Standard 5, SmartPlay Select C240 M5SX Standard 6
General
Capacity	64 GB
OEM Manufacturer Equivalent Part Number	Cisco UCS-MR-X64G4RS-H
Upgrade Type	System specific
Memory
Chips Organization	X4
Data Integrity Check	ECC
Features	Quad rank, Through Silicon Via (TSV) technology, registered
Form Factor	DIMM 288-pin
Speed	2666 MHz (PC4-21300)
Technology	DDR4 SDRAM
Type	DRAM memory module
Voltage	1.2 V
