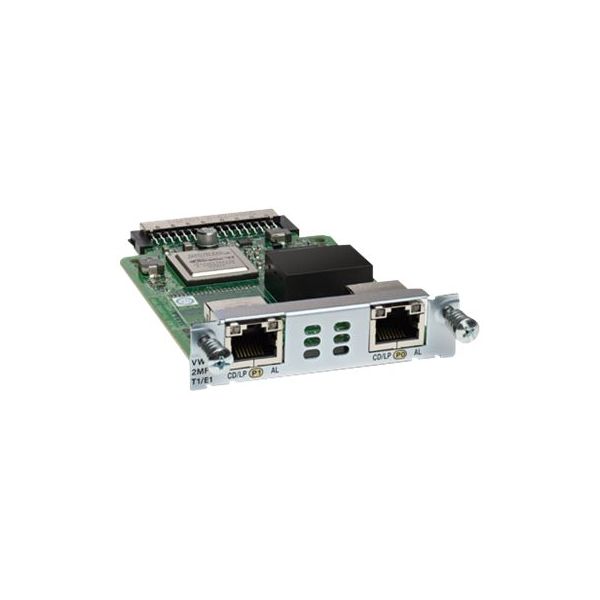

Cisco Third-Generation 2-Port G.703 Multiflex Trunk Voice/WAN Interface Card

Cisco Third-Generation 2-Port G.703 Multiflex Trunk Voice/WAN Interface Card

Be the first to review this product
Availability: Out of stock
SKU
VWIC3-2MFT-G703
Compare with Similar items
Request a Quote
Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transactionsecure transaction
Add to Wish List Add to Compare
Details
The flexible interface cards support multiple integrated data, voice and video applications, facilitating the migration from data only as well as circuit-switched voice/video services to a packet voice/video solution The Cisco 2-port G.703 MFT VWIC3 versions act as a WIC, supporting T1, fractional T1, E1, fractional E1, and unstructured E1 (G.703) applications. To simplify remote management, the G.703 version includes a fully managed DSU. The G.703 versions also support all the capabilities on the T1/E1 versions.
Specifications
General Information
CategoryNetwork interface cards
DescriptionCisco Third-Generation 2-Port G.703 Multiflex Trunk Voice/WAN Interface Card - Expansion module - EHWIC - 2 ports - T-1/E-1 - for Cisco 1921, 1921 4-pair, 1921 ADSL2+, 1921 T1, 1941, 2901, 2911, 2921, 2951, 3925, 3945
ManufacturerCisco Systems
MSRP$4,600.00
UNSPSC43201404
Main Specifications
Dimensions & Weight / Depth12 cm
Dimensions & Weight / Height1.9 cm
Dimensions & Weight / Weight86 g
Dimensions & Weight / Width7.8 cm
Header / BrandCisco
Networking / Connectivity TechnologyWired
Networking / Data Transfer Rate2.048 Mbps
Networking / TypeExpansion module
Packaged Quantity1
Compatibility Information
Designed ForCisco 1921, 1921 4-pair G.SHDSL bundle, 1921 ADSL2+ Annex M Bundle, 1921 ADSL2+ Bundle, 1921 SEC T1 Bundle, 1921 T1 Bundle, 1941, 1941 Mobile Wireless, 1941 Secure WAAS Bundle, 1941 Security, 1941 Security Bundle, 1941 SRE Bundle, 1941 WAAS Bundle, 2901, 2901 Secure WAAS Bundle, 2901 Security Bundle, 2901 SRE Bundle, 2901 Terminal Server Bundle, 2901 Voice Bundle, 2901 Voice Security and CUBE Bundle, 2901 Voice Security Bundle, 2901 WAAS Bundle, 2911, 2911 Secure WAAS Bundle, 2911 Security Bundle, 2911 SRE Bundle, 2911 UCSE Bundle, 2911 Voice Bundle, 2911 Voice Security and CUBE Bundle, 2911 Voice Security Bundle, 2911 WAAS Bundle, 2921, 2921 Secure WAAS Bundle, 2921 Security Bundle, 2921 SRE Bundle, 2921 Voice Bundle, 2921 Voice Security and CUBE Bundle, 2921 Voice Security Bundle, 2921 WAAS Bundle, 2951, 2951 Secure WAAS Bundle, 2951 Security Bundle, 2951 SRE Bundle, 2951 UCSE Bundle, 2951 Voice Bundle, 2951 Voice Security and CUBE Bundle, 2951 Voice Security Bundle, 2951 WAAS Bundle, 3925, 3925 PSRE Bundle, 3925 Security Bundle, 3925 SRE Bundle, 3925 Voice Bundle, 3925 Voice Security and CUBE Bundle, 3925 Voice Security Bundle, 3925 WAAS Bundle, 3925E, 3925E Security Bundle, 3925E SRE Bundle, 3925E Voice Bundle, 3925E Voice Security and CUBE Bundle, 3925E Voice Security Bundle, 3945, 3945 PSRE Bundle, 3945 Security Bundle, 3945 SRE Bundle, 3945 Voice Bundle, 3945 Voice Security and CUBE Bundle, 3945 Voice Security Bundle, 3945 WAAS Express Bundle, 3945E, 3945E Security Bundle, 3945E SRE Bundle, 3945E Voice Bundle, 3945E Voice Security and CUBE Bundle, 3945E Voice Security Bundle
Dimensions & Weight
Depth12 cm
Height1.9 cm
Weight86 g
Width7.8 cm
Environmental Parameters
Humidity Range Operating5 - 85%
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Compatible Slots1 x EHWIC
Interfaces1 x T1/E1
General
Device TypeExpansion module - 2 ports
Form FactorPlug-in module
Interface (Bus) TypeEHWIC
Miscellaneous
Compliant StandardsCISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, AS/NZ 3548 Class A, CSA C22.2 No. 60950-00, ICES-003 Class A, CS-03, EN 61000-4-5, EN 61000-6-2, EN 61000-4-11, FCC CFR47 Part 15, EN 61000-4-8, IEC 60950-1, EN 60950-1
Networking
Connectivity TechnologyWired
Data Transfer Rate2.048 Mbps
FeaturesIntegrated CSU/DSU
Line Coding FormatAMI, B8ZS, HDB3
Line RateT-1/E-1
Remote Management ProtocolSNMP, Telnet
Status IndicatorsCarrier detect, alarm
