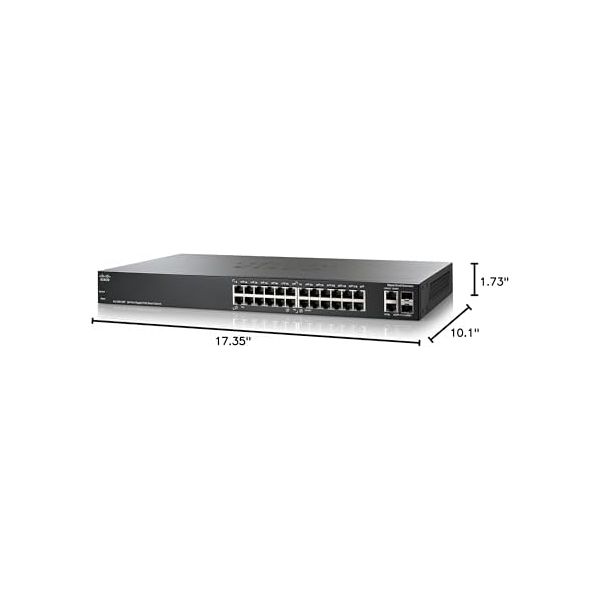

Cisco Small Business Smart SG200-26FP

Be the first to review this product

Availability: Out of stock

SKU

SG200-26FP-CN

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

Cisco small business 200 series smart switches combine powerful network performance with reliability to help you build a basic business network. Affordable and easy to use, these entry-level, web-managed switches deliver the essential network features you need. Enjoy speedy file transfers, keep vital business applications available, and help your employees respond faster to customers and each other.

Specifications

General Information
Category	Network switches
Description	Cisco Small Business Smart SG200-26FP - Switch - managed - 24 x 10/100/1000 (PoE) + 2 x combo Gigabit SFP - desktop, rack-mountable - PoE (180 W)
Manufacturer	Cisco Systems
UNSPSC	43222612
Main Specifications
Dimensions & Weight / Depth	25.7 cm
Dimensions & Weight / Height	4.4 cm
Dimensions & Weight / Weight	3.82 kg
Dimensions & Weight / Width	44 cm
Header / Brand	Cisco
Header / Country Kits	China
Networking / Form Factor	Desktop Rack-mountable
Networking / Ports Qty	26
Networking / Type	Switch
Packaged Quantity	1
Service & Support / Type	Limited lifetime warranty
Dimensions & Weight
Depth	25.7 cm
Height	4.4 cm
Weight	3.82 kg
Width	44 cm
Environmental Parameters
Humidity Range Operating	10 - 90% (non-condensing)
Humidity Range Storage	10 - 90% (non-condensing)
Max Operating Temperature	45 °C
Max Storage Temperature	70 °C
Min Operating Temperature	0 °C
Min Storage Temperature	-20 °C
Expansion / Connectivity
Interfaces	24 x 1000Base-T RJ-45 PoE - 15.4 W 2 x 1000Base-T RJ-45 2 x 1000Base-X SFP
General
Authentication Method	RADIUS
Capacity	Virtual interfaces (VLANs): 16
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x
Device Type	Switch - 26 ports - managed
Enclosure Type	Desktop, rack-mountable 1U
Encryption Algorithm	MD5
Features	Layer 2 switching, DHCP support, PoE, BOOTP support, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, WRR queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, SNTP support, STP support, TFTP support, QoS, Jumbo Frames support, MLD snooping
Flash Memory	16 MB
Jumbo Frame Support	10KB
MAC Address Table Size	8000 entries
Performance	Forwarding performance (64-byte packet size): 38.69 Mpps Switching capacity: 52 Gbps
PoE Budget	180 W
Ports	24 x 10/100/1000 (PoE) + 2 x combo Gigabit SFP
Power Over Ethernet (PoE)	PoE
RAM	128 MB
Remote Management Protocol	SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, TFTP
Status Indicators	Port transmission speed, system, PoE, link/activity
Subtype	Gigabit Ethernet
Manufacturer Warranty
Service & Support	Limited warranty - lifetime Technical support - web support - 1 year Technical support - phone consulting - 1 year
Miscellaneous
Compliant Standards	UL 60950, FCC Part 15 A, CSA 22.2
Localization	China
Power
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
