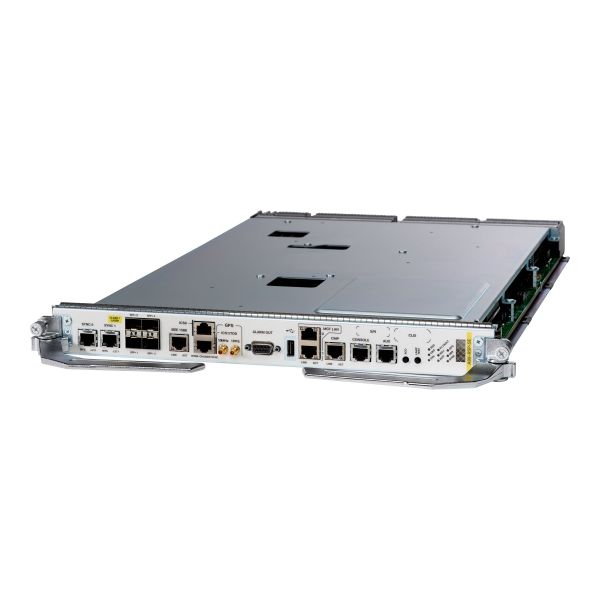

Cisco Route Switch Processor for Service Edge
Control plane and data plane elements. The Cisco Route Switch Processor (RSP) is the powerful centralized engine that provides these features and more for Cisco routers. The Cisco RSP is designed to address the requirements of converged service provider networks - from Carrier Ethernet technologies to advanced services such as Multiprotocol Label Switching (MPLS). It helps providers add innovative traffic management and intelligent packet switching and routing features. The Cisco RSP module contains separate control plane and data plane components. These include the main control plane CPU for the operating system and platform control software. The data plane packet processing and traffic management is performed by the Cisco Carrier Ethernet application-specific integrated circuit (ASIC).
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | Cisco Route Switch Processor for Service Edge - Control processor - remanufactured - plug-in module - for P/N: ASR-9906, ASR-9906=, ASR-9906-LS-BUN, ASR-9906-TH-BUN, ASR-9910-LS-BUN, ASR-9910-RF |
| Manufacturer | Cisco Systems |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 62.56 cm |
| Dimensions & Weight / Height | 4.42 cm |
| Dimensions & Weight / Weight | 8.09 kg |
| Dimensions & Weight / Width | 40.34 cm |
| Header / Brand | Cisco |
| Miscellaneous / Product Color | Gray |
| Networking / Connectivity Technology | Wired |
| Networking / Form Factor | Plug-in module |
| Networking / Type | Control processor |
| Packaged Quantity | 1 |
| Compatibility Information | |
| Designed For | P/N: ASR-9906, ASR-9906=, ASR-9906-LS-BUN, ASR-9906-TH-BUN, ASR-9910, ASR-9910=, ASR-9910-LS-BUN, ASR-9910-RF, ASR-9910-TH-BUN |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Depth | 62.56 cm |
| Device Type | Control processor |
| Height | 4.42 cm |
| Weight | 8.09 kg |
| Width | 40.34 cm |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, EN 61000-3-2, EN55022, IEC 61000-3-2, EN55024, EN50082-1, EN 61000-6-1, ACA TS001, ICES-003 Class A, FDA, AS/NZS 3548 Class A, BSMI Class A, AS/NZS 60950, EN 50121-4, GR-1089-CORE, VCCI Class A, GR-63-CORE, IEC/UL/CSA/EN 60950-1, EN 300 386, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN 55022/CISPR 22 Class A, SR-3580 NEBS Level 3, ETSI 300 019-2-3, ETSI 300 019-1-1, ETSI 300 019-3-1, IEC/EN 61000-3-3, IEC/EN 60825 |
| Pricing Type | Remanufactured |
| Networking | |
| Compliant Standards | IEEE 1588-2008 |
| Connectivity Technology | Wired |
| Features | Non-Stop Routing (NSR), Virtual Routing and Forwarding (VRF), Precision Time Protocol (PTP) |
| Form Factor | Plug-in module |
| Performance | Switching capacity: 12 Tbps |
| Routing Protocol | Bidirectional Forwarding Detection (BFD) |
| Status Indicators | Status |
| Processor / Memory / Storage | |
| Flash Memory | 8 GB |
| Hard Drive | SSD 32 GB x 2 |
| Processors Installed | 1.9 GHz |
| RAM | 32 GB |
